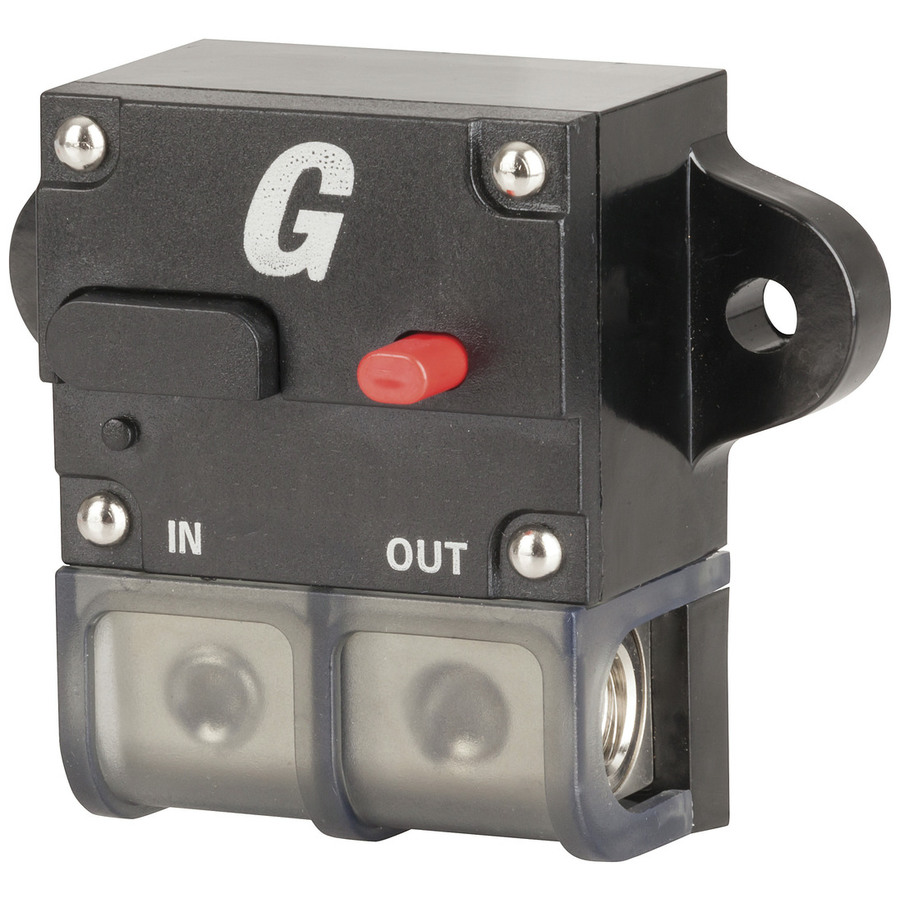

200 Amp Panel Mount Circuit Breaker
200 Amp Panel Mount Circuit Breaker

CAT. No. SZ2085

200 Amp Panel Mount Circuit Breaker
product image thumb

200 Amp Panel Mount Circuit Breaker

$59.95
A high quality, heavy duty 12V or 24V panel mount circuit breaker rated to 200 amps. Comes with a cover and connects via screw terminals to your circuit.
Available

Description

A heavy duty and high quality panel mount circuit breaker. The reset switch is high grade and will not fail in a short period unlike other units in the market. It has a protective plastic cover to prevent accidental shortage. Incorporates multi-wire gauge inputs and outputs, perfect for high end car audio installations, automotive wiring or solar installations. Terminals are platinum plated.

Features:

• 200A Maximum Current
• Trip-free Operation
• Built-in Brass Block
• Switchable / Manual Push-To-Trip Operation
• Visible Trip Indication
• Visible Trip / Circuit Breaker Button
• Not IP Rated

Other Models Available:

• SZ2081 - 60A Version
• SZ2083 - 120A Version


    Specifications

    Product Dimensions

    Height
    		 68mm
    Width
    		 85mm
    Depth
    		 35mm

    Packaged Dimensions

    Packaged Length
    		 14.9cm
    Packaged Width
    		 14cm
    Packaged Weight
    		 0.206kg
    Packaged Volume
    		 1.08472l
    Packaged Height
    		 5.2cm

    Circuit Breakers

    Circuit Breaker Current
    		 200A
    Circuit Breaker Type
    		 High current
    Circuit Breaker Pole Count
    		 1 pole
    Circuit Breaker DC Voltage
    		 12V

    Product Availability

    Availability
    		 Stocked item
