1 Year Warranty

This outstanding new soldering station uses a proven technology, Curie point temperature sensing with a new twist. The tip is heated by RF induction to bring the tip up to operating temp. The soldering iron tip is a heater. Older Curie point soldering irons like the famous Weller W-TCP used a separate Curie-switch, heater and tip. There are thermocouples, varistors or other temp sensors that only complicate things. The thermal inertia with the Thermaltronics product  is far lower.

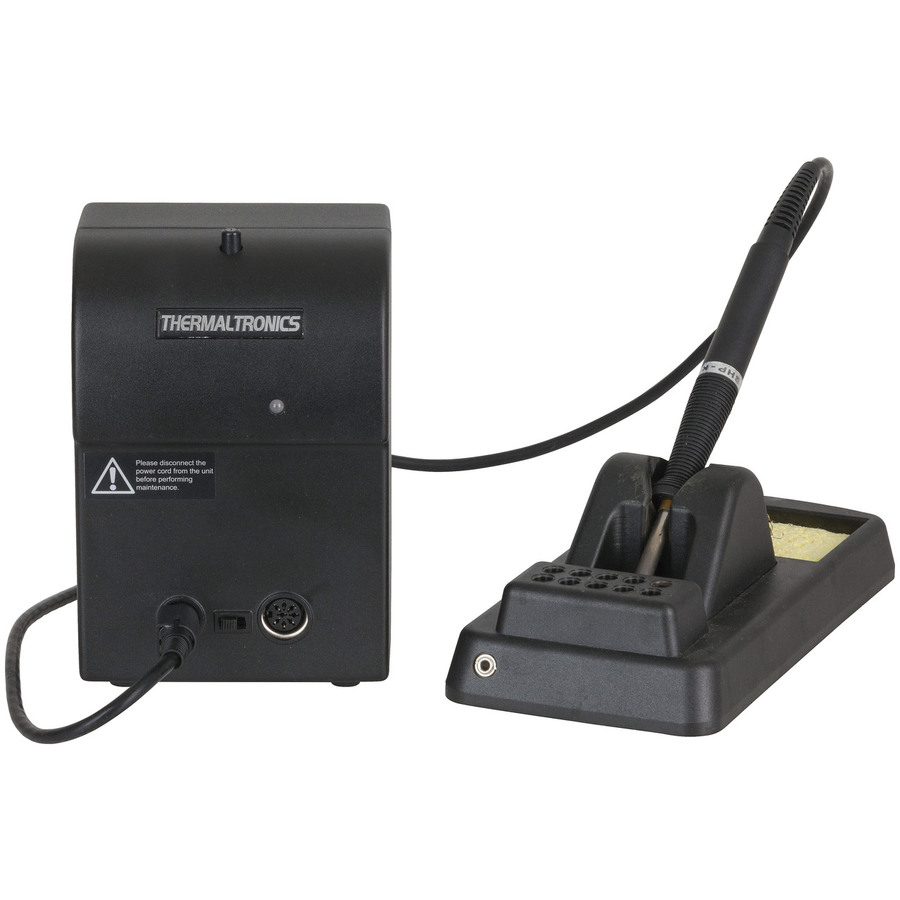

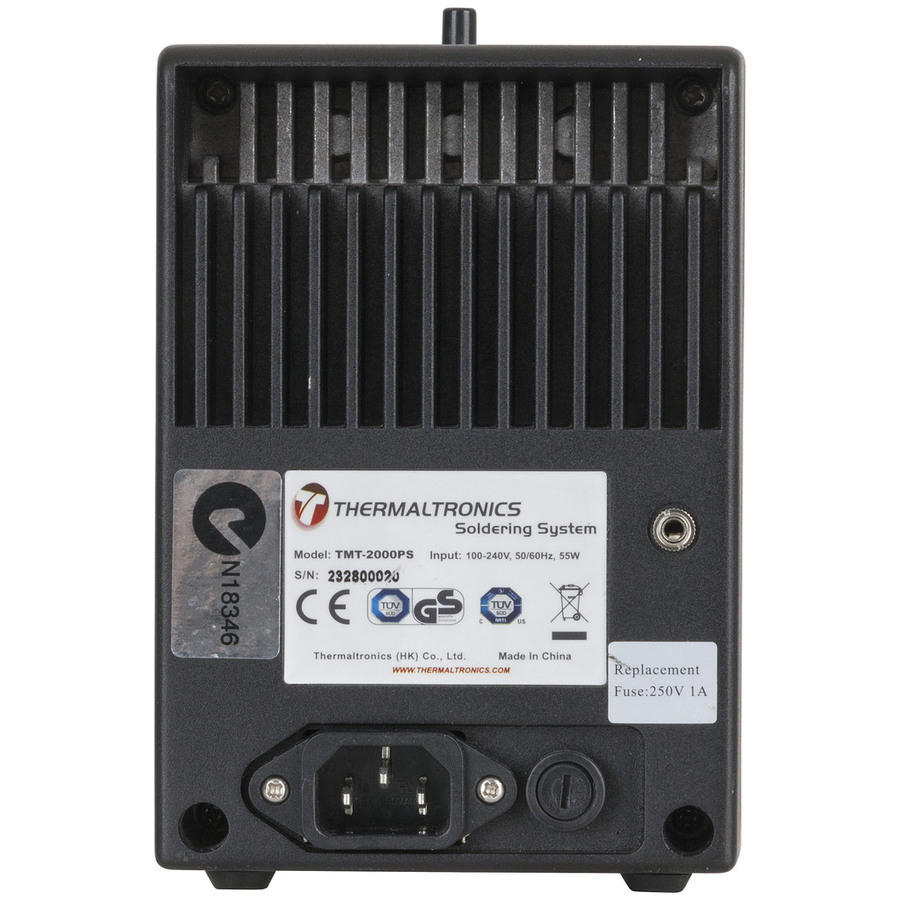

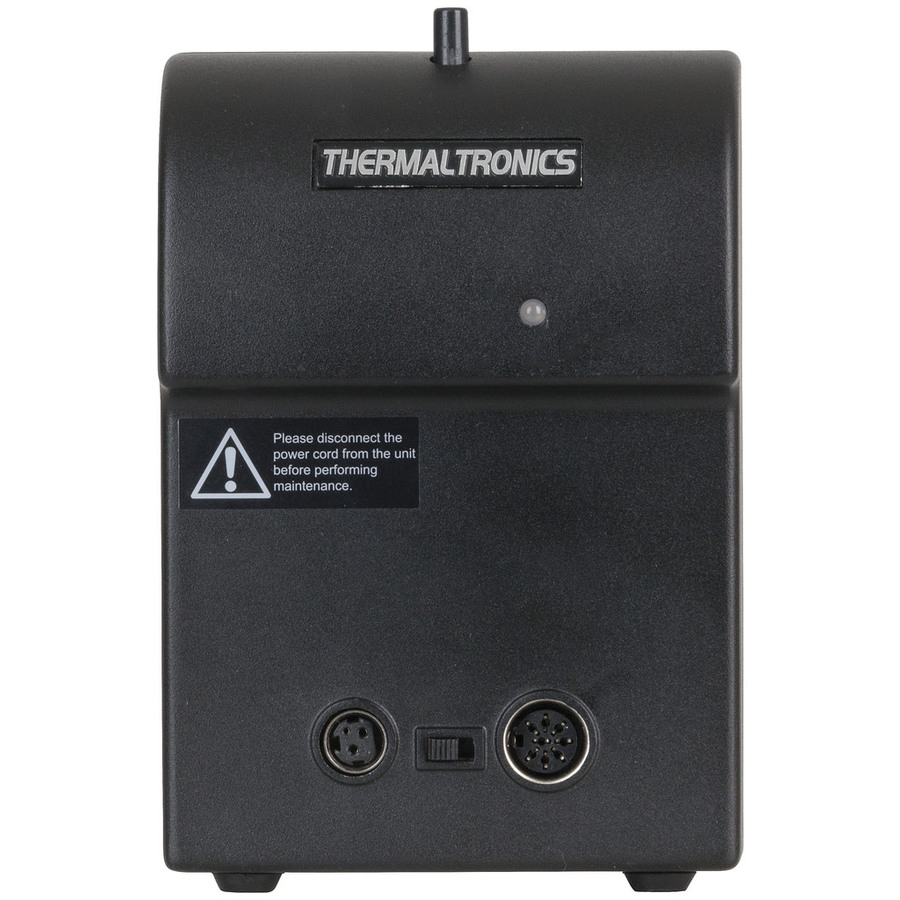

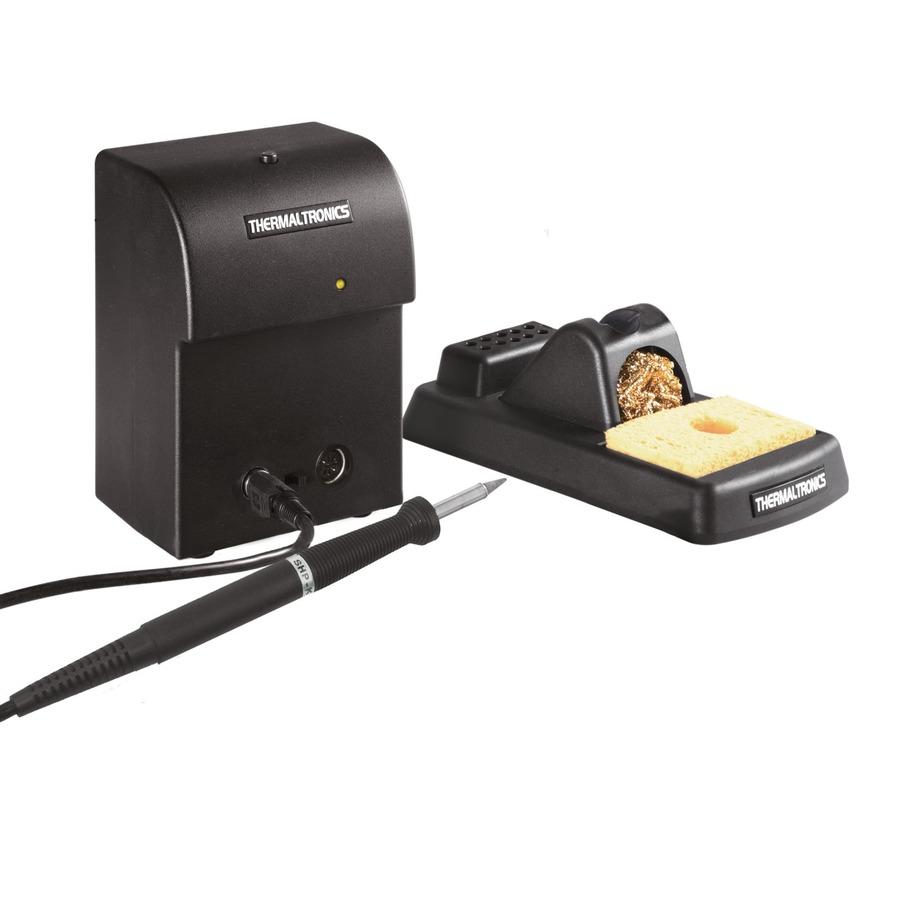

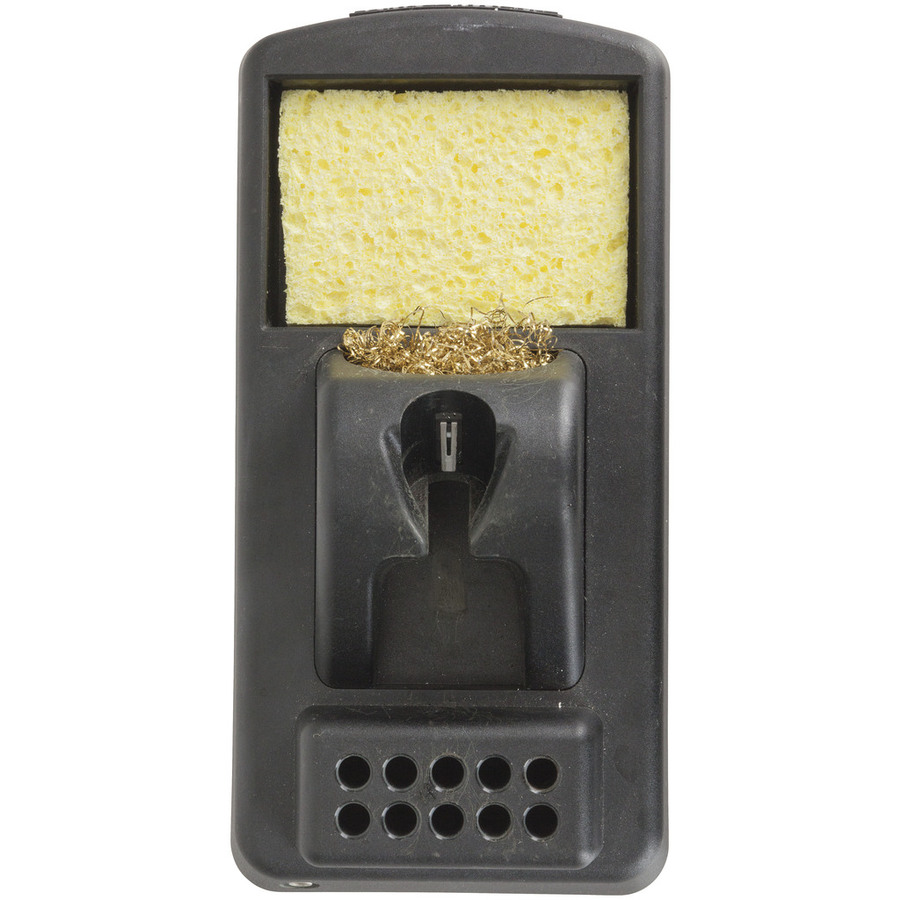

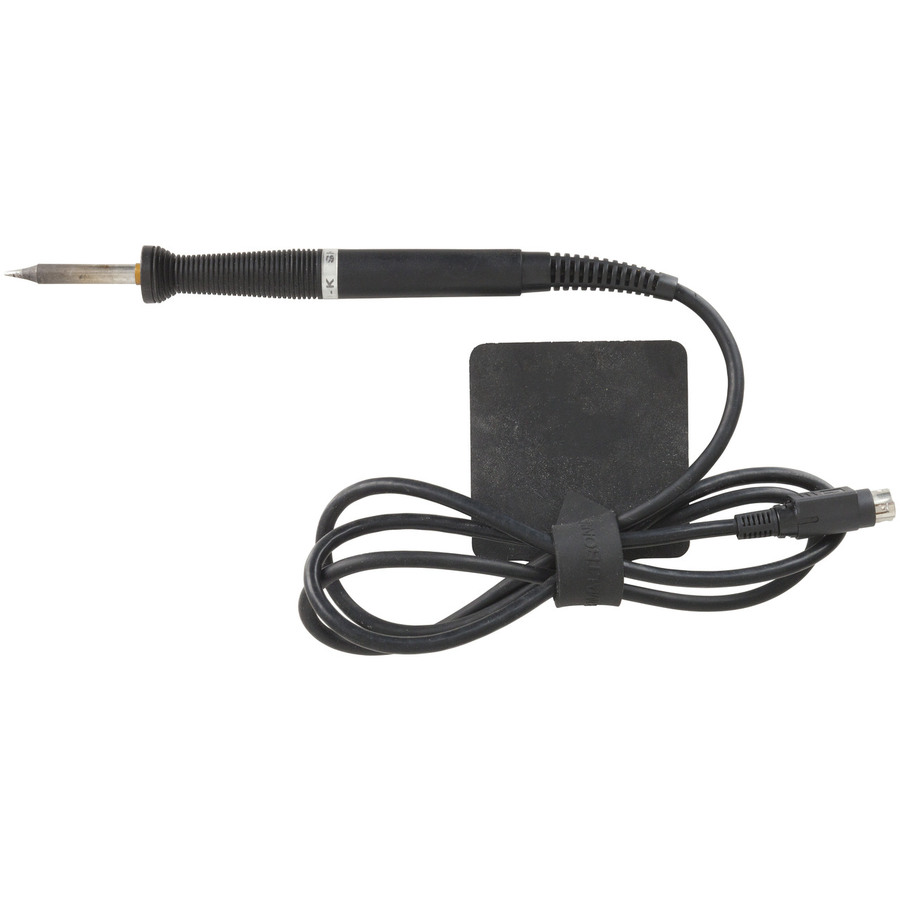

The system consists of the base power unit which connects to mains 240V. The soldering pencil accepts a cartridge tip (which is also the heating element) and a burn-proof silicon rubber cord. The third element in the system is the pencil iron stand. This stand features a ‘dry’-type  tip cleaner which is made from machine curled brass and also a standard sulphide free tip sponge.

Other Features / Specifications:
·    Low power idle
·    Under 10 second heat-up
·    Rapid recovery from soldering load. No overshoot
·    No calibration needed
·    Can work leaded and unleaded solder


Soldering Iron:

Tip to GND Resistance: <2 Ohms DC
Tip to GND Potential: 2mW, true RMS 50 - 500Hz


TIPS TO SUIT:

TS-1586: 0.5mm Conical Sharp Tip
Tip Width: 0.50mm (0.02”)
Tip Length: 11.80mm (0.41”)

TS-1587: 1.0mm Conical Sharp Tip
Tip Width: 1.0m (0.04”)
Tip Length: 14.40mm (0.57”)

TS-1588: 2.5mm Chisel Tip
Tip Style: Chisel 30 degrees
Tip Width: 2.5mm (0.10”)
Tip Length: 10.30mm (0.41”)

Brand: Thermaltronis
