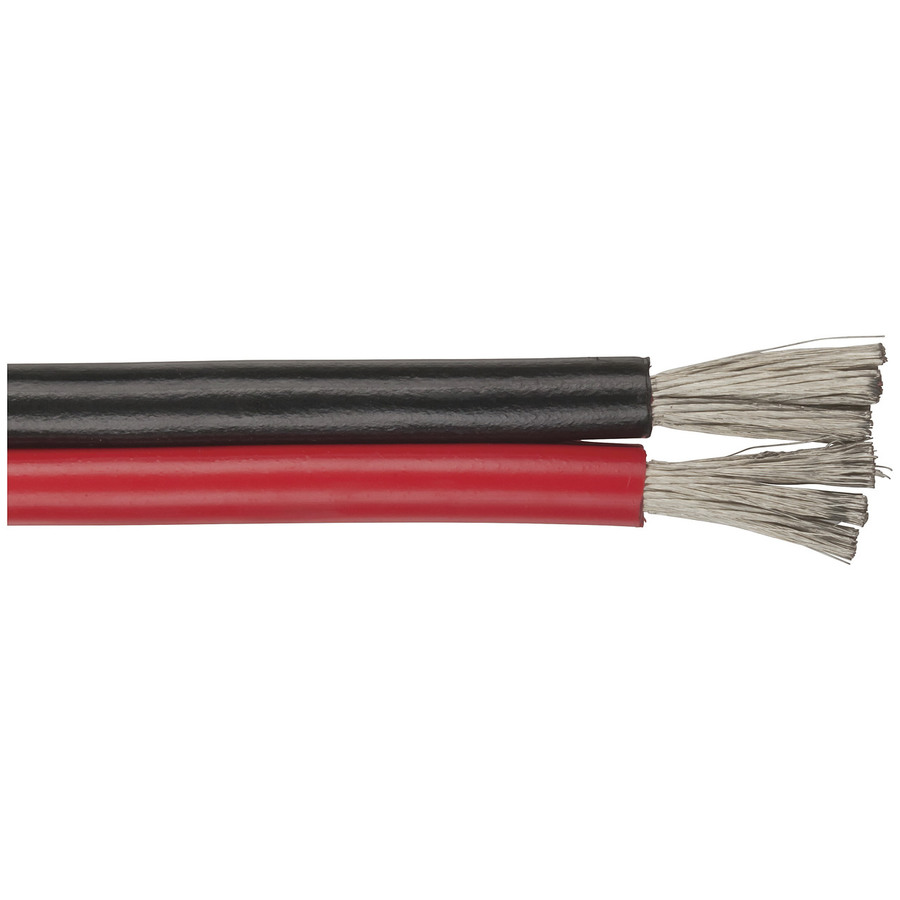

6 Gauge Figure 8 Power Cable - Sold per metre
6 Gauge Figure 8 Power Cable - Sold per metre

CAT. No. WH3067

6 Gauge Figure 8 Power Cable - Sold per metre
product image thumb

6 Gauge Figure 8 Power Cable - Sold per metre

$19.95
Ideal for just about any low-voltage high-current application.
Available

Description

1 Year Warranty

Ideal for just about any low-voltage high-current application. Rated Current: 60A (Constant), 80 A for under 300 minutes).

Specifications:
• Insulation: PVC
•Max temp.: 80°C
•DC Current Rating: 80A Peak (under 300 minutes) 60A constant


    Specifications

    Wire and Cable

    Individual Conductor Strand Diameter
    		 0.12mm
    Resistance per Linear Metre
    		 1.3m?
    UV Resistant Cable
    Conductor Overall Diameter
    		 4.11mm
    Oil Resistant Wire
    Strand Weave Configuration
    		 7x7x24
    Number of Conductor Strands
    		 1176pc
    Outer Diameter
    		 8.5mm
    AWG
    		 6
    Halogen Free Wire
    Core Material
    		 Tin Plated Copper
    Number of Conductor Cores
    		 2pc
    Roll Length
    		 50m
    Wire Category
    		 hook up / power
    OFC wire
    Retail Sales Unit
    		 Metre
    Cross Sectional Area
    		 13.3mm²
    Twisted Cores

    Product colour

    Alternates available
    Colour
    		 Red

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 100cm
    Packaged Width
    		 1.8cm
    Packaged Weight
    		 0.34424kg
    Packaged Volume
    		 0.162l
    Packaged Height
    		 0.9cm
    Warranty: 12 Months
