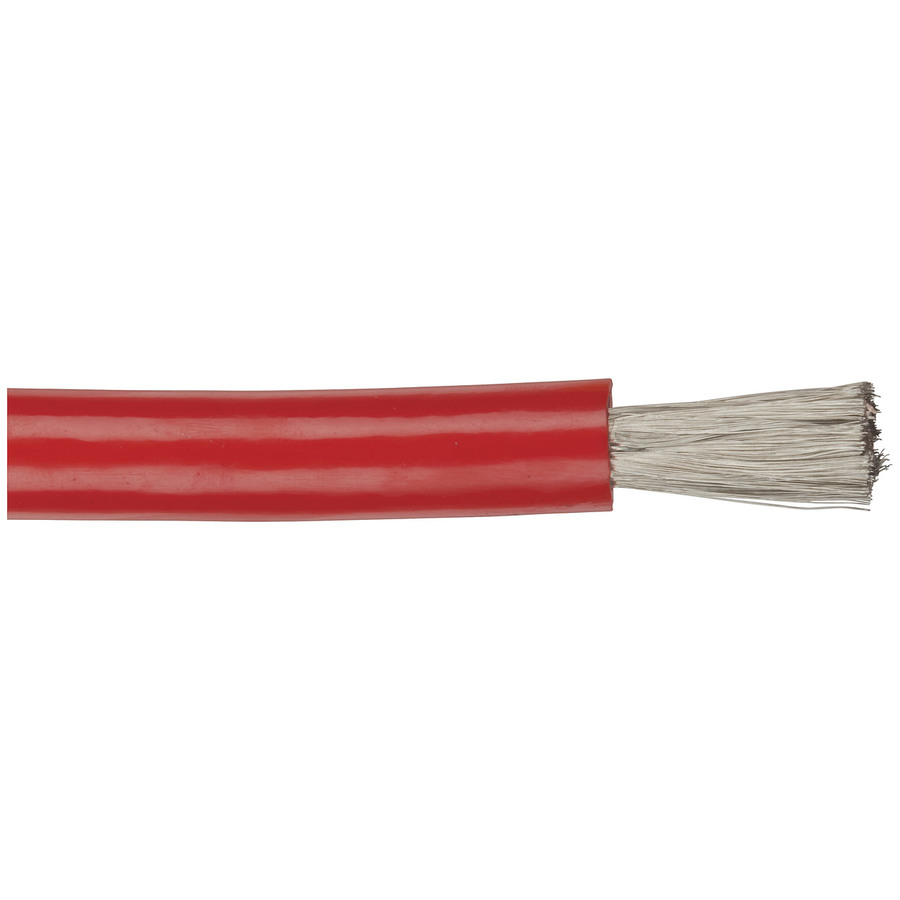

Red 2G Car Power Cable - Sold per metre
Red 2G Car Power Cable - Sold per metre

CAT. No. WH3070

Red 2G Car Power Cable - Sold per metre
product image thumb

Red 2G Car Power Cable - Sold per metre

$24.95
Available in Red and Black. Run this from your car battery to distribution boxes and then 8GA or 4GA to amps, etc.* Conductor Material:OFC* Insulation...

Out of Stock

Description

Available in Red and Black. Run this from your car battery to distribution boxes and then 8GA or 4GA to amps, etc.


* Conductor Material:OFC
* Insulation Material: PVC


    Specifications

    Packaged Dimensions

    Packaged Length
    		 100cm
    Packaged Width
    		 1.3cm
    Packaged Weight
    		 0.398kg
    Packaged Volume
    		 0.169l
    Packaged Height
    		 1.3cm

    Wire and Cable

    Individual Conductor Strand Diameter
    		 0.12mm
    Resistance per Linear Metre
    		 0.63m?
    UV Resistant Cable
    Conductor Overall Diameter
    		 8.3mm
    Oil Resistant Wire
    Strand Weave Configuration
    		 145 x 19
    Number of Conductor Strands
    		 2755pc
    Outer Diameter
    		 13mm
    AWG
    		 2
    Halogen Free Wire
    Core Material
    		 Tin Plated Copper
    Number of Conductor Cores
    		 1pc
    Roll Length
    		 30m
    Wire Category
    		 hook up / power
    OFC wire
    Retail Sales Unit
    		 Metre
    Cross Sectional Area
    		 31mm²
    Twisted Cores

    Product colour

    Alternates available
    Colour
    		 Red

    DC Current Rating

    DC current rating
    		 150A

    Product Availability

    Availability
    		 Stocked item

    Downloads

    N/A
