30m Roll 15A Twin Core Power Cable
30m Roll 15A Twin Core Power Cable
30m Roll 15A Twin Core Power Cable

CAT. No. WH3077

30m Roll 15A Twin Core Power Cable
product image thumb
product image thumb

30m Roll 15A Twin Core Power Cable

$99.95

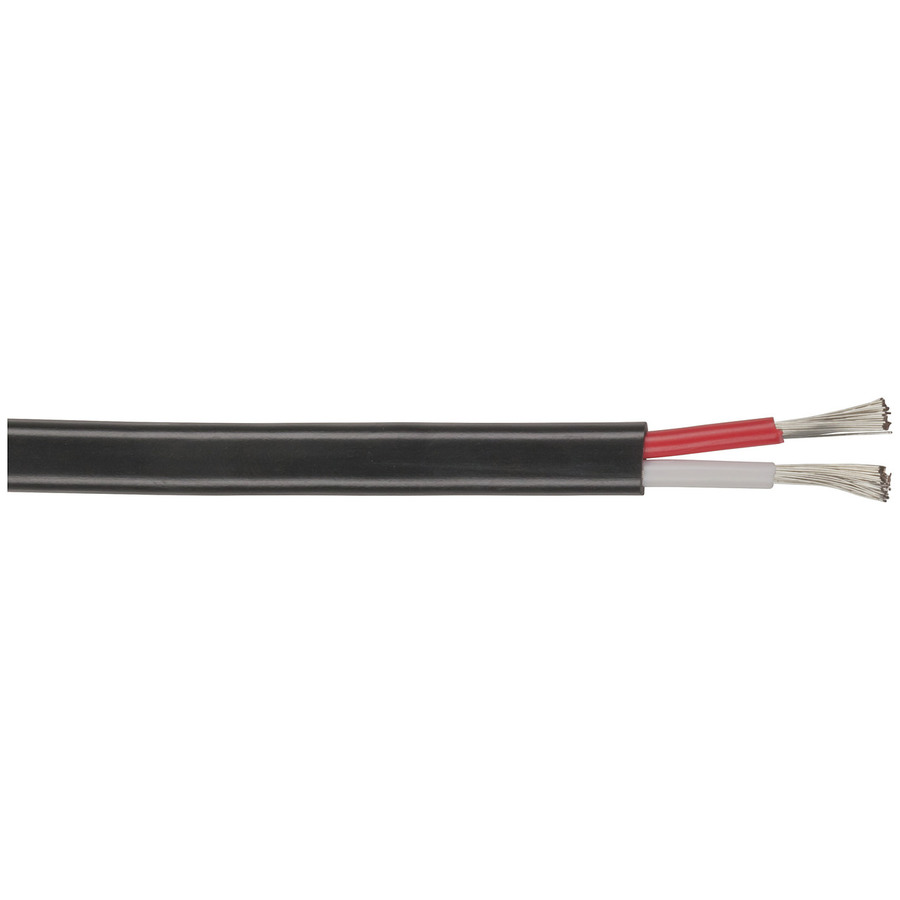

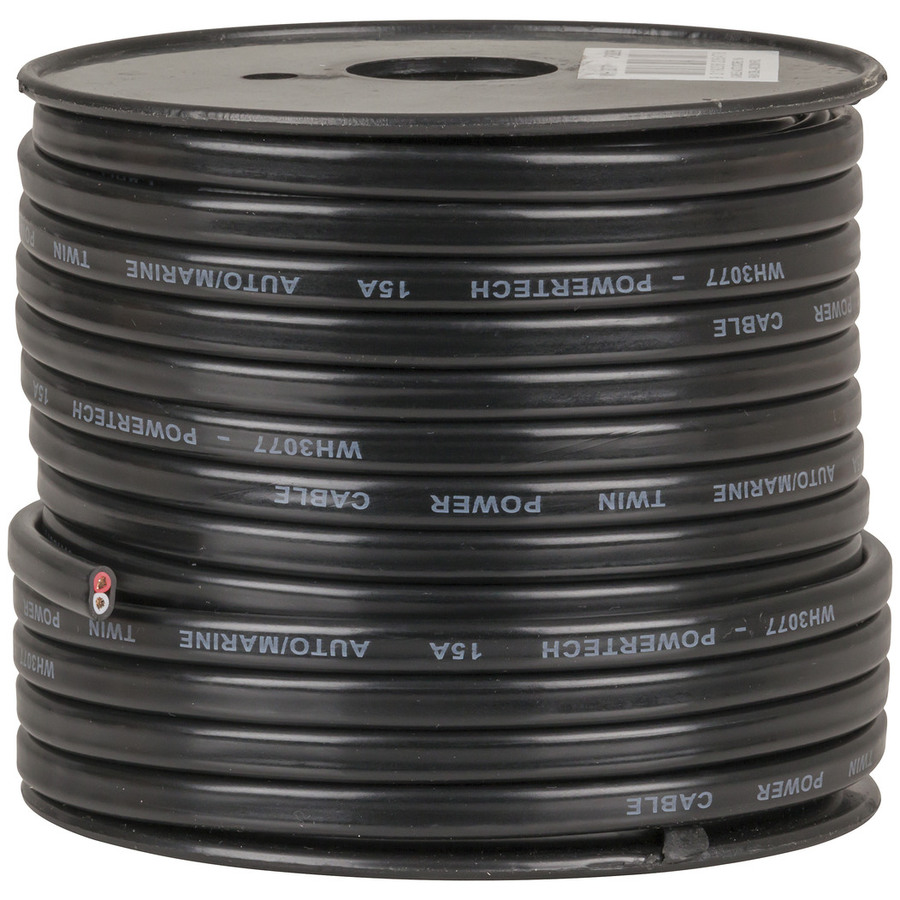

15A twin core power cable for auto and marine applications PVC insulated white and red cable with black PVC outer jacket - Tinned copper conductors - 16AWG - Sold as a 30m roll
Available

Description

Suitable for automotive and marine applications.

Features:
*Resistance @ 20ºC: 0.0123 ohm/m
*Max temp.: 80ºC
* Current capacity: 15A
*Stranding: 2/26 x 0.2mm
*Insulation: PVC



Sold by the metre: WH-3079


    Specifications

    Packaged Dimensions

    Packaged Length
    		 12.4cm
    Packaged Width
    		 12.7cm
    Packaged Weight
    		 1.89kg
    Packaged Volume
    		 1.685036l
    Packaged Height
    		 10.7cm

    Wire and Cable

    Outer Diameter
    		 3.2mm
    AWG
    		 16
    Core Material
    		 Tin Plated Copper
    Resistance per Linear Metre
    		 10.8m?
    Roll Length
    		 30m
    Wire Category
    		 hook up / power
    Conductor Overall Diameter
    		 1.53mm
    Retail Sales Unit
    		 Roll

    Product Availability

    Availability
    		 Stocked item
