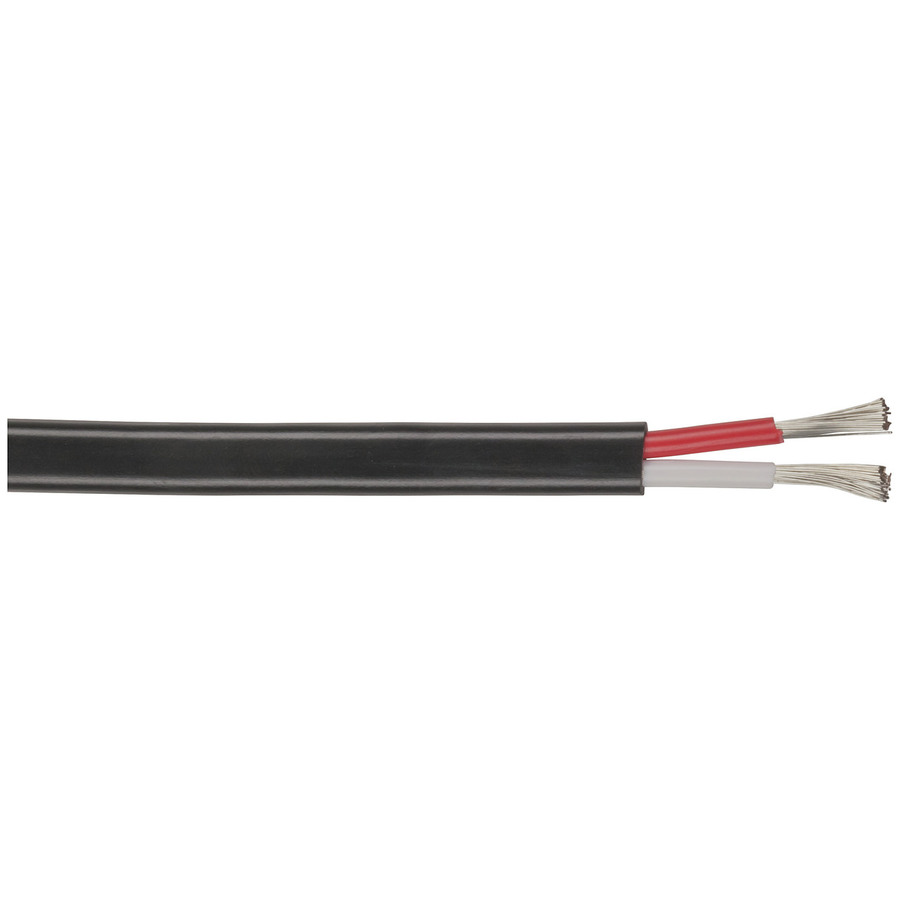

15A Twin Core Power Cable - Sold per metre
15A Twin Core Power Cable - Sold per metre

CAT. No. WH3079

15A Twin Core Power Cable - Sold per metre
product image thumb

15A Twin Core Power Cable - Sold per metre

$4.95
15A twin core power cable for auto and marine applications PVC insulated white and red cable with black PVC outer jacket Sold per meter
Available

Description

Suitable for automotive and marine applications. Features:

*Insulation: PVC

30m roll is avaible: WH3077


    Specifications

    Packaged Dimensions

    Packaged Length
    		 100cm
    Packaged Width
    		 0.72cm
    Packaged Weight
    		 0.064kg
    Packaged Volume
    		 0.0324l
    Packaged Height
    		 0.45cm

    Wire and Cable

    Individual Conductor Strand Diameter
    		 0.2mm
    Resistance per Linear Metre
    		 12.3m?
    UV Resistant Cable
    Conductor Overall Diameter
    		 1.45mm
    Oil Resistant Wire
    Number of Conductor Strands
    		 48pc
    Outer Diameter
    		 7.2mm
    AWG
    		 16
    Halogen Free Wire
    Core Material
    		 Tin Plated Copper
    Number of Conductor Cores
    		 2pc
    Roll Length
    		 100m
    Wire Category
    		 hook up / power
    OFC wire
    Retail Sales Unit
    		 Metre
    Cross Sectional Area
    		 1.5mm²
    Twisted Cores

    Product colour

    Alternates available
    Colour
    		 Black

    DC Current Rating

    DC current rating
    		 15A

    Product Availability

    Availability
    		 Stocked item
