2m Premade PV Power Cable with PV Style Plug to Bare End
2m Premade PV Power Cable with PV Style Plug to Bare End
2m Premade PV Power Cable with PV Style Plug to Bare End

CAT. No. WH3123

2m Premade PV Power Cable with PV Style Plug to Bare End
product image thumb
product image thumb

2m Premade PV Power Cable with PV Style Plug to Bare End

$20.95

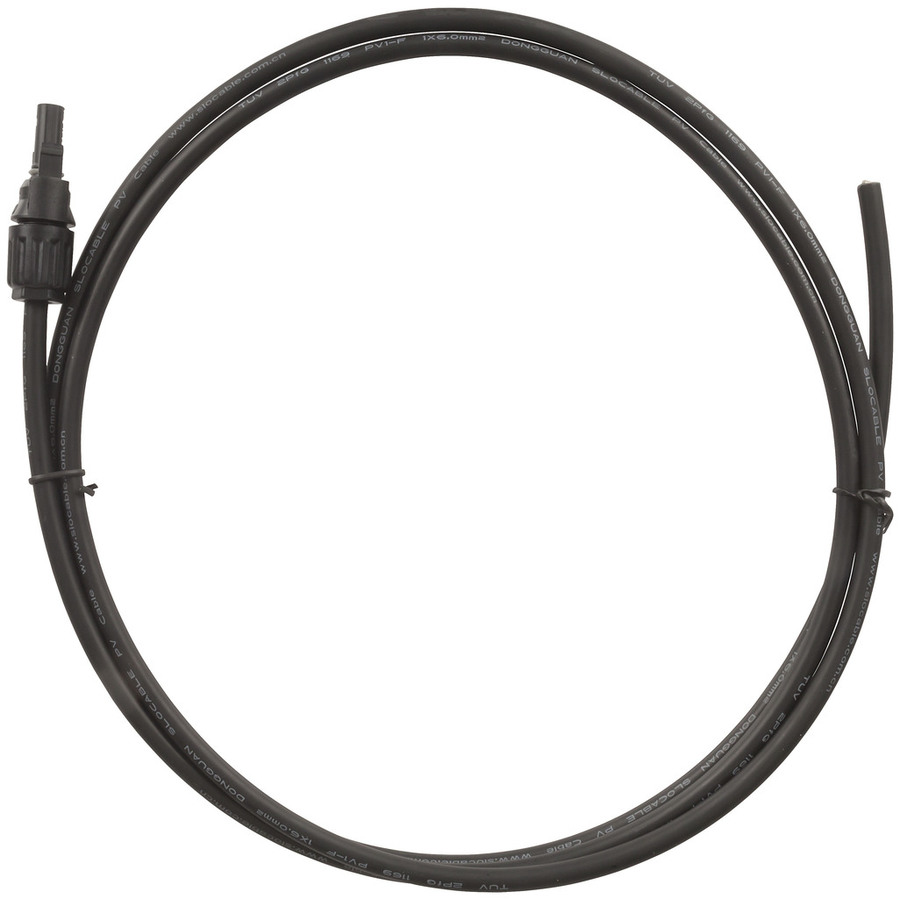

2 meter cables for solar power systems, one end PV style plug and other end is bare for connecting own plugs or wiring into a controller
Available

Description

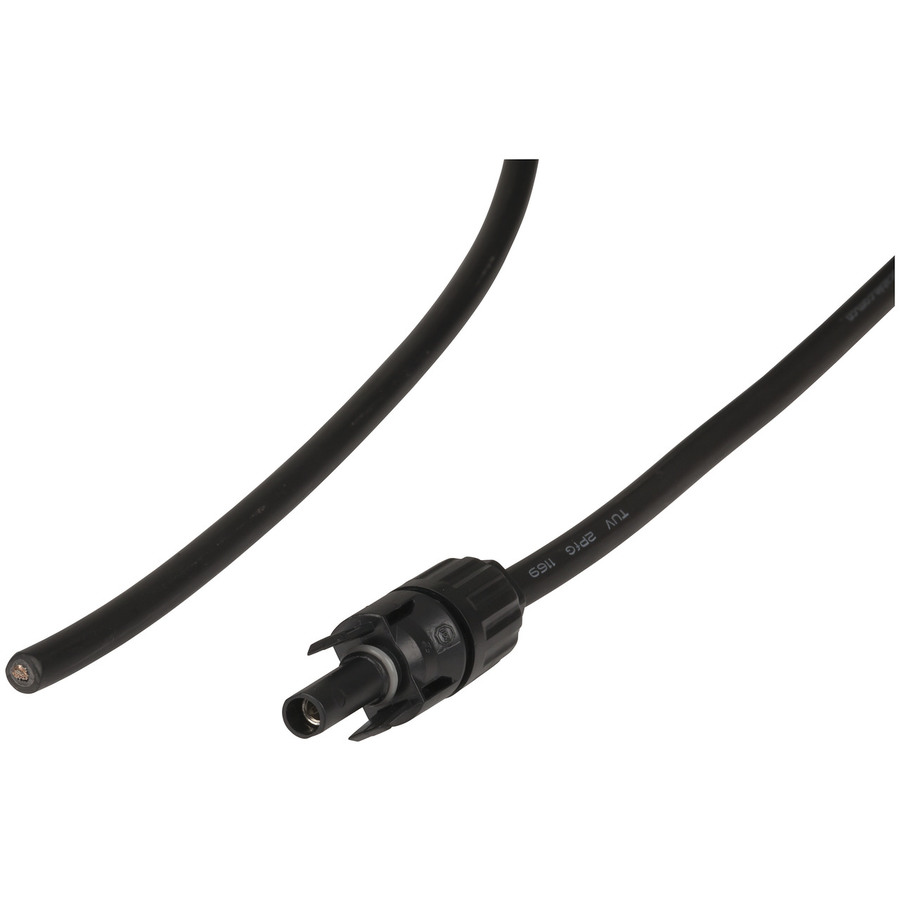

At one end of this 2m cable is a crimped PV connector style plug, which saves you from having to crimp one on your own. The other end is a bare tinned wire to connect to your solar controller or other solar hardware.

- 6mm2 (10AWG) cable

    Specifications

    Plug or Socket

    Device
    		 Plug
    Plug or Socket Type
    		 4mm PV Connector (MC4 Style)
    Attachment Method
    		 Crimp

    DC Voltage Rating

    DC Voltage
    		 1000V

    DC Current Rating

    DC current rating
    		 76A

    Operating Temperature

    Operating Temperature
    		 -40°C-125°C

    Product Dimensions

    Cable length
    		 2m

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 16cm
    Packaged Width
    		 17cm
    Packaged Weight
    		 0.228kg
    Packaged Volume
    		 0.68l
    Packaged Height
    		 2.5cm
