Duinotech 8x5 RGB LED Shield for Arduino

$19.95

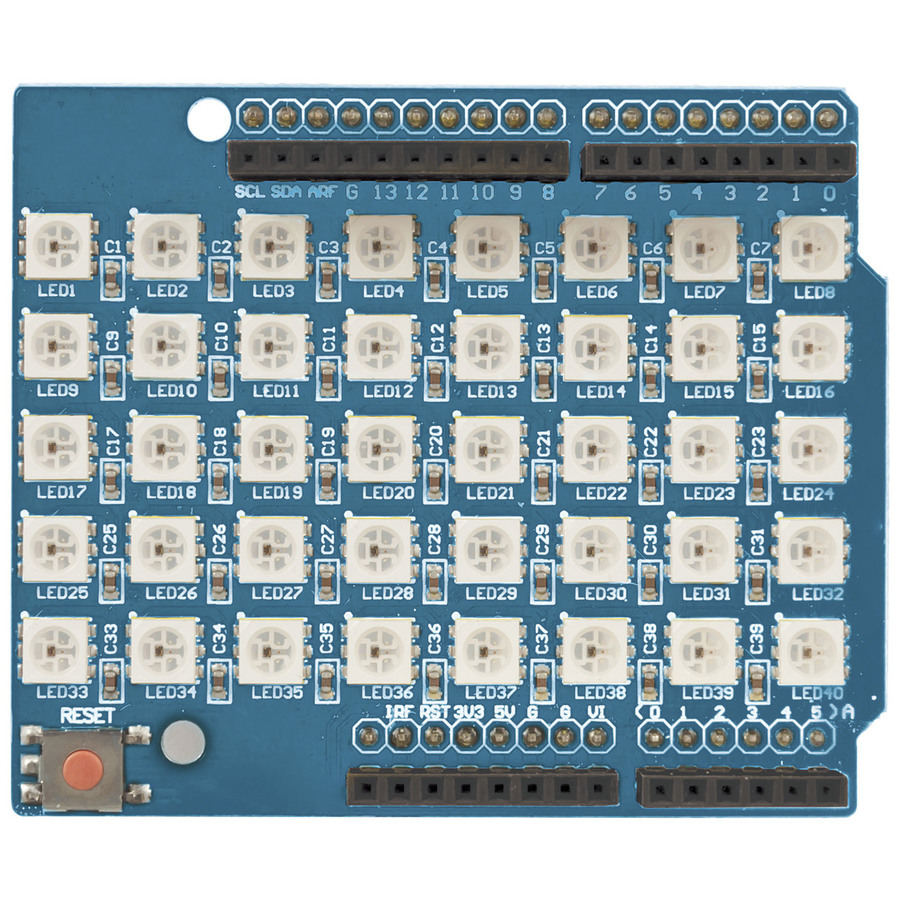

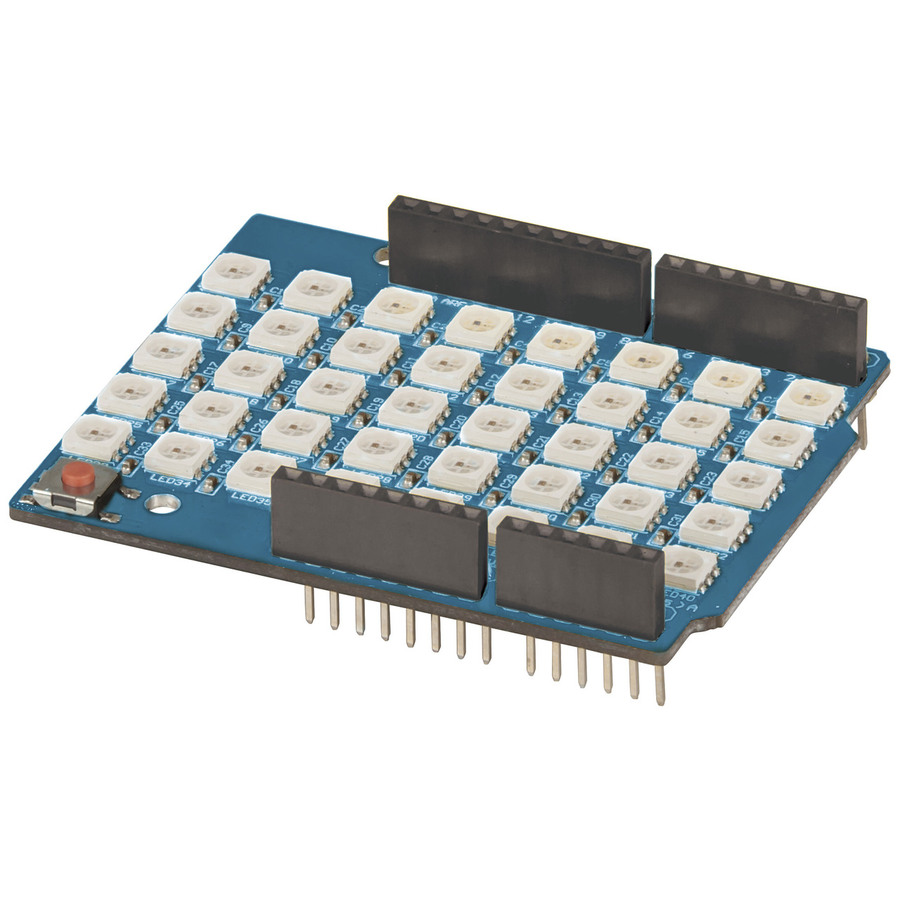

Design custom rainbow LED displays with this array of 40 RGB LEDs, built into a matrix shield that fits perfectly on top of your chosen UNO board. Individually addressable and compatible with Neopixel and FastLED libraries.

Out of Stock

Description

Arduino® Compatible
LED

Create dazzling LED displays with this RGB LED Matrix Shield that simply plugs directly onto your UNO compatible board. The built-in driver IC and 12V programmable constant current circuitry ensure each LED can reach full brightness and colour. The data transfer protocol uses single NZR communication mode. After the pixel power-on reset, the DI port receives data from controller. The first pixel collects initial 24-bit data then sends it to the internal data latch.

Features:
• 8 x 5 RGB LEDs
• Stackable Design
• Built-in driver IC circuit

    Specifications

    Arduino Modules

    Required Supply Voltage
    		 12V

    Product Dimensions

    Length
    		 69mm
    Height
    		 18mm
    Width
    		 57mm
    Weight
    		 20g

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 9.5cm
    Packaged Width
    		 6cm
    Packaged Weight
    		 0.027kg
    Packaged Volume
    		 0.114l
    Packaged Height
    		 2cm
