MP3 Audio Player Module with 6 push button switches for Arduino

$17.5

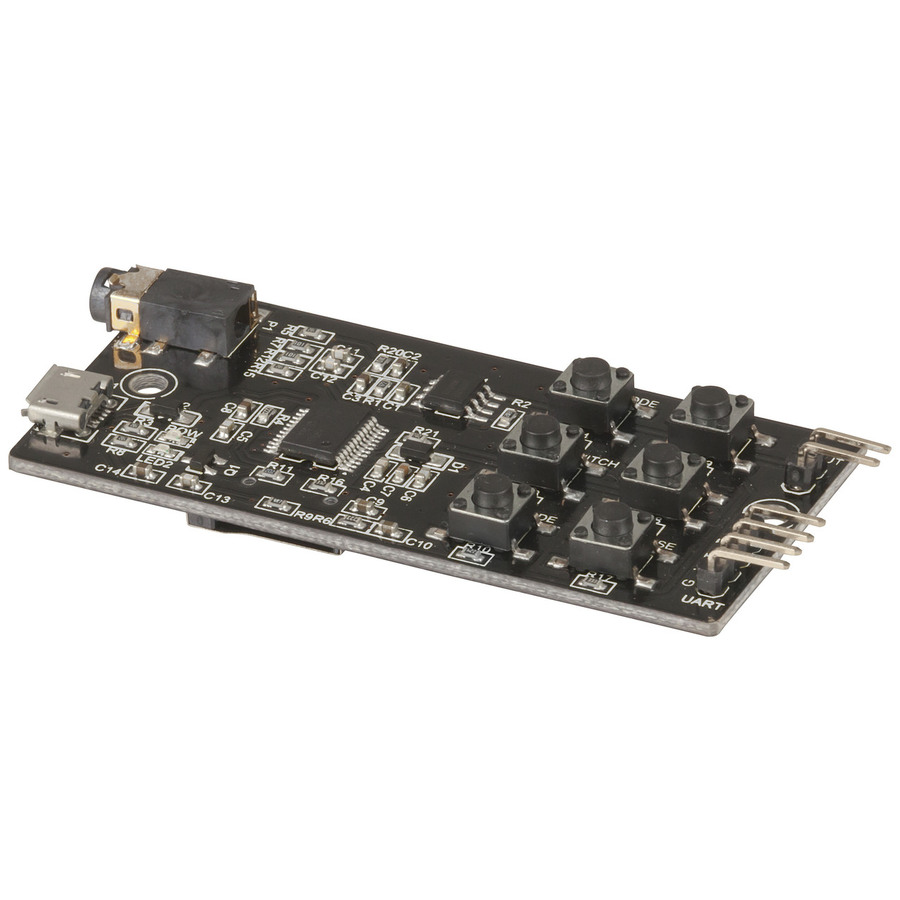

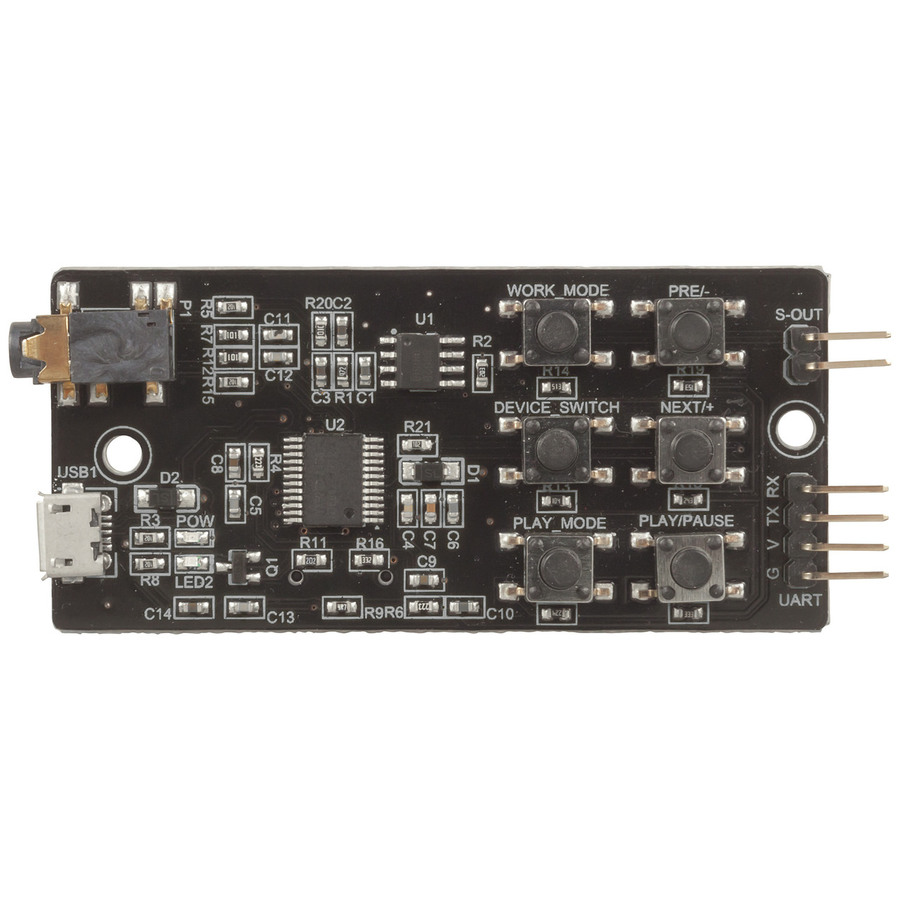

Play MP3, WAV, or WMA files from an onboard microSD card with your next electronics project. This self contained module includes a built-in 6 button control pad, speaker, USB port and audio socket.
Available

Description

Arduino? Compatible

This audio module can play MP3 files from installed microSD card (sold separately). A built-in amplifier can power an 8-ohm speaker, and a 3.5mm audio socket is also provided for private listening using your headphones or connection to an external amplifier. Control the audio using the six integrated tactile switches or via the UART serial communications interface. A micro USB interface enables you to access the microSD card and download the music.

Specifications:
Max Power Consumption: 5W
Ouptut Power: 1.2W max

    Specifications

    Flash Memory

    Size Adaptor(s) Included
    		 SD

    Memory Products

    Memory Capacity
    		 32GB
    Type of Memory
    		 Micro SD Card

    DC Current Rating

    DC current rating
    		 1A

    DC Voltage Rating

    DC Voltage
    		 5V

    Power Rating

    Maximum Power
    		 5W

    Product Dimensions

    Height
    		 8mm
    Width
    		 77mm
    Depth
    		 33mm
    Weight
    		 10.6g

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 15.9cm
    Packaged Width
    		 8cm
    Packaged Weight
    		 0.014kg
    Packaged Volume
    		 0.1272l
    Packaged Height
    		 1cm
