CAT. No. XC3804

Duinotech Smart Wi-Fi Relay Board
product image thumb
product image thumb

Duinotech Smart Wi-Fi Relay Board

$18.5
A Wi-Fi controlled relay utilising an ESP8266 module and microcontroller that you can trigger with an App from anywhere in the world. It s ideal for home automation and IOT projects plus easy to connect with the built-in screw terminal blocks.
Available

Description

Arduino® Compatible
Wi-Fi Compatible

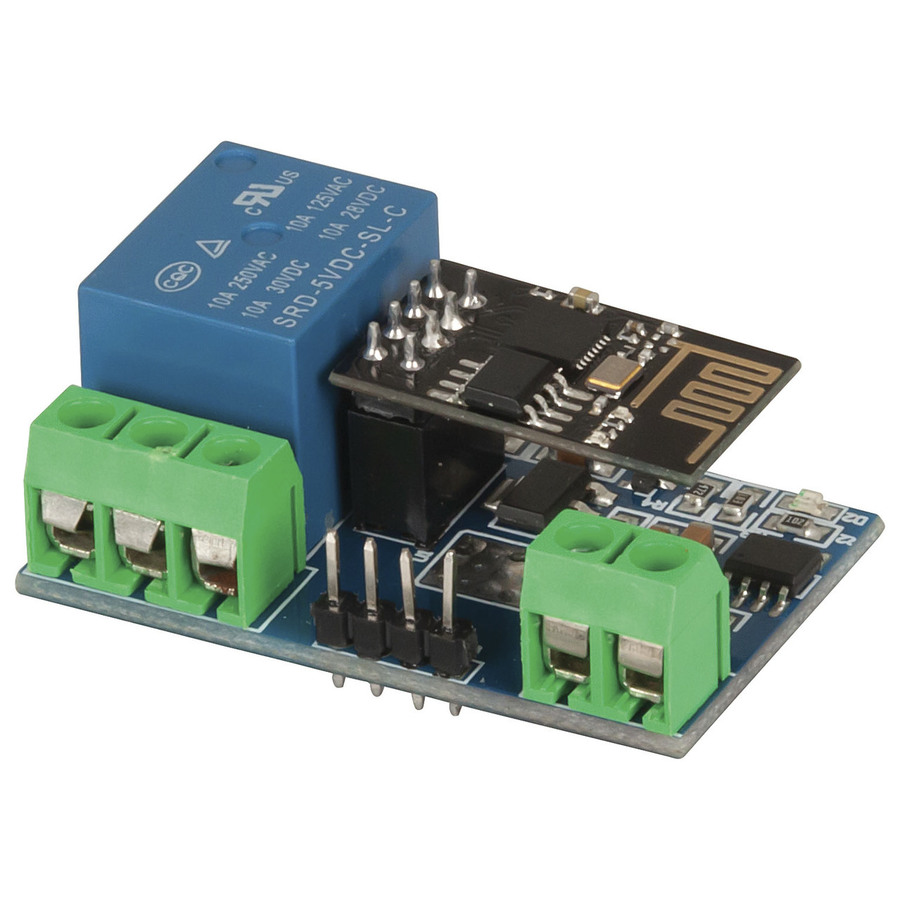

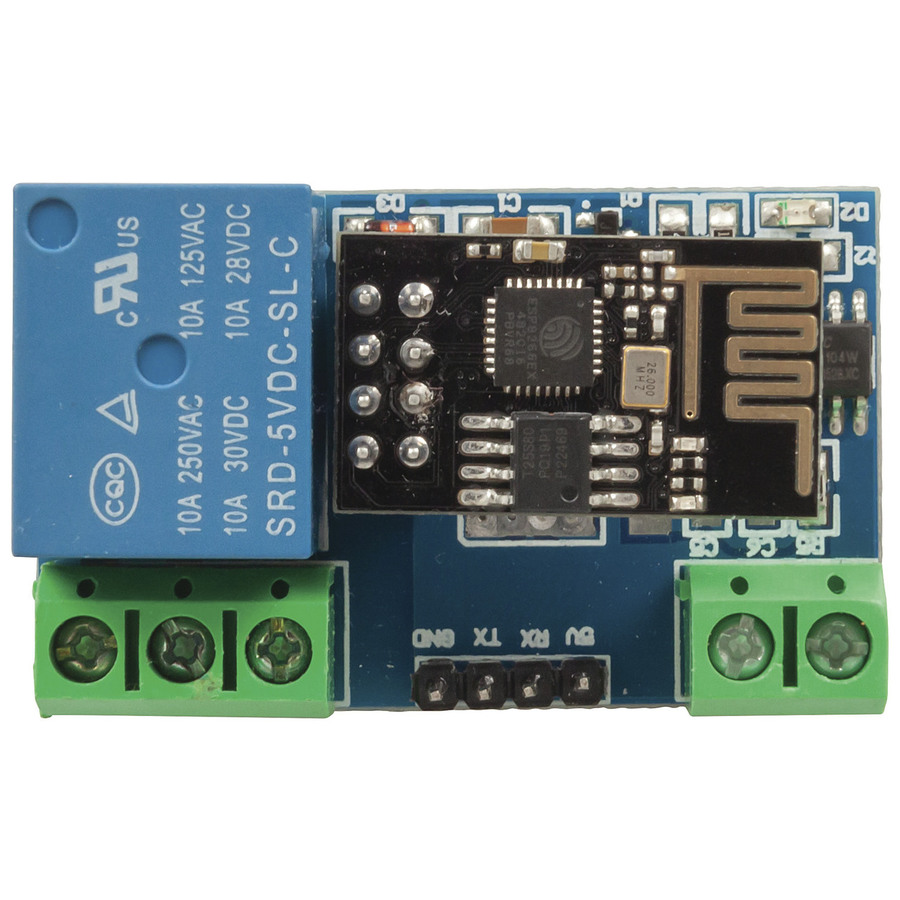

This board is essentially a Wi-Fi controlled relay that you can trigger with an App from anywhere in the world (requires configuration of modem and knowing your modem IP address). Ideal for home automation, IOT (Internet Of Things), lighting control projects, and much more. The board measures just 45 x 28mm and features an ESP8266 module and microcontroller, screw terminal blocks to make wiring easy, and a 5V relay to control power to devices that draw more current than an ordinary development board can handle. A 4-pin header enables you to provide 5V power directly or to connect to the TX and RX serial port debug pins.

    Specifications

    Relay


    Input
    DC
    Coil Current
    71.4mA
    Nominal Voltage
    5V
    Device Type
    Standard Coil Relay
    DC Contact Voltage
    30V
    AC Contact Current Rating
    10A
    Contact format
    SPDT
    Coil Resistance
    70?
    Power Consumption
    0.36W
    AC Contact Voltage
    250V
    DC Contact Current Rating
    10A

    Product Dimensions


    Length
    45mm
    Height
    20mm
    Width
    28mm

    Product Availability


    Availability
    Stocked item

    Packaged Dimensions


    Packaged Length
    10cm
    Packaged Width
    10cm
    Packaged Weight
    0.03kg
    Packaged Volume
    0.2l
    Packaged Height
    2cm
