CAT. No. XC3810

Duinotech Wearable ESP32 Development Board
product image thumb
product image thumb

Duinotech Wearable ESP32 Development Board

$39.95
Take your costumes and wearable technology to the next level! It allows Smartphone control, incorporates Wi-Fi and Bluetooth connectivity and can be sewn onto fabric. Perfect for cosplay, Halloween or maybe an ugly Xmas jumper!

Out of Stock

Description

Arduino® Compatible
Bluetooth® Compatible
Wi-Fi Compatible

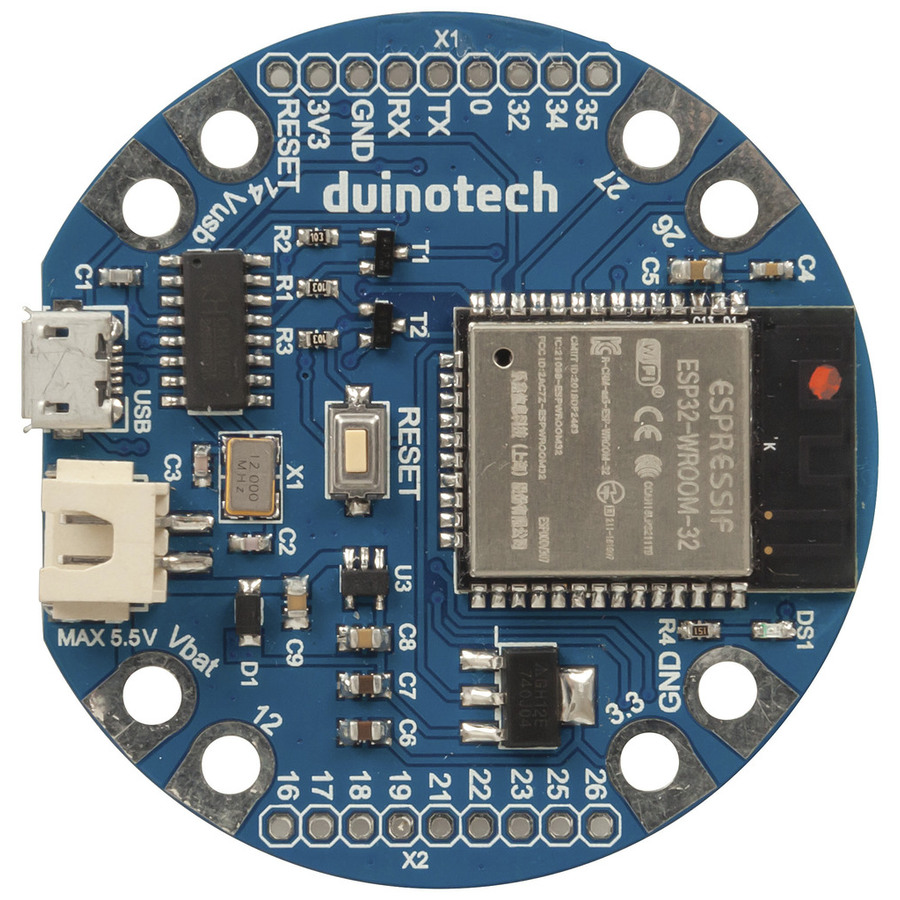

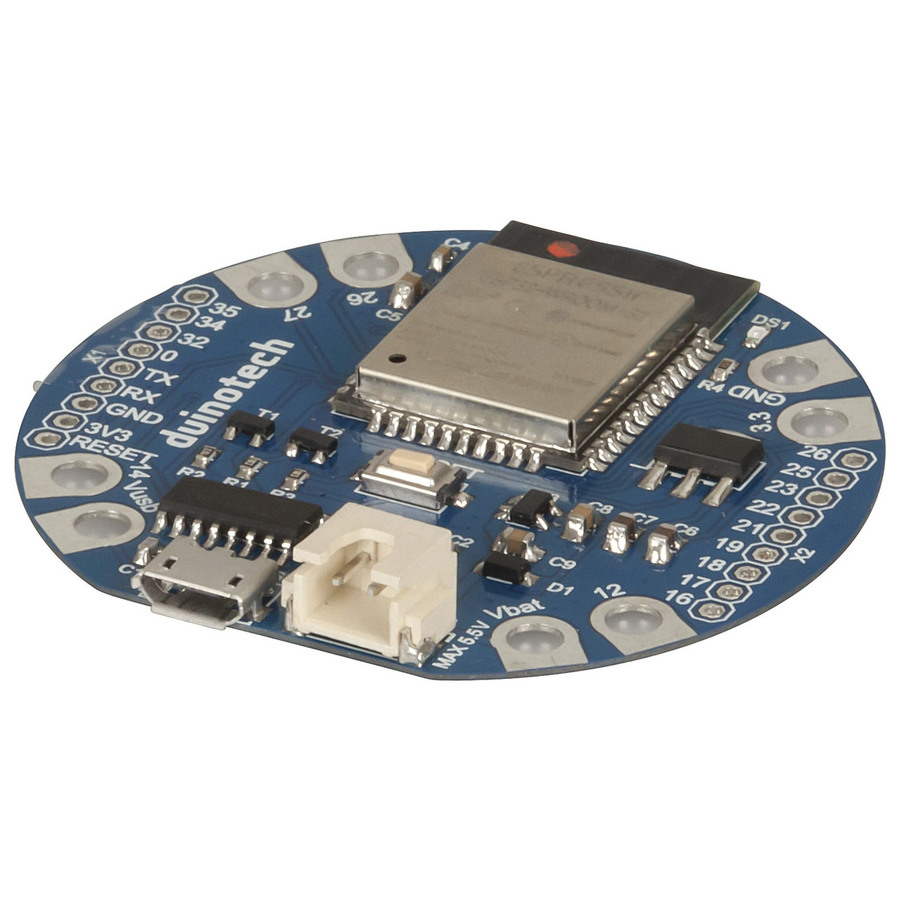

With this compact yet powerful ESP32 wearable development board, you can take your costumes and wearable technology to the next level, including Smartphone control. The board has all the features of an ESP32 including WiFi and Bluetooth, but on a 56mm diameter board that can be sewn onto fabric or similar material using conductive thread (sold separately). There is a provision to connect a rechargeable battery for portable applications, and programming is performed easily via the onboard micro USB port with the Arduino IDE through the ESP32 add-on.

    Specifications

    Arduino Boards


    Program memory
    520KB
    Microcontroller
    ESP32

    USB Powered


    USB Voltage Input
    5V

    Wireless LAN (Wi-Fi)


    Supported Wi-Fi Modes
    802.11b, 802.11g, 802.11n

    Product Dimensions


    Height
    7mm
    Diameter
    56mm
    Weight
    6g

    Product Availability


    Availability
    Stocked item

    Packaged Dimensions


    Packaged Length
    10cm
    Packaged Width
    10cm
    Packaged Weight
    0.016kg
    Packaged Volume
    0.1l
    Packaged Height
    1cm
