CAT. No. XC3812

Duinotech SAMD21 Main Board with Wi-Fi
product image thumb
product image thumb
product image thumb
product image thumb
product image thumb

Duinotech SAMD21 Main Board with Wi-Fi

$69.95
A compact Arduino compatible development board with an integrated W600 Wi-Fi module ideal for low-power IoT projects. It can be powered and programmed via its' Type-C USB port and made portable with battery power via its 3.3V pin.

Out of Stock

Description

Arduino® Compatible
Wi-Fi Compatible

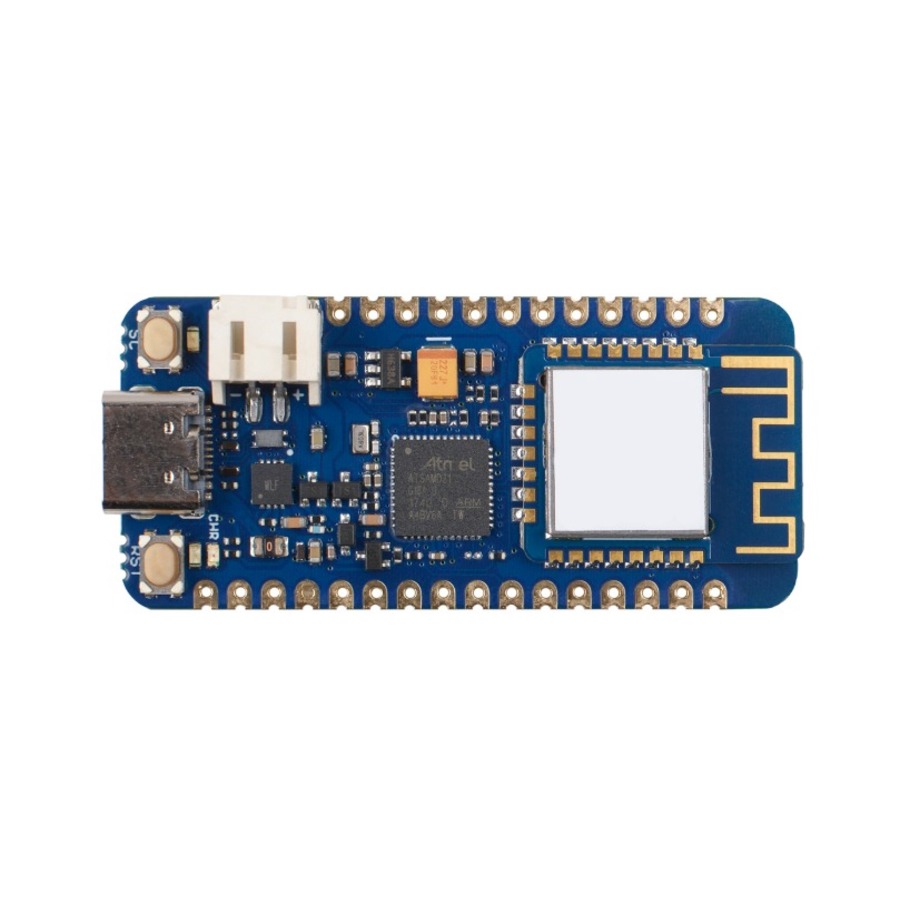

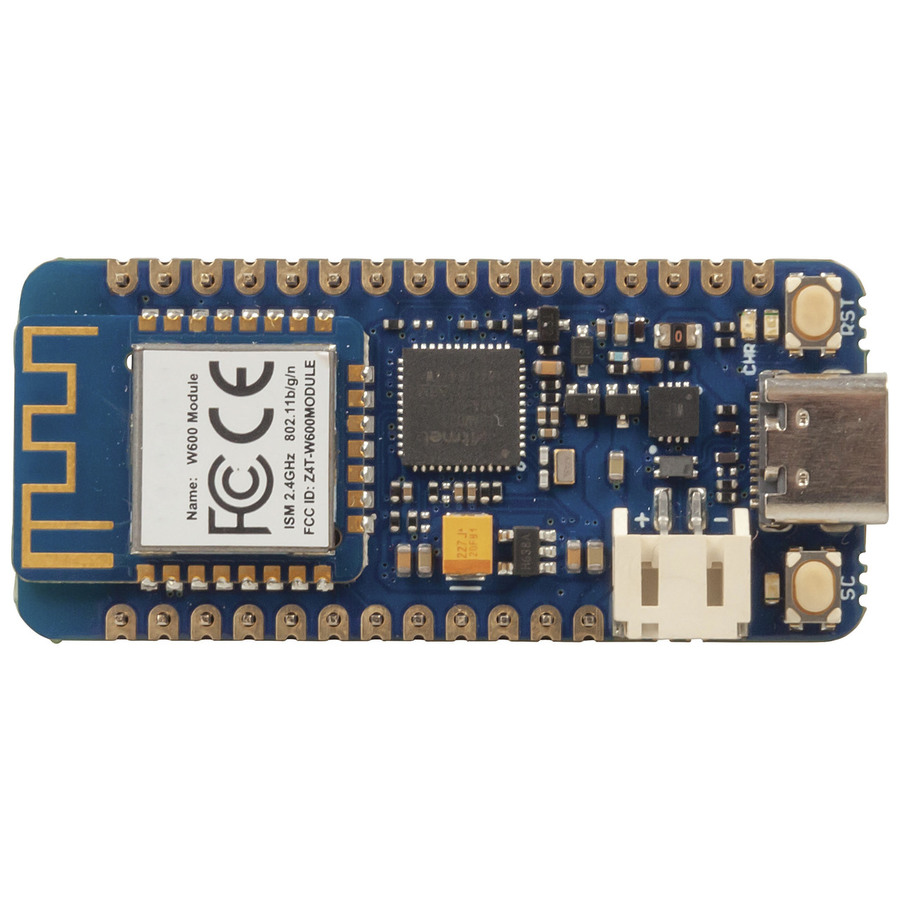

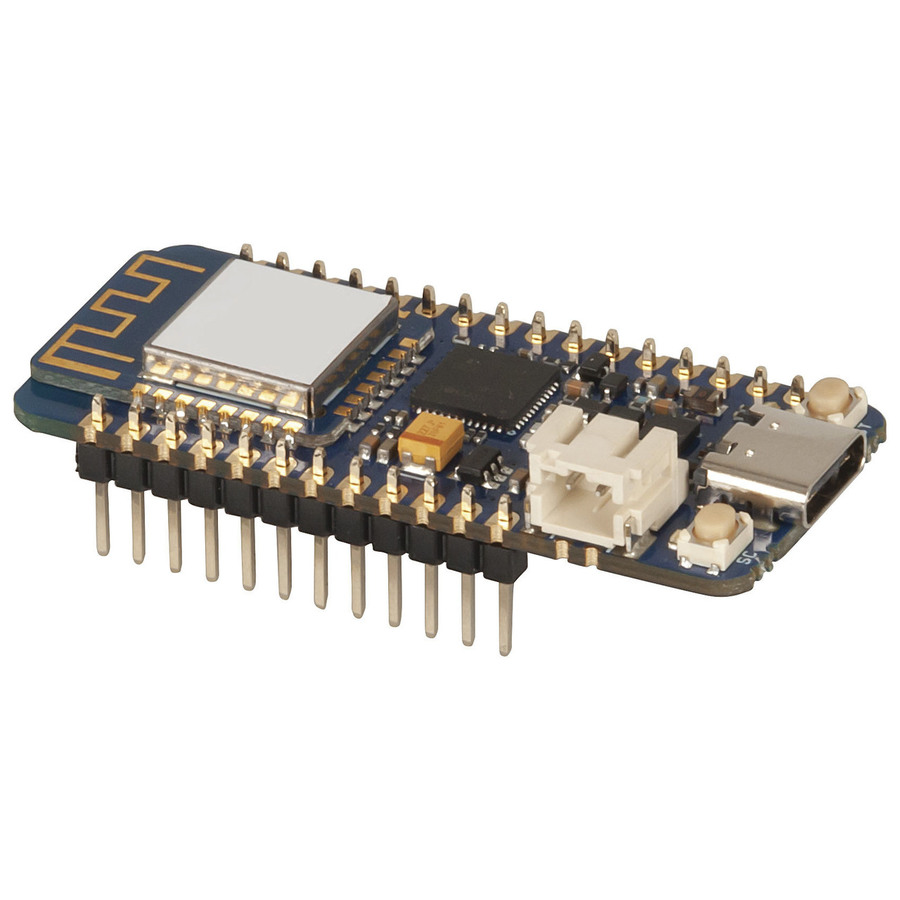

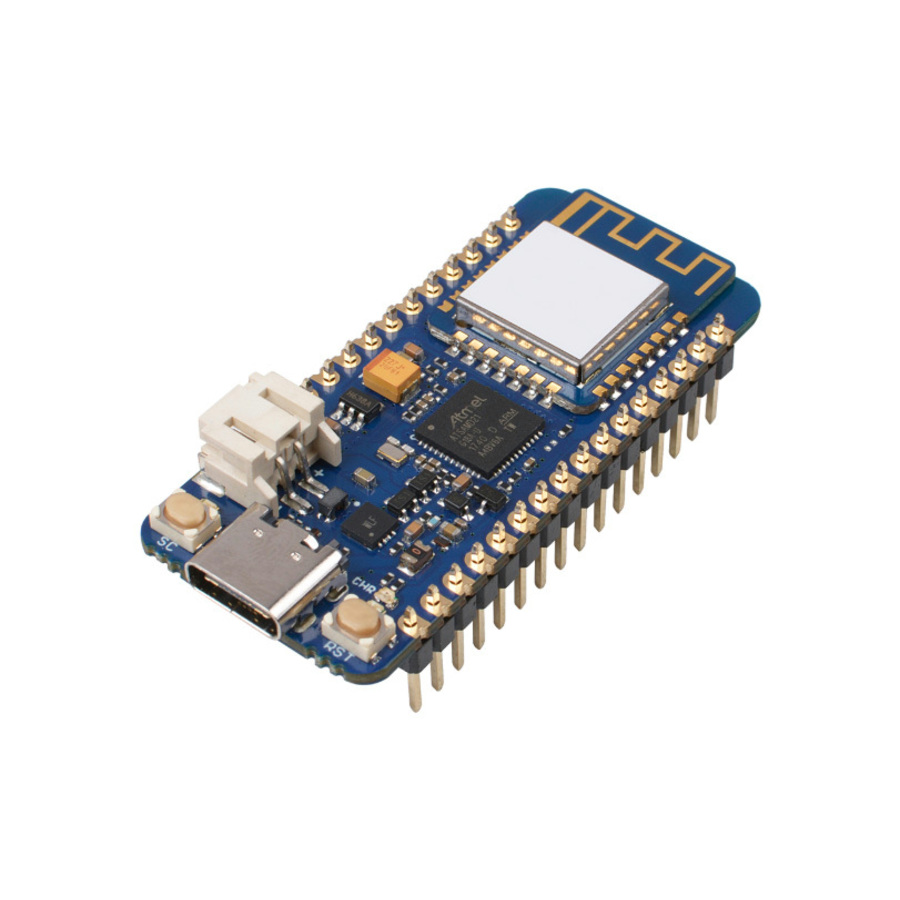

A small form factor microcontroller board with an integrated W600 Wi-Fi module, making it ideal for compact and low-power IoT wireless projects. It features 6 analogue and 14 digital pins, a UART, I2C, and ICSP port. It has a USB Type-C socket for 5V power and programming, and there is also provision to connect and charge a 3.5-4.2V Li-po battery (not included) for portable applications.
Features:

  • Arduino Zero and Adafruit Feather Compatible
  • 2.4GHz onboard Wi-Fi module supports 802.11 b/g/n

    Specifications

    Power from rechargeable battery

    Type
    		 Lithium Polymer
    Shape
    		 Lithium Rechargeable Battery Cell/Pack
    Rechargeable battery required to power
    		 Main Product
    USB Charge Connection
    		 USB Type C

    Arduino Boards

    Program memory
    		 256kB
    Microcontroller
    		 Atmel® | SMART™ SAM D21 ARM Cortex-M0+
    Board Inputs
    		 6 Analogue, 14 Digital

    USB Powered

    USB Voltage Input
    		 3.5V-5.1V

    Wireless LAN (Wi-Fi)

    Supported Wi-Fi Modes
    		 802.11b, 802.11g, 802.11n

    Wireless Transmission

    Transmission frequency
    		 2.4GHz

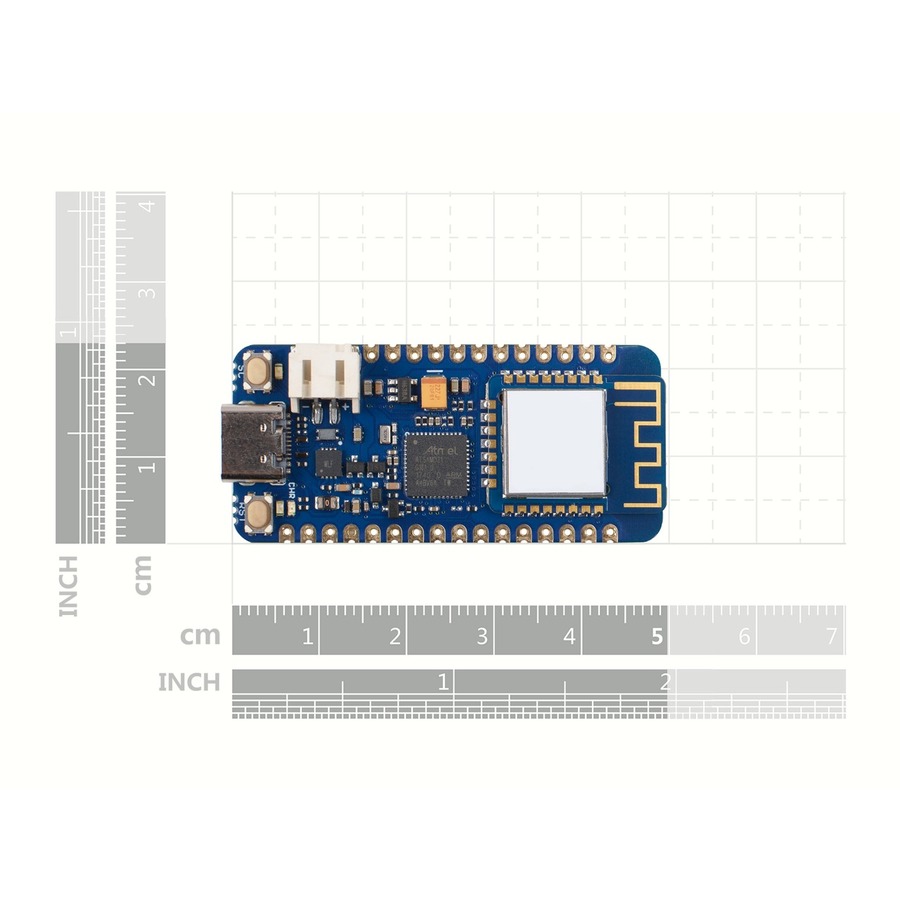

    Product Dimensions

    Height
    		 17mm
    Width
    		 23mm
    Depth
    		 52mm
    Weight
    		 5g

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 10cm
    Packaged Width
    		 10cm
    Packaged Weight
    		 0.013kg
    Packaged Volume
    		 0.1l
    Packaged Height
    		 1cm

    Downloads

      Articles
      Articles

    XC3812-manualMain.pdf
