Duinotech Screw Terminal Shield for Arduino NANO
Duinotech Screw Terminal Shield for Arduino NANO
Duinotech Screw Terminal Shield for Arduino NANO

CAT. No. XC3892

Duinotech Screw Terminal Shield for Arduino NANO
product image thumb
product image thumb

Duinotech Screw Terminal Shield for Arduino NANO

$13.5
Design and test Arduino Nano prototypes or complete projects without soldering! Connections can be made via screw terminal blocks but through-hole solder points are also incorporated if you need them. Fits neatly on the development board.

Out of Stock

Description

Arduino® Compatible

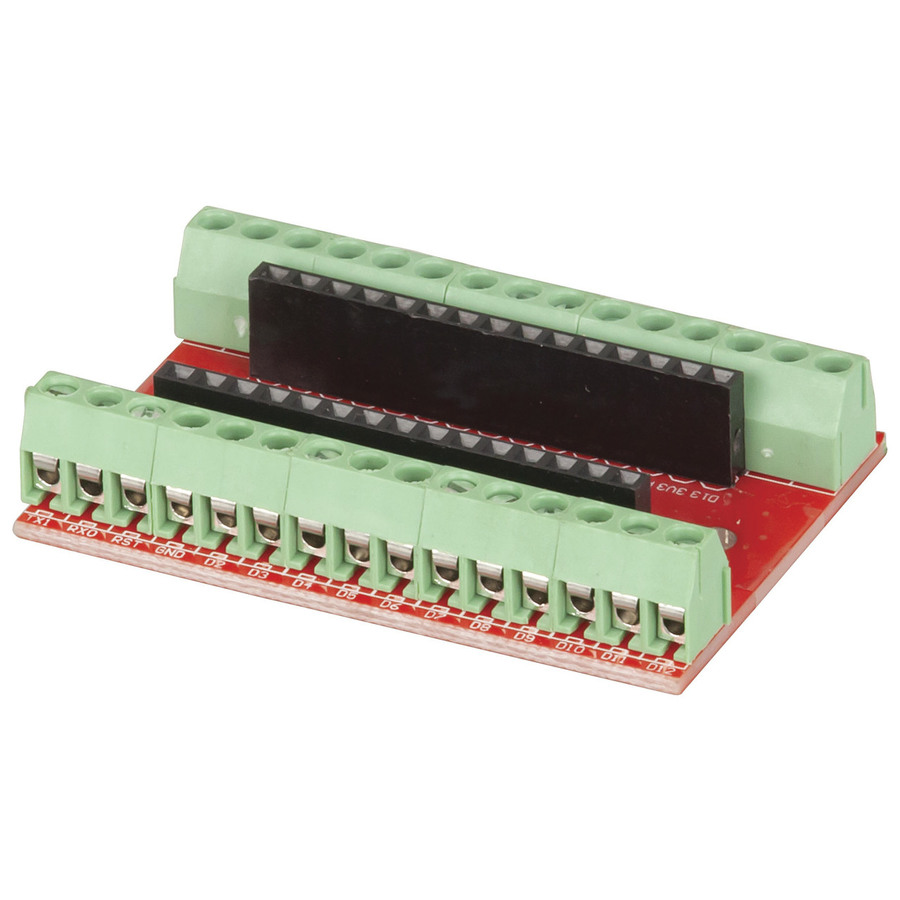

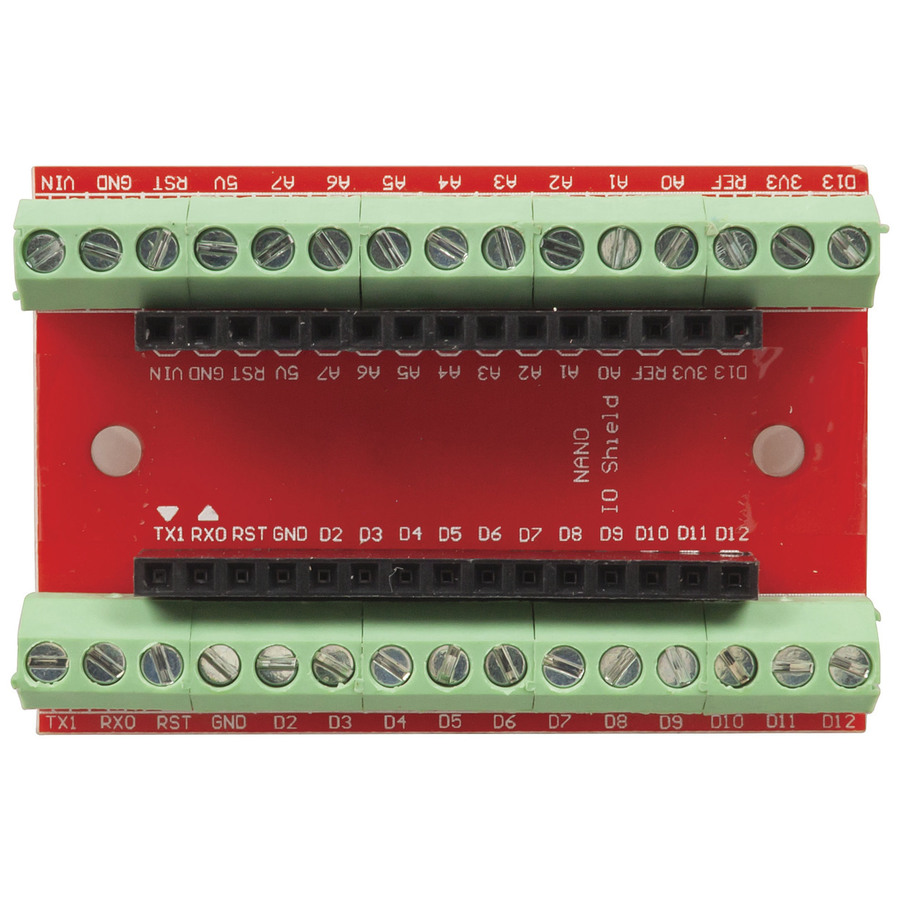

This shield makes it easy to create prototypes or complete projects using an Arduino Nano or equivalent, without the need for soldering or using jumper wires that can come loose and fall out. Simply insert your Nano board then connect any wiring to the screw terminal blocks. The pinouts are clearly identified on the board, and two 3mm holes enable you to mount the shield for fixed applications.

    Specifications

    Terminal Strip

    Number of Contacts
    		 30pc
    Attachment Method
    		 Screw Terminals

    Product Dimensions

    Length
    		 53mm
    Height
    		 13mm
    Width
    		 36mm
    Weight
    		 20g

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 9.8cm
    Packaged Width
    		 9.9cm
    Packaged Weight
    		 0.028kg
    Packaged Volume
    		 0.223146l
    Packaged Height
    		 2.3cm
