CAT. No. XC3920

Duinotech Lilypad Plus
product image thumb
product image thumb

Duinotech Lilypad Plus

$34.95

Add dazzling rainbow lighting and other effects to your next project or costume with this sewable, portable multi-functional development board. Great for cosplay and Halloween!

Available

Description

Arduino® Compatible

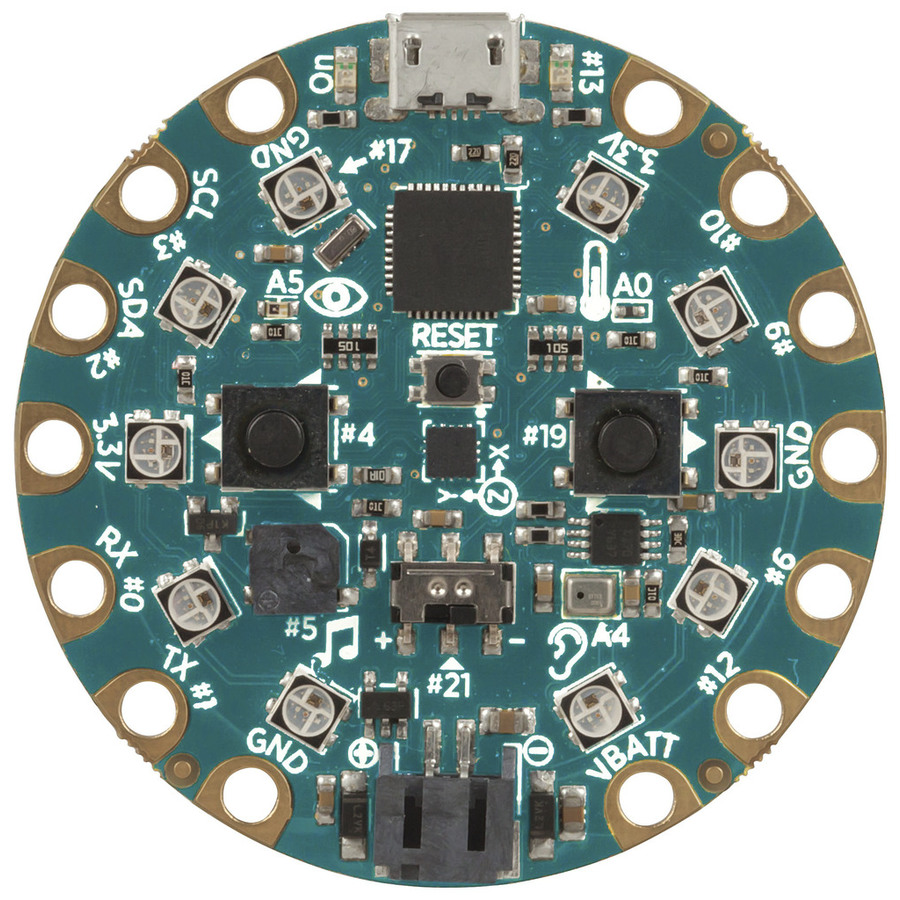

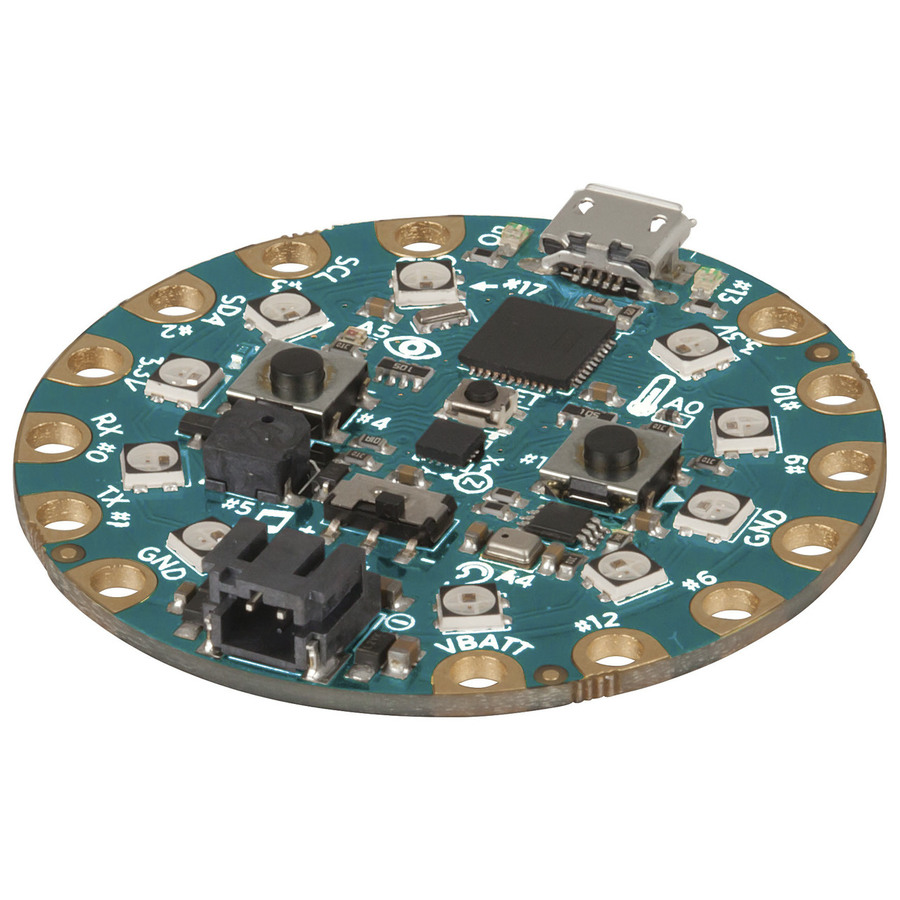

An all-in-one Arduino-compatible board to add dazzling effects to your next project or costume. The round-shaped board features ten mini RGB LEDs, a motion sensor (accelerometer), temperature sensor (thermistor), light sensor (phototransistor), microphone, buzzer, left and right push-buttons, slide switch, and more to suit a wide variety of applications. The fourteen power and I/O pads around the edge of the board are alligator clip friendly for prototyping purposes, can be soldered, mounted with metal screws, or sewn into your costume using conductive thread (sold separately). The onboard ATmega32u4 8-bit AVR microcontroller runs your Arduino code, and the eight I/O connections include Serial TX, Serial RX, I2C (SCL & SDA) and four GPIO pins. Program and power the board from USB or 3.3VDC. A battery pack (6V max.) can also be connected to make your project completely portable. The USB port has HID support to act like a keyboard, mouse, joystick or MIDI, and the eight non-power related pads can be used as capacitive touch applications.



    Specifications

    Microcontroller ATmega32u4 8-bit 8MHz
    USB Voltage Input 3.3V-6V
    USB Item Connection Micro-USB
    Contacts / Pins 2pc
    Plug or Socket Type JST Connector
    Diameter 50mm
    Availability Stocked item
    Packaged Length 10cm
    Packaged Width 10cm
    Packaged Weight 0.016kg
    Packaged Volume 0.1l
    Packaged Height 1cm
