Keyes Max Development Board

$41.5
Based on the Uno board, the Keyestudio Max Development board shares the same layout however also integrates many additonal sensors.
Available

Description

Arduino® Compatible

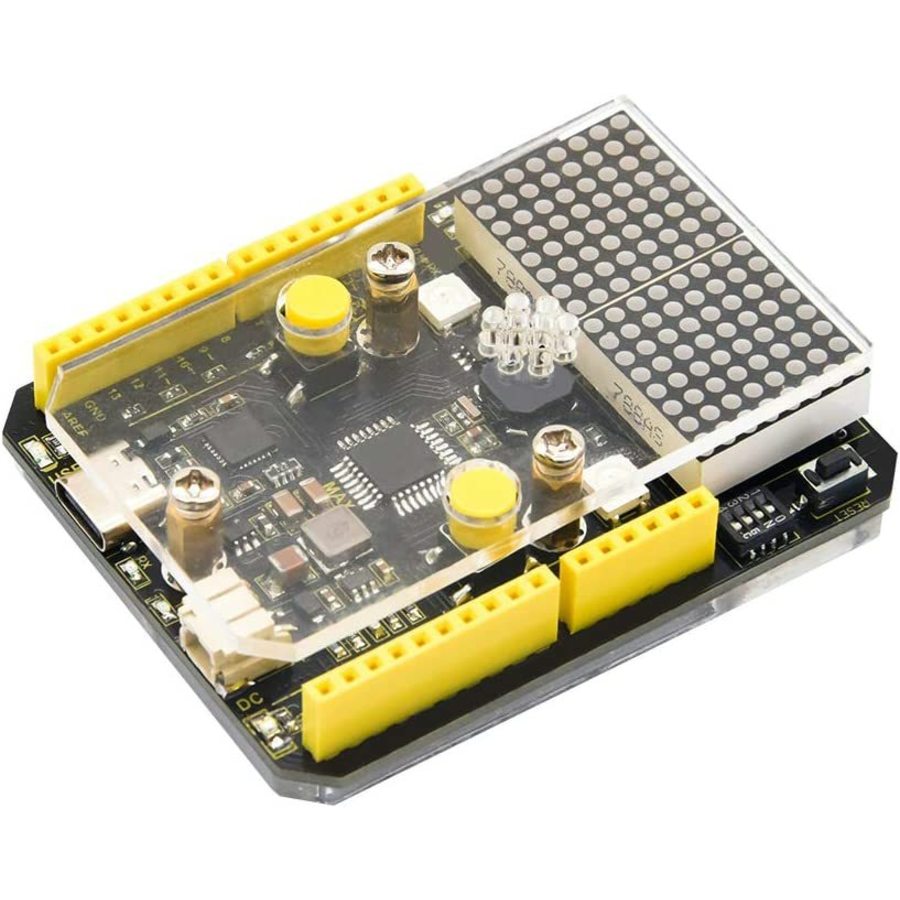

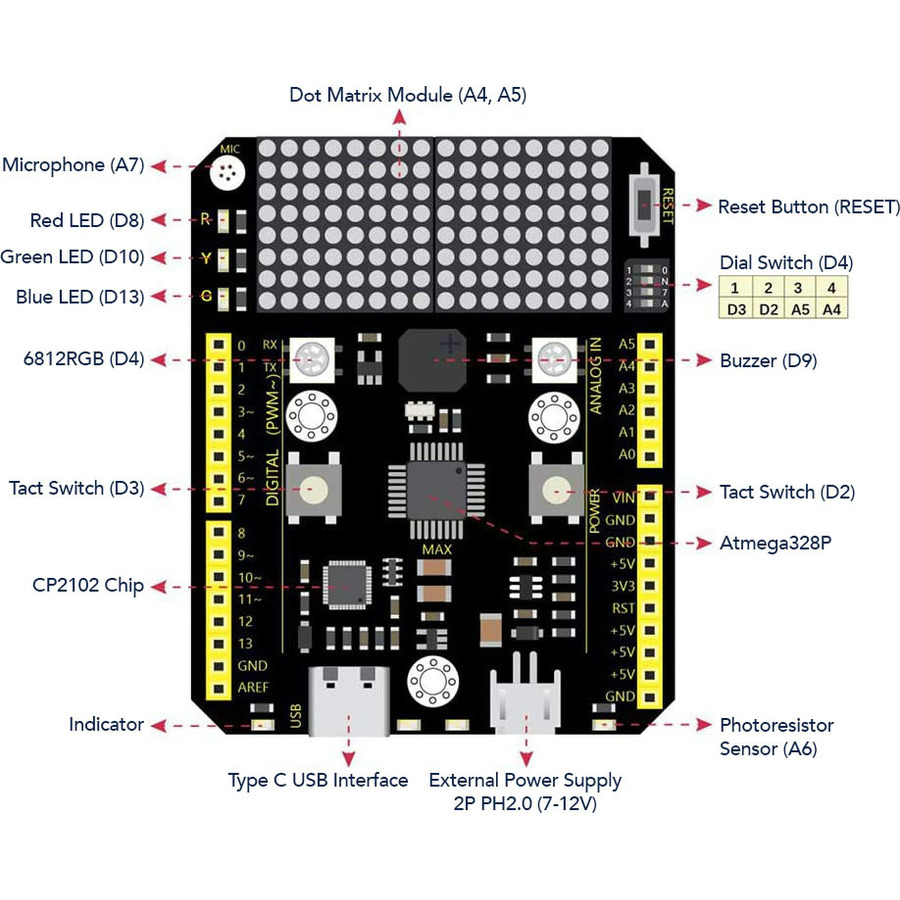

Based on the Uno board, the Keyestudio Max Development board shares the same layout however also integrates three LEDs, two 6812RGB LEDs, two button switches, a buzzer, a microphone sensor, a light sensor, and an 8*16 dot matrix.

Includes a 1m USB type C cable, protective case kit & required mounting hardware.


    Specifications

    Arduino Boards

    Program memory
    		 32KB
    Microcontroller
    		 ATmega328P
    Board Inputs
    		 20
    Board Outputs
    		 16

    USB Connectivity

    Supported USB Standards
    		 USB 3.0
    USB Port Types
    		 USB Type C

    Arduino Modules

    Required Supply Voltage
    		 7V-12V

    Button Cell information

    Contains Button Cell

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 12.3cm
    Packaged Width
    		 9.1cm
    Packaged Weight
    		 0.102kg
    Packaged Volume
    		 0.33579l
    Packaged Height
    		 3cm
