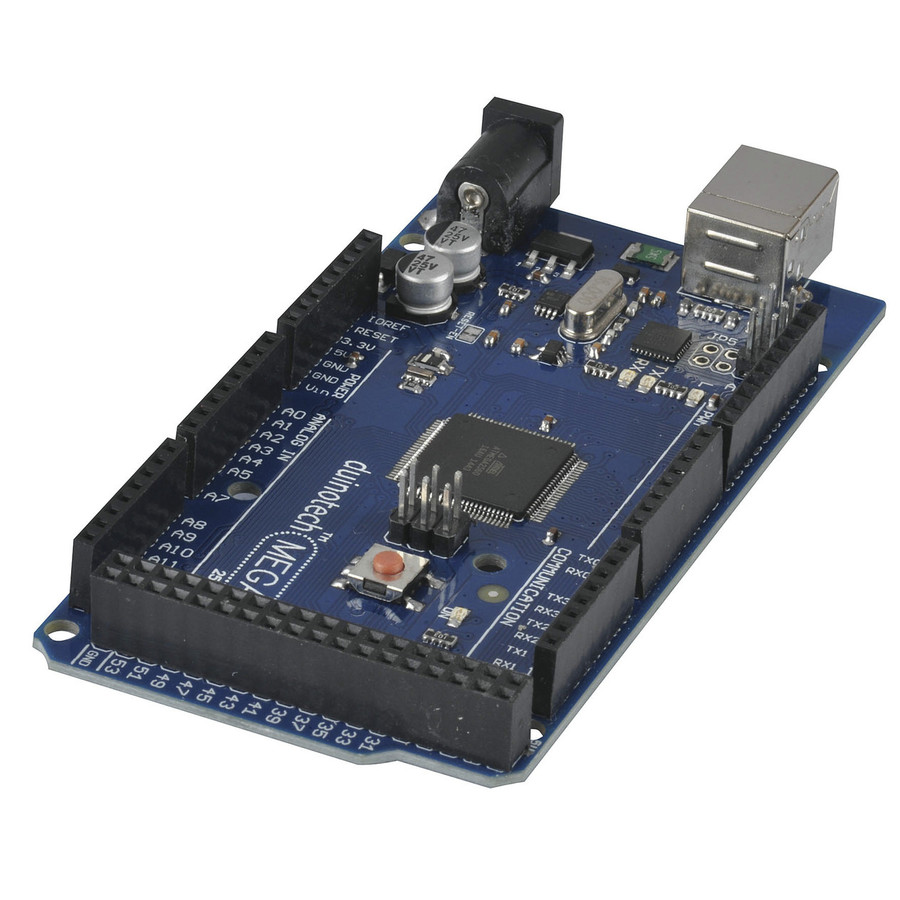

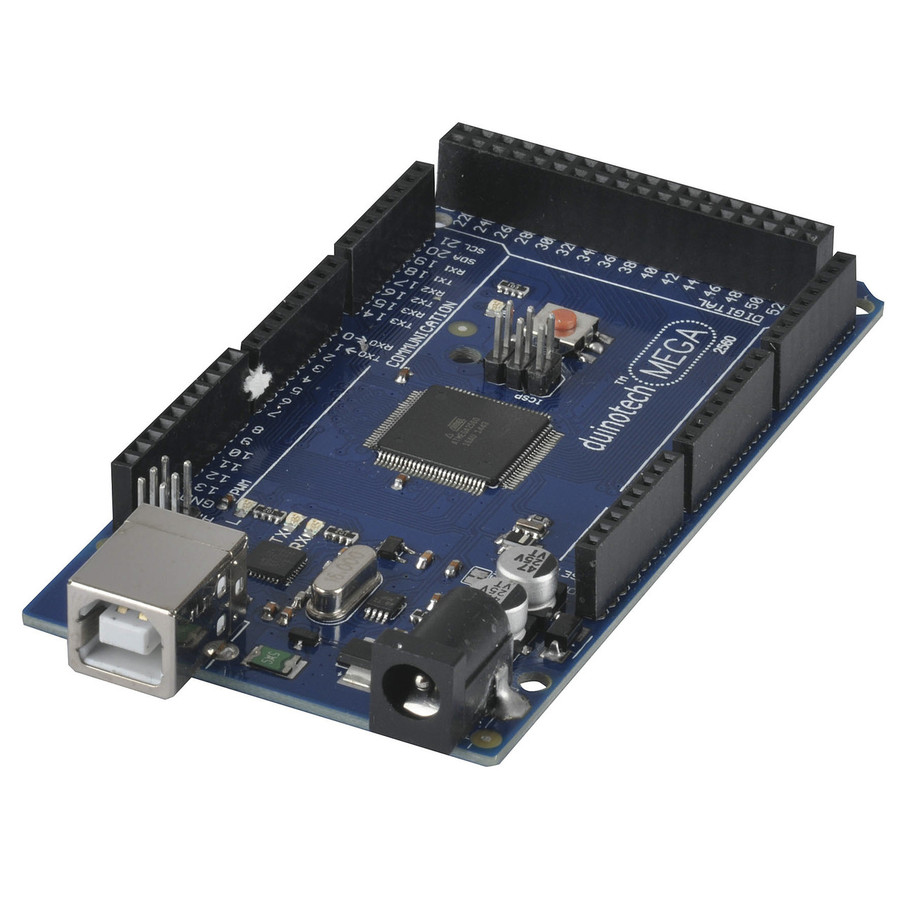

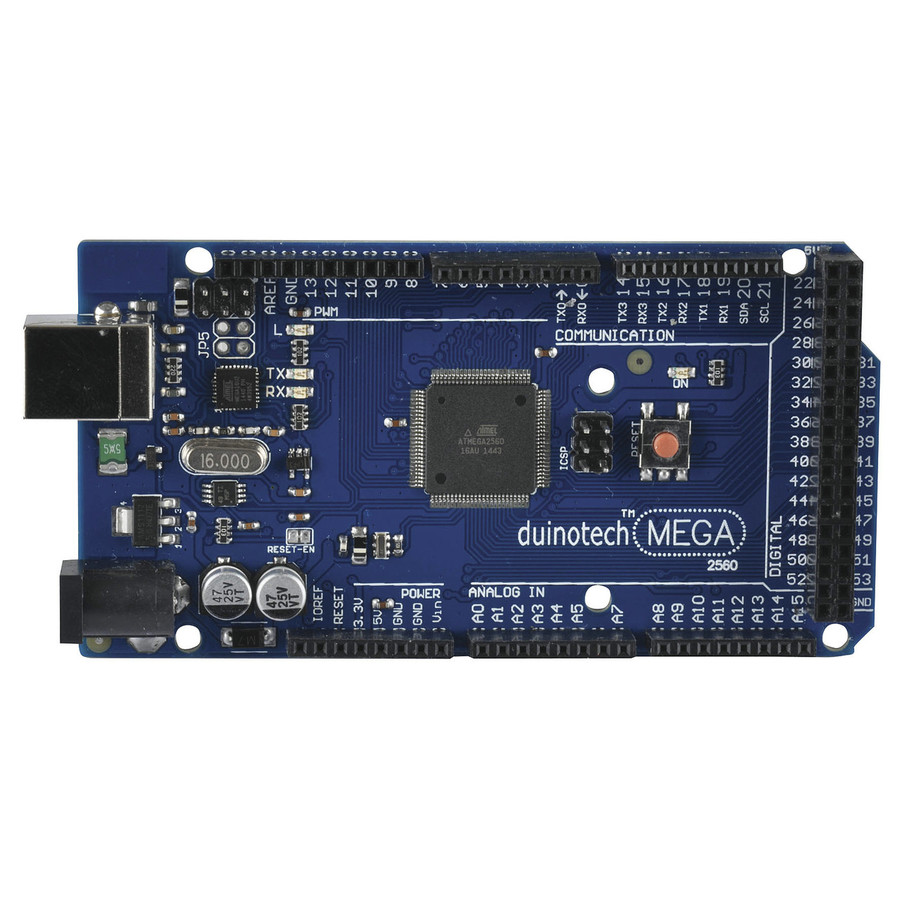

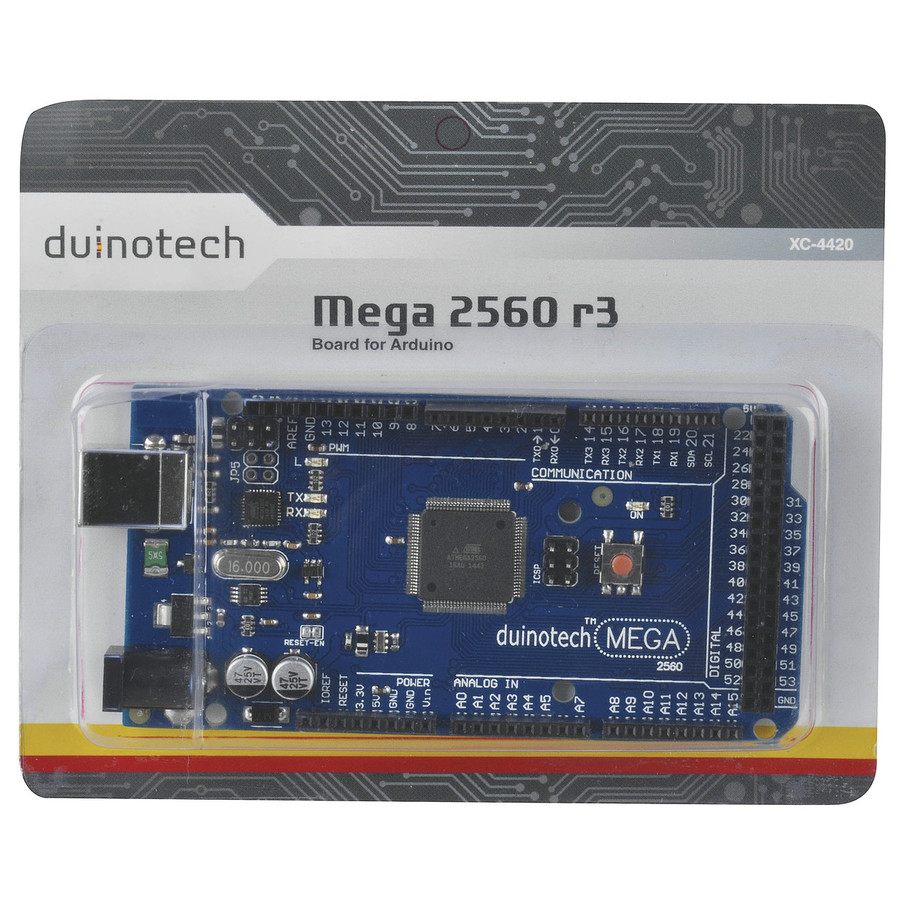

Duinotech MEGA Arduino® compatible board boasts more IO pins, more memory, more PWM outputs, more analog inputs and more serial ports than the UNO board. When you have a project that just needs more space for connections and more memory than the Duinotech Classic (UNO) can deliver, the MEGA has them in spades. And with 8 times the program memory, you have the room to write much larger programs to take full advantage of the increased IO. Despite its elongated size, standard shields will still drop straight onto this board.

Features:
• Fully Arduino® and Duinotech compatible
• ATMega2560 microcontroller
• EEPROM: 256KB
• Speed: 16MHZ
• ATMega16u2 USB-Serial chipset
• IO:
     Digital IO: 54 pins (15 are configurable as Digital or PWM)
     PWM capable: 15 pins
     Analogue inputs: 16pins
     Serial ports: 4 (1 is connected to on-board USB-Serial port)

• Input Voltage:
     5VDC Regulated via USB port or 5V pin
     7-12VDC via vin pin
     On-board regulator supplies 5V when unit is powered via vin pin
