Arduino Compatible 5V Stepper Motor with Controller

$12.25

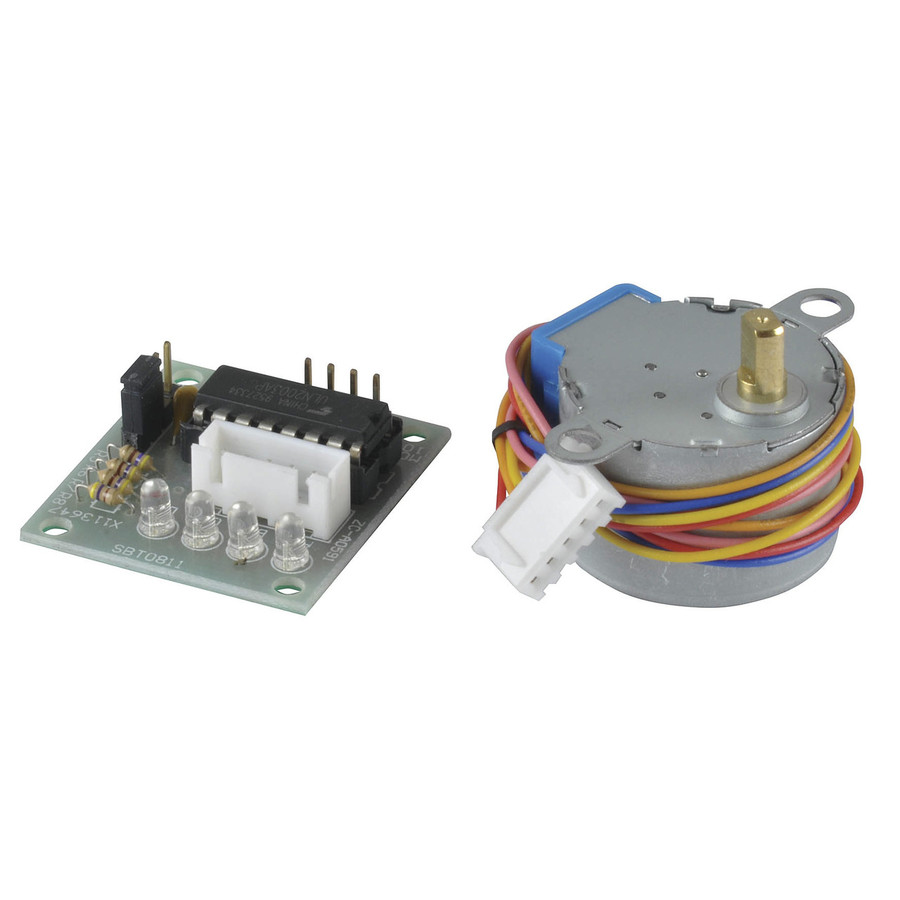

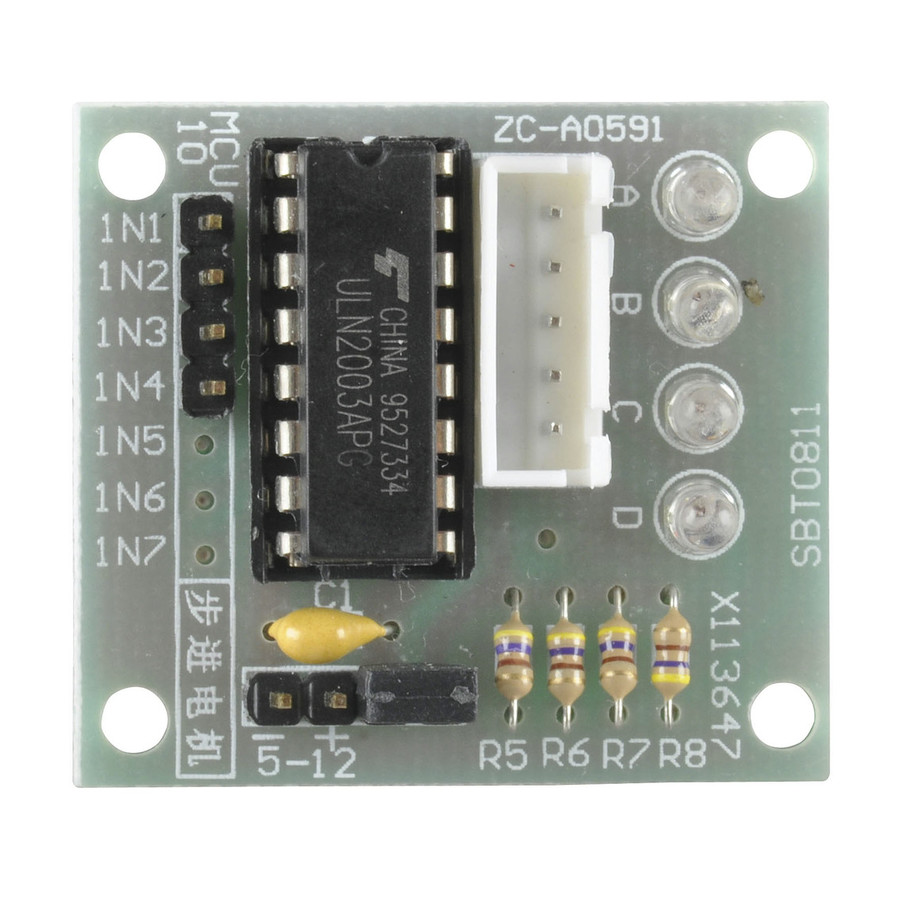

A small and versatile motor and driver set. 5VDC stepper motor controlled by the ULN2003 driver can be used with any Arduino or compatible boards via jumper leads. Four-phase LED indicates the status of the stepper motor.

Out of Stock

Description

Arduino® Compatible

A small and versatile motor and driver set. 5VDC stepper motor controlled by the ULN2003 driver can be used with any Arduino® or compatible boards via jumper leads. Four-phase LED indicates the status of the stepper motor.

•    Stepper motor size: 28mm diameter
•    Step angle 5.625 x 1/64
•    Reduction ratio 1/64
•    LED indicators
•    Maximum speed 30 RPM
•    Nominal torque 3Ncm

    Specifications

    Product Dimensions

    Length
    		 35mm
    Height
    		 10mm
    Width
    		 32mm

    Packaged Dimensions

    Packaged Length
    		 14.6cm
    Packaged Width
    		 9.8cm
    Packaged Weight
    		 0.042kg
    Packaged Volume
    		 0.42924l
    Packaged Height
    		 3cm

    Arduino Modules

    Required Supply Voltage
    		 5V

    Product Availability

    Availability
    		 Stocked item
