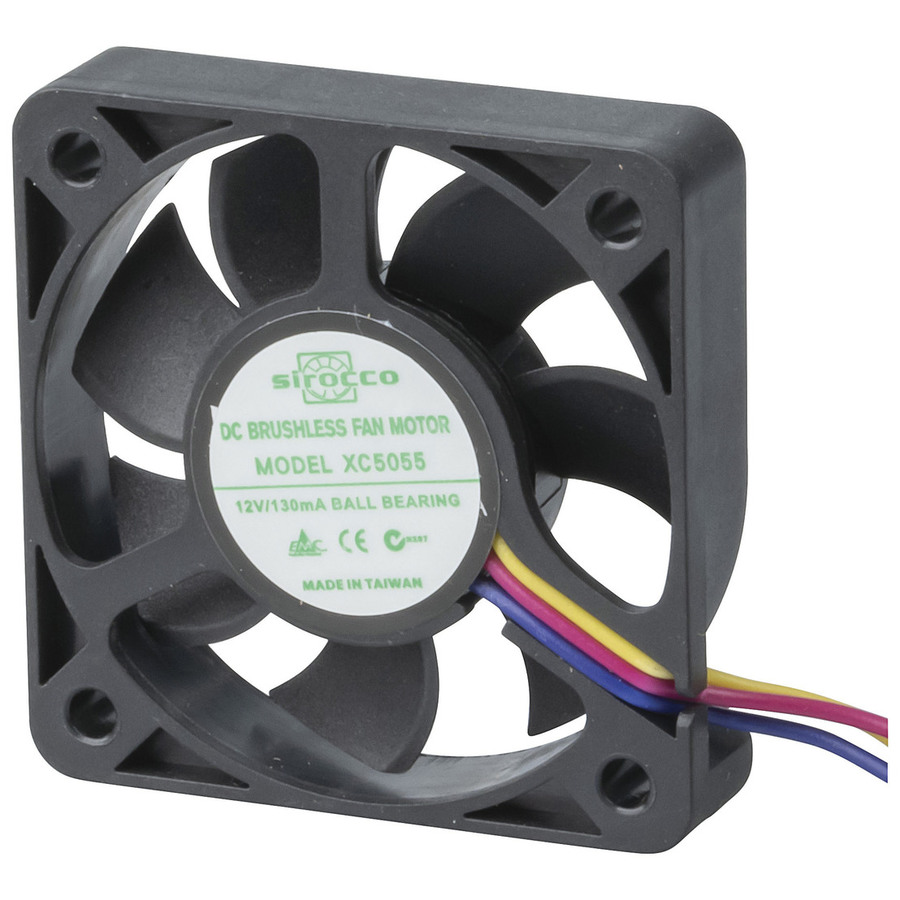

50mm 3 Wire 12V DC Ball Bearing Fan
50mm 3 Wire 12V DC Ball Bearing Fan

CAT. No. XC5055

50mm 3 Wire 12V DC Ball Bearing Fan
product image thumb

50mm 3 Wire 12V DC Ball Bearing Fan

$29.95
The third wire provides a pulse output - 1 pulse per revolution.- Air volume: 0.33 (m3/min) 11.60(CFM) - Noise: 31 dBA- Input: 1.56 Watts - Size: 50 x...
Available

Description

The third wire provides a pulse output - 1 pulse per revolution.


    Specifications

    Ventilation Fans

    Fan Operational Life at 25°C
    		 100000hr
    fan bearing type
    		 Ball
    fan number of wires
    		 3pc
    type of fan
    		 Axial
    fan noise
    		 31dB
    fan connector type
    		 Flyleads
    fan impeller material
    		 Fibreglass Reinforced Plastic
    fan air volume cubic metres
    		 0.33m³/min
    fan housing material
    		 Fibreglass Reinforced Plastic
    fan air volume cubic feet
    		 11.6ft³/min
    Tachometer Output
    fan RPM
    		 5500RPM

    Power from Plugpack

    DC Plugpack Voltage
    		 12V
    Item Connection
    		 Flyleads
    DC Current Draw
    		 130mA

    Product Dimensions

    Length
    		 50mm
    Height
    		 50mm
    Width
    		 10mm

    Packaged Dimensions

    Packaged Length
    		 6.5cm
    Packaged Width
    		 6.5cm
    Packaged Weight
    		 0.038kg
    Packaged Volume
    		 0.12675l
    Packaged Height
    		 3cm

    Product Availability

    Availability
    		 Stocked item

    Downloads

    N/A
