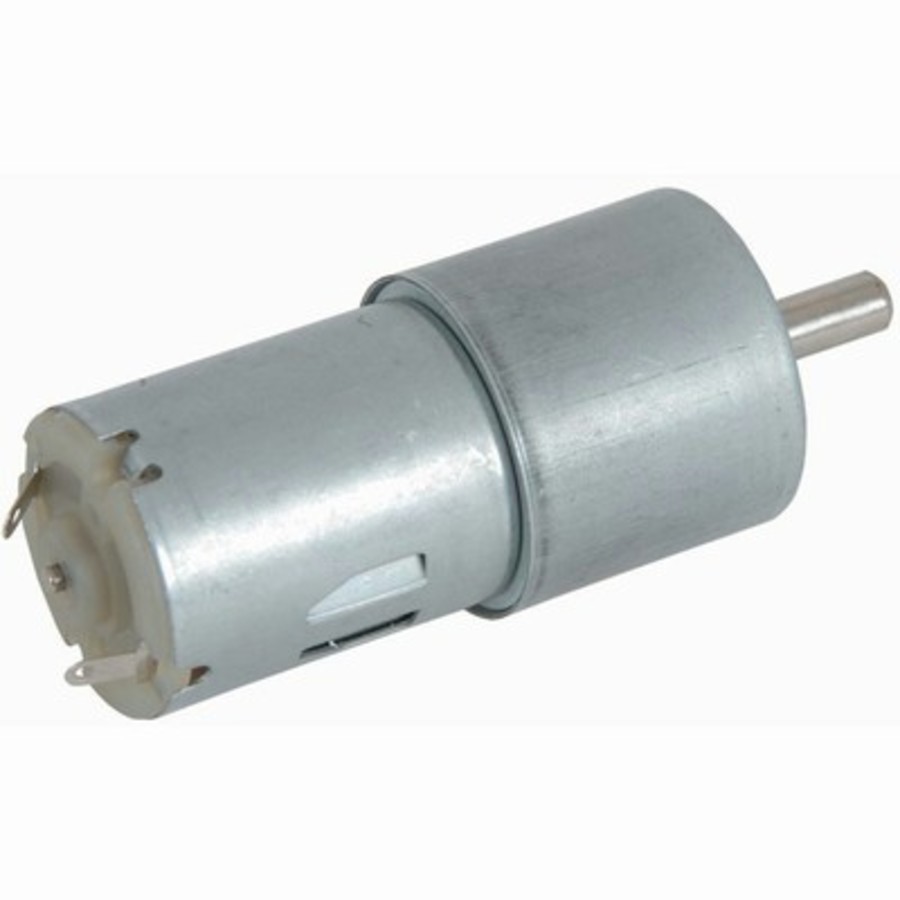

36RPM 12VDC Reversible Gearhead Motor
36RPM 12VDC Reversible Gearhead Motor

CAT. No. YG2734

36RPM 12VDC Reversible Gearhead Motor
product image thumb

36RPM 12VDC Reversible Gearhead Motor

$27.95
Only slightly larger than the YG-2732, but with a massive increase in torque at 36rpm. Ideal for driving wheels or other traction devices.
Available

Description

4K UHD

Mid-range reversible DC motor with gearbox head for simple drivetrain applications. Ideal for driving wheels or other traction devices.

Operating Voltage: 12VDC

At Stall:
Torque:  14kg.cm
Current: 1.7A

    Specifications

    Motor

    Max efficiency
    		 65.9%
    No load RPM
    		 36RPM
    Max. efficiency current
    		 0.32A
    Full load torque
    		 12kg.cm
    Full load current
    		 1.38A
    Max efficiency RPM
    		 29RPM
    Shaft diameter
    		 5mm
    Motor Type
    		 Gearhead
    Motor Nominal Voltage
    		 12V
    Max efficiency power
    		 3.8W
    Shaft length
    		 9mm
    Maximum efficiency torque
    		 2.2kg.cm
    No load current
    		 70mA

    Power Source Details

    DC Voltage
    		 4.5V-18V
    Item connection
    		 Solder Tags

    Gearbox

    Type
    		 Planetary/Orbital
    Adjustable Gear
    Gear Ratio
    		 244:1
    Pre-assembled Gear

    Packaged Dimensions

    Packaged Length
    		 6cm
    Packaged Width
    		 11cm
    Packaged Weight
    		 0.088kg
    Packaged Volume
    		 0.2112l
    Packaged Height
    		 3.2cm

    Product Availability

    Availability
    		 Stocked item

    Downloads

    YG2734-dataSheetMain.pdf
