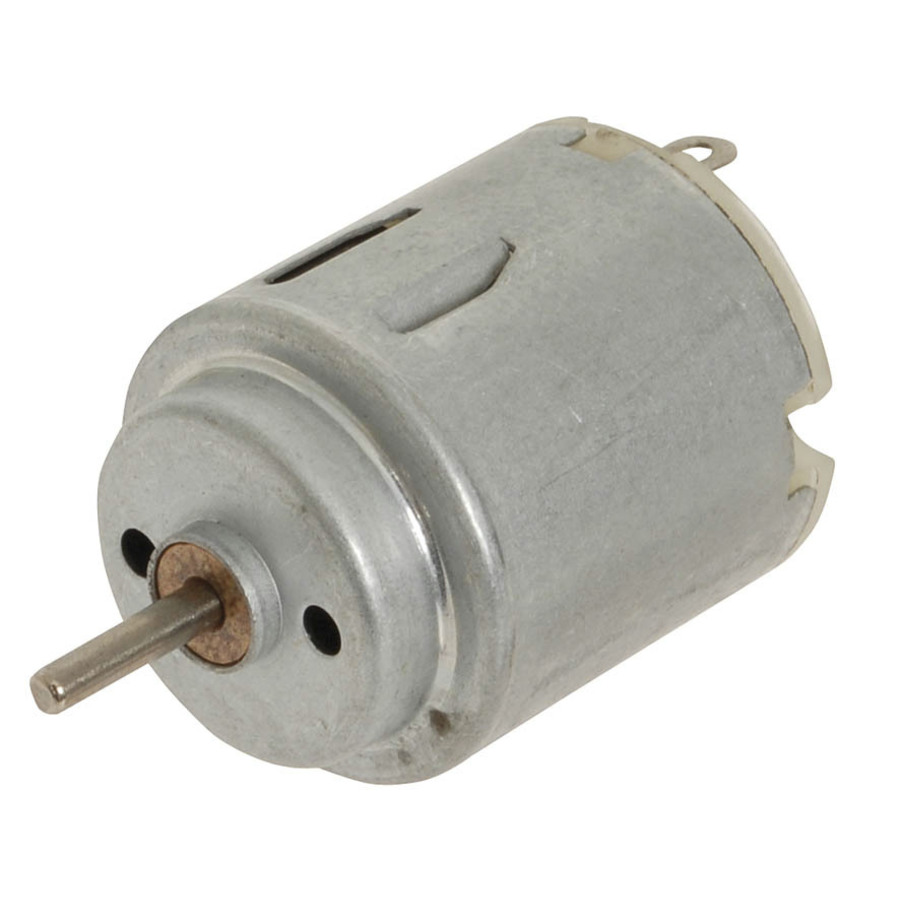

Hobby Motor - Low Torque
Hobby Motor - Low Torque

CAT. No. YM2706

Hobby Motor - Low Torque
product image thumb

Hobby Motor - Low Torque

$4.2
Ideal for hobbyist, experimenters, robotics, replacement, etc.Torque: LowOperating Volts: 1.5- 4.5VNominal Volts: 3VSpeed (no load): 12000rpmCurrent (...
Available

Description

Ideal for hobbyist, experimenters, robotics, replacement, etc.

Operating Volts: 1.5- 4.5V
Size dia: 20mm
Size length: 25mm
Shaft length: 8.1mm
Shaft dia: 2mm.

Handy Tip A note on gearbox speeds

All DC motors and motor gearboxes can change speed to a considerable amount by changing voltage within specified limits. This reduces need for special gear ratios for your application.

    Specifications

    Motor

    Shaft diameter
    		 2mm
    Motor Type
    		 Hobby
    Motor Nominal Voltage
    		 3V
    No load RPM
    		 12000RPM
    Max. efficiency current
    		 0.69A
    Shaft length
    		 25mm
    Max efficiency RPM
    		 8540RPM
    Maximum efficiency torque
    		 2.97g.cm
    No load current
    		 0.28A

    Power Source Details

    DC Voltage
    		 1.5V

    Packaged Dimensions

    Packaged Length
    		 4.5cm
    Packaged Width
    		 2.5cm
    Packaged Weight
    		 0.02kg
    Packaged Volume
    		 0.028125l
    Packaged Height
    		 2.5cm

    Product Availability

    Availability
    		 Stocked item
