CAT. No. YM2763

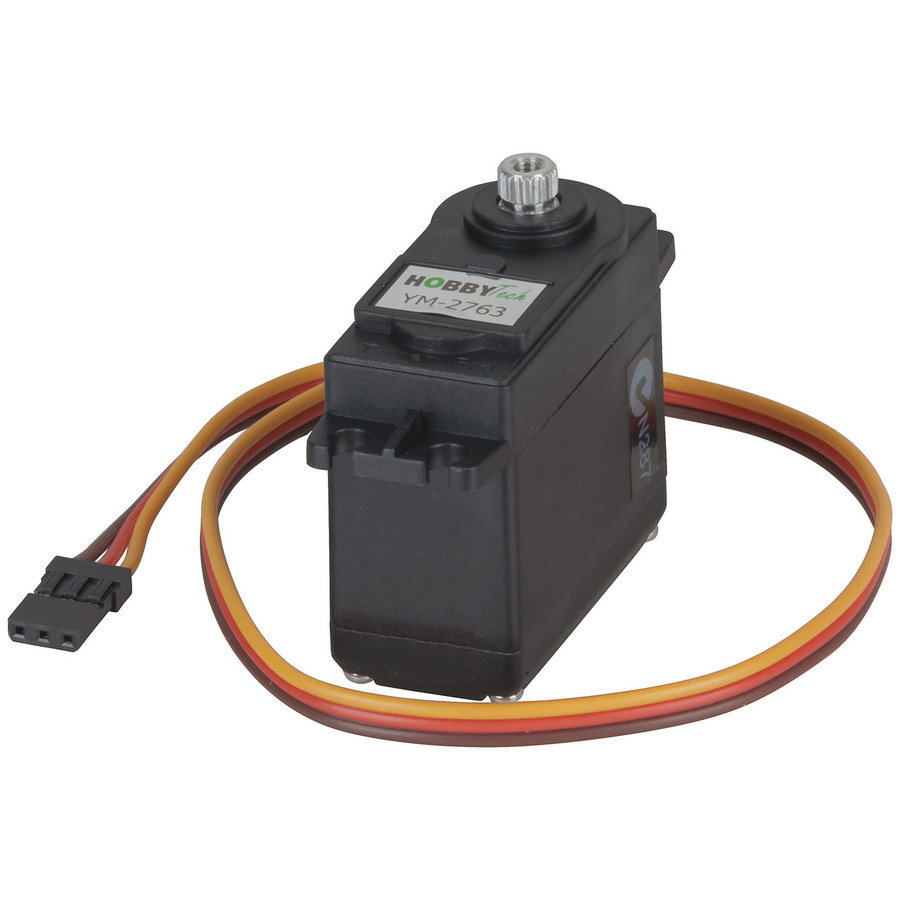

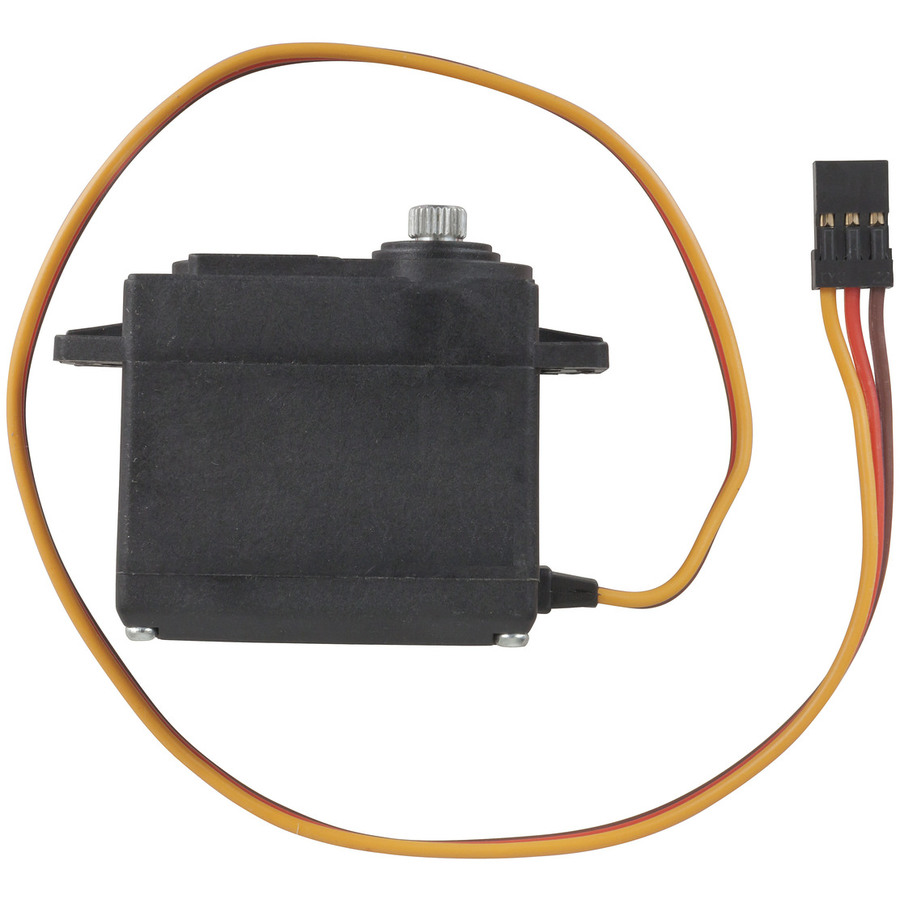

Servo Motor - Standard 6 Volt with Metal Gear - 13kg
product image thumb
product image thumb
product image thumb

Servo Motor - Standard 6 Volt with Metal Gear - 13kg

$44.95
These metal gear servos are an excellent replacement for the standard servos commonly used in all 1/10th and many 1/8th scale remote control cars, or ...
Available

Description

These metal gear servos are an excellent replacement for the standard servos commonly used in all 1/10th and many 1/8th scale remote control cars, or for use in any number of robotics applications. They feature digital control and super-tough metal gear construction with very high torque and super-quick rotational speeds. Perfect for the steering servo on an off-road truck or buggy where precise control and strength are needed.

Features:
• High speed and high torque digital servos
• Metal gears for maximum strength and durability


    Specifications

    Product Dimensions


    Length
    40.7mm
    Height
    42.9mm
    Width
    19.7mm
    Weight
    55g

    Packaged Dimensions


    Packaged Length
    11.1cm
    Packaged Width
    7.6cm
    Packaged Weight
    0.07kg
    Packaged Volume
    0.202464l
    Packaged Height
    2.4cm

    Servo Motor


    Servo Size
    Standard
    Servo Torque
    13 (6V) / 10.5 (4.8V)kg.cm
    Dual Bearing
    Servo Arduino Compatible
    60 Degree Transmit Time
    0.17(6V) / 0.2 (4.8V)sec

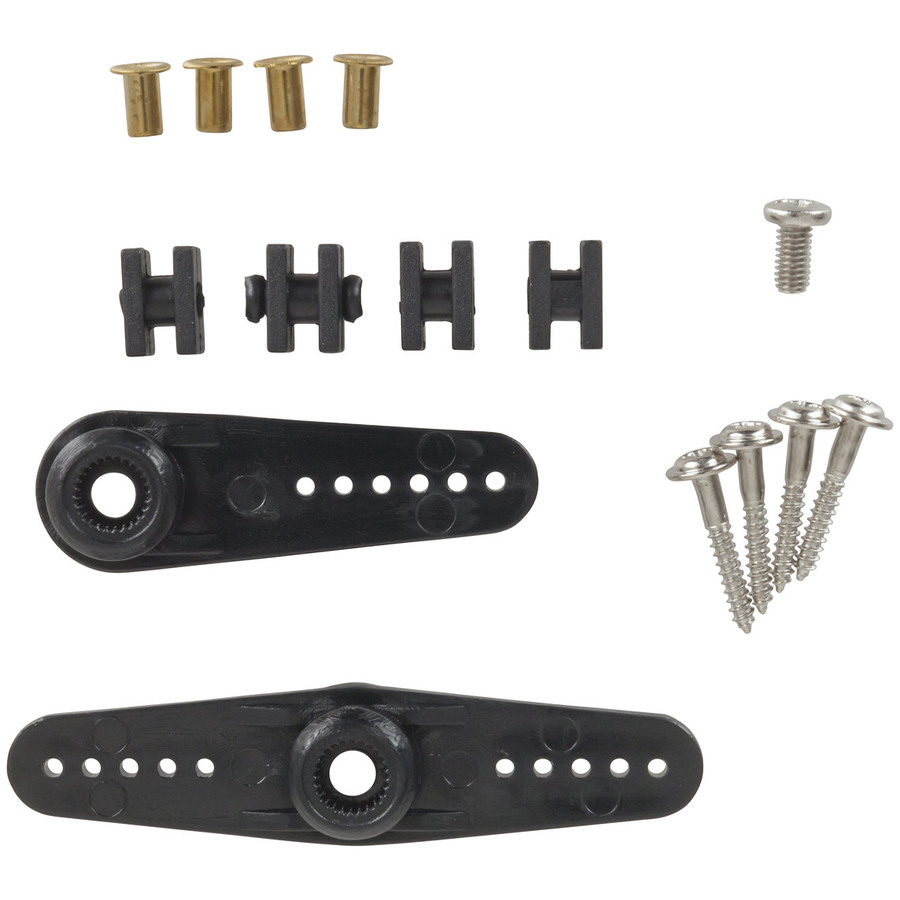

    Servo Horns Included
    Gear Material
    Metal

    Operating Temperature


    Operating Temperature
    0°C-50°C

    Power Source Details


    DC Voltage
    4.8V-7.2V
    Item connection
    Flyleads
    DC Current Draw
    1.2A

    Motor


    Motor Type
    Servo Motor
    Motor Nominal Voltage
    6V
    No load RPM
    58RPM
    Full load torque
    13kg.cm
    Full load current
    1.2A
    No load current
    170mA

    Product Availability


    Availability
    Stocked item
