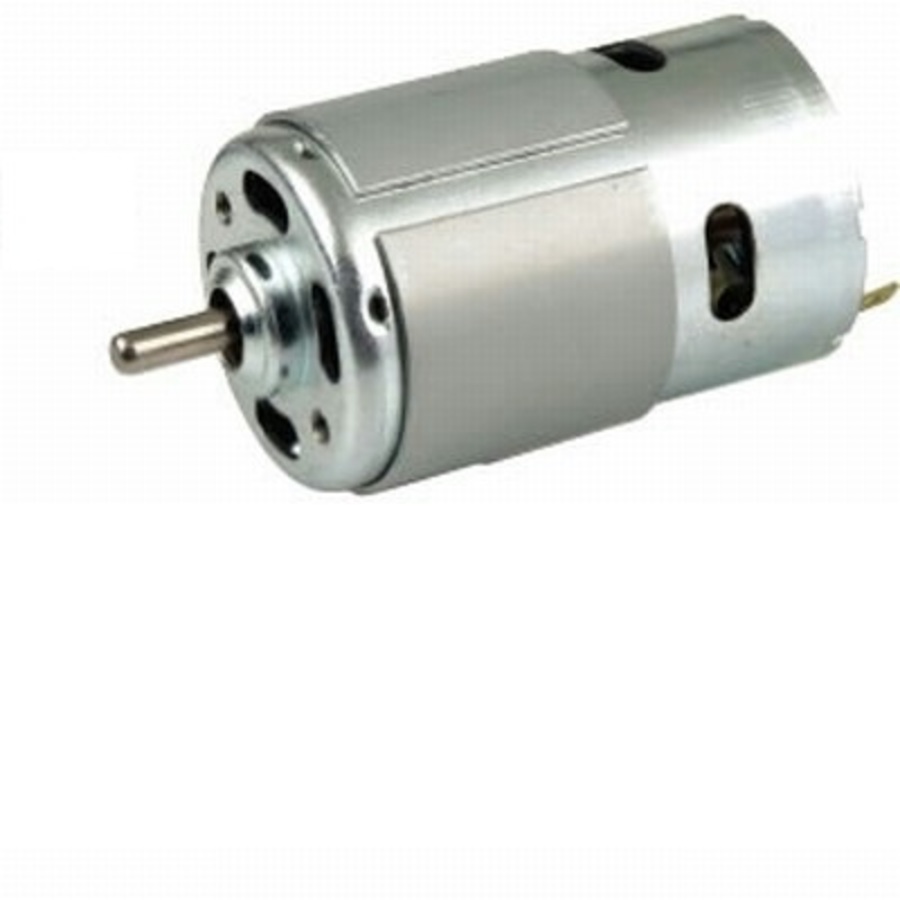

Standard (High Power) D.C. Motors 18800 RPM
Standard (High Power) D.C. Motors 18800 RPM

CAT. No. YM2774

Standard (High Power) D.C. Motors 18800 RPM
product image thumb

Standard (High Power) D.C. Motors 18800 RPM

$27.5
Astonishing speed and power from these compact ferrite magnet types. All units feature hard steel drive shafts and long life design.

Out of Stock

Description

Standard (High Power) D.C. Motors

Astonishing speed and power from these compact ferrite magnet types.

All units feature hard steel drive shafts, long life design and are built in an ISO 9002 quality environment.

At Stall
Torque: 4.8kg.cm
Current: 80.7A


    Specifications

    Motor

    Max efficiency
    		 71%
    No load RPM
    		 18800RPM
    Max. efficiency current
    		 10.5A
    Full load torque
    		 4900g.cm
    Full load current
    		 92A
    Max efficiency RPM
    		 16000RPM
    Shaft diameter
    		 5mm
    Motor Type
    		 High Power
    Motor Nominal Voltage
    		 12V
    Max efficiency power
    		 126W
    Shaft length
    		 19mm
    Maximum efficiency torque
    		 778g.cm
    No load current
    		 2.6A

    Power Source Details

    DC Voltage
    		 6V

    Product Dimensions

    Length
    		 78mm
    Diameter
    		 42mm

    Packaged Dimensions

    Packaged Length
    		 10cm
    Packaged Width
    		 6cm
    Packaged Weight
    		 0.277kg
    Packaged Volume
    		 0.24l
    Packaged Height
    		 4cm

    Product Availability

    Availability
    		 Stocked item

    Downloads

    YM2774-dataSheetMain.pdf
