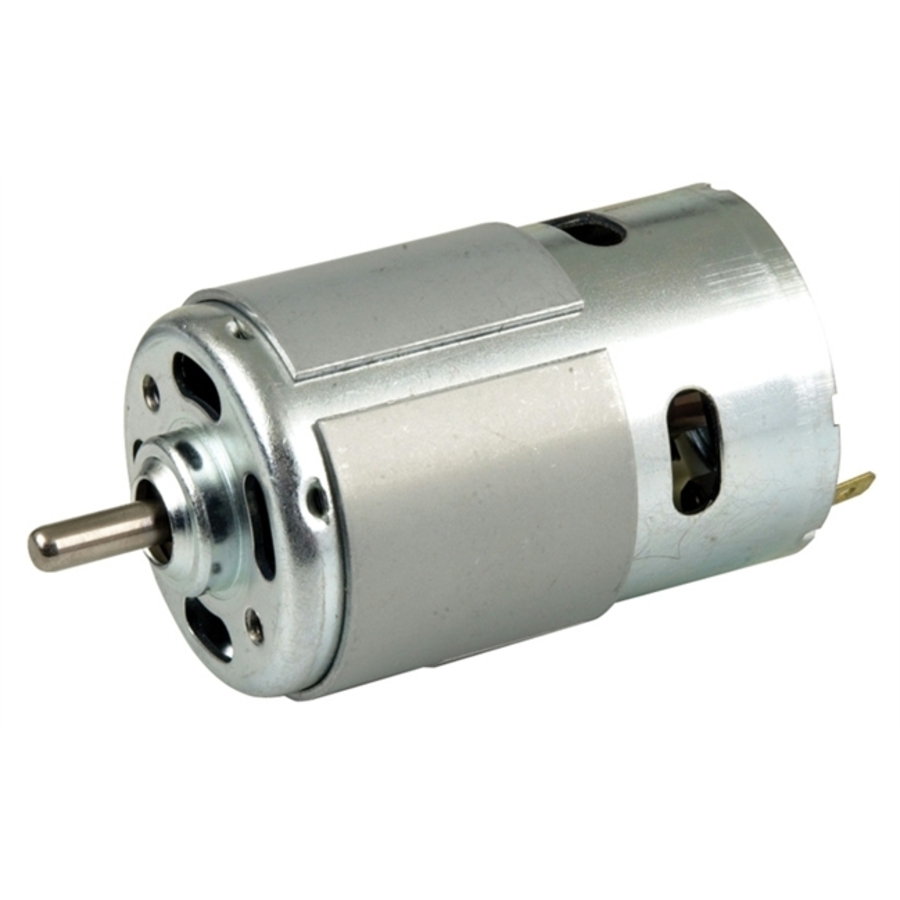

Standard (High Power) D.C. Motors 10200 RPM
Standard (High Power) D.C. Motors 10200 RPM

CAT. No. YM2776

Standard (High Power) D.C. Motors 10200 RPM
product image thumb

Standard (High Power) D.C. Motors 10200 RPM

$24.95
Astonishing speed and power from these compact ferrite magnet types. All units feature hard steel drive shafts and long life design.
Available

Description

Astonishing speed and power from these compact ferrite magnet types.

All units feature hard steel drive shafts, long life design and are built in an ISO 9002 quality environment.

Operating Voltage: 12VDC

At Stall:
Torque: 6.5kg.cm
Current: 63A


    Specifications

    Motor

    Max efficiency
    		 69%
    No load RPM
    		 9700RPM
    Max. efficiency current
    		 5.3A
    Full load torque
    		 6000g.cm
    Full load current
    		 57A
    Max efficiency RPM
    		 8500RPM
    Shaft diameter
    		 5mm
    Motor Type
    		 High Power
    Motor Nominal Voltage
    		 12V
    Max efficiency power
    		 63.5W
    Shaft length
    		 19mm
    Maximum efficiency torque
    		 709g.cm
    No load current
    		 1.3A

    Power Source Details

    DC Voltage
    		 6V-18V

    Product Dimensions

    Length
    		 85mm
    Diameter
    		 42mm

    Packaged Dimensions

    Packaged Length
    		 9.2cm
    Packaged Width
    		 4.4cm
    Packaged Weight
    		 0.358kg
    Packaged Volume
    		 0.18216l
    Packaged Height
    		 4.5cm

    Product Availability

    Availability
    		 Stocked item

    Downloads

    YM2776-dataSheetMain.pdf
