CAT. No. YN8398

AX1800 Dual-Band Smart Wi-Fi 6 Router with Touchlink and Giga LAN
product image thumb

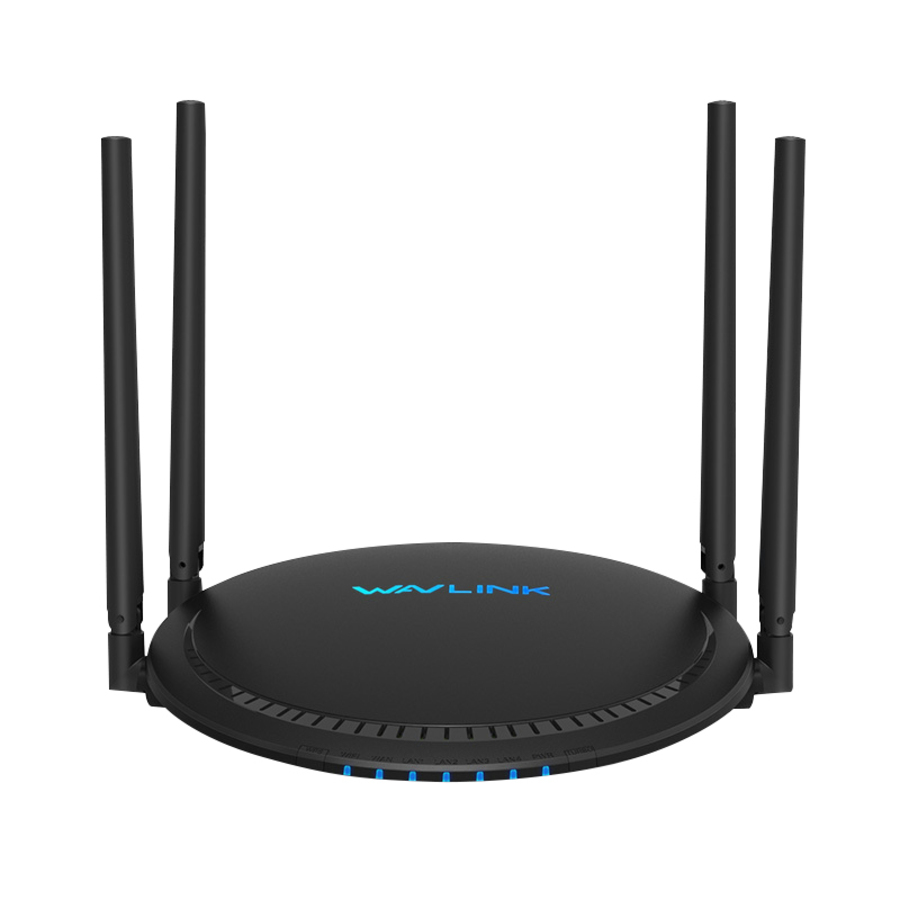

AX1800 Dual-Band Smart Wi-Fi 6 Router with Touchlink and Giga LAN

$149
WL-WN531AX2 Wi-Fi 6 AX1800 Dual band Smart Touchlink Mesh Router Complies with IEEE 802.11ax/ac/a/n/g/b standards. Provides 4 10/100/1000Mbps Auto-Negotiation Ethernet WAN port and LAN ports.

Out of Stock

Description

With more devices in the home and small offices needing to connect to the internet, it is important that your network router keeps up with the demand. This smart dual-band router provides 2.4GHz and 5GHz bands simultaneously with fast and steady performance. The 2.4GHz 802.11ax band supports speeds up to 574Mbps, which is 90% faster than 802.11n (300Mbps) routers, and the 5GHz 802.11ax band supports speeds up to 1201Mbps, which is 40% faster than 802.11ac (867Mbps) routers. Features include MU-MiMO technology to provide Wi-Fi to multiple devices simultaneously, four 5dBi omni-directional antennas for wide signal coverage, and a USB3.0 port enables you to connect a hard drive to share music, movies and documents easily to devices across your network. Four full Gigabit ports provide robust networking for non-wireless devices.

- Complies with IEEE 802.11ax/ac/a/n/g/b standards.
- MU-MIMO TX/RX; MU-OFDMA TX/RX; STBC, LDPC, TX Beamformmer and RX BeamFormer.
- Simultaneous dual AX bands of 573Mbps@2.4GHz and 1201Mbps@5GHz; backward compatible with AC band of 867Mbps@5GHz, N band of 300Mbps@2.4G.
- Supports PPPoE, Dynamic IP, static IP access to the Internet.
- Built-in DHCP server & client with automatic dynamic IP address distribution.
- Provides 10/100/1000Mbps Auto-Negotiation Ethernet WAN port and LAN ports.
- External antennas provide omni-directional stable signal and superior wireless coverage.
- Cloud APP supports device management functions for easy control.

FEATURES
- Dual Band
- 4 x Gigabit LAN Ports
- 1 x Gigabit WAN Port
- USB3.0 Port



    Specifications

    Network Infrastructure Hardware


    Speed of Transmission
    1800Mb/s
    Type of Hardware
    router
    Number of USB ports
    1pc, 1 ports

    LAN Details


    LAN Standard
    1000BASE-T (10/100/1000Mbps)
    LAN Port Type
    RJ45
    Number of LAN Ports
    4 ports

    USB Connectivity


    Supported USB Standards
    USB 3.0
    USB Interface Functions
    Media Playback
    USB Port Types
    USB 3 Type A
    Number of USB ports
    1pc, 1 ports

    WAN Details


    Number of WAN Ports
    1pc
    WAN Port Type
    RJ45

    Power from Plugpack


    DC Plugpack Voltage
    12V
    Suitable PSU Included
    Item Connection
    Barrel Plug
    PSU Powers
    Main Product
    AC Plugpack Voltage
    110V-240V
    DC Current Draw
    1A

    Wireless LAN (Wi-Fi)


    Supported Wi-Fi Modes
    802.11ax, 802.11ac, 802.11n
    Wi-Fi Security
    WPA3-PSK, WPA2-PSK

    Wireless Transmission


    Transmission frequency
    5GHz, 2.4GHz

    Product Availability


    Availability
    Stocked item

    Product Dimensions


    Length
    200mm
    Height
    30mm
    Width
    200mm

    Packaged Dimensions


    Packaged Length
    28.4cm
    Packaged Width
    24.9cm
    Packaged Weight
    0.94kg
    Packaged Volume
    6.223008l
    Packaged Height
    8.8cm
    Warranty: 12 Months
