CAT. No. YN8410

PoE Passive Adaptor Kit
product image thumb
product image thumb
product image thumb
product image thumb

PoE Passive Adaptor Kit

$19.95

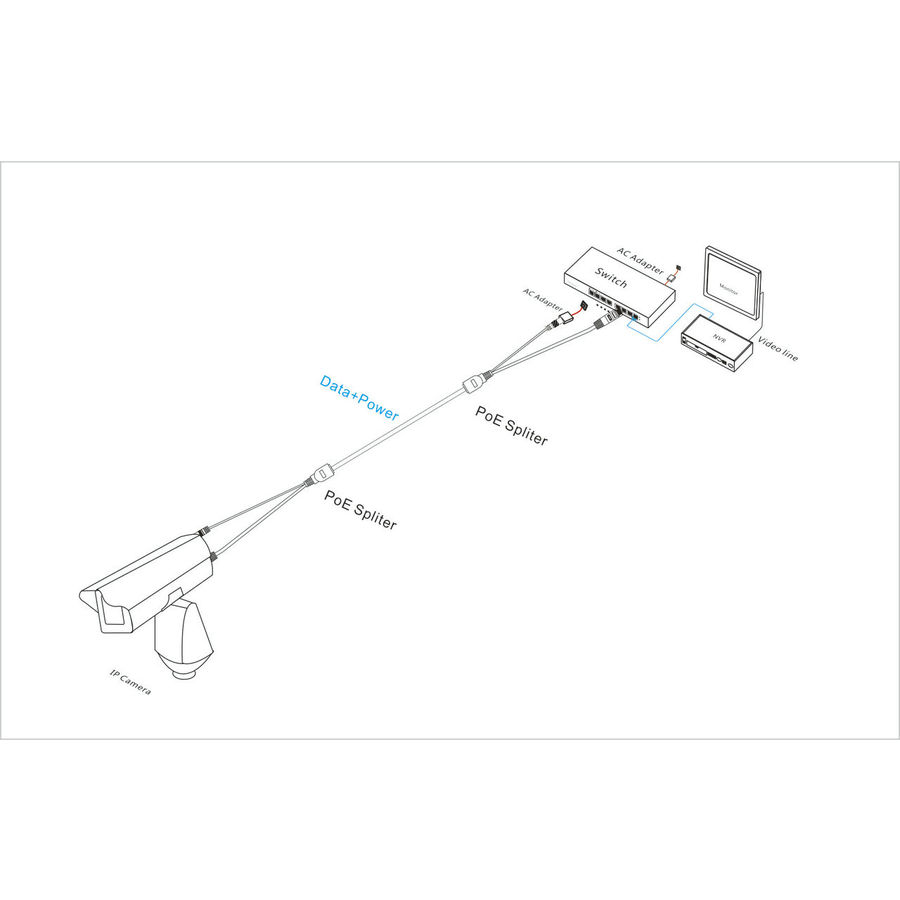

PoE is a technology that allows transfer of electrical power, along with data, over twisted pair cables. Simply connect a power supply of the required voltage via the 2.1mm DC connector, then tap it where you need it at the other end.

Out of Stock

Description

1 Year Warranty

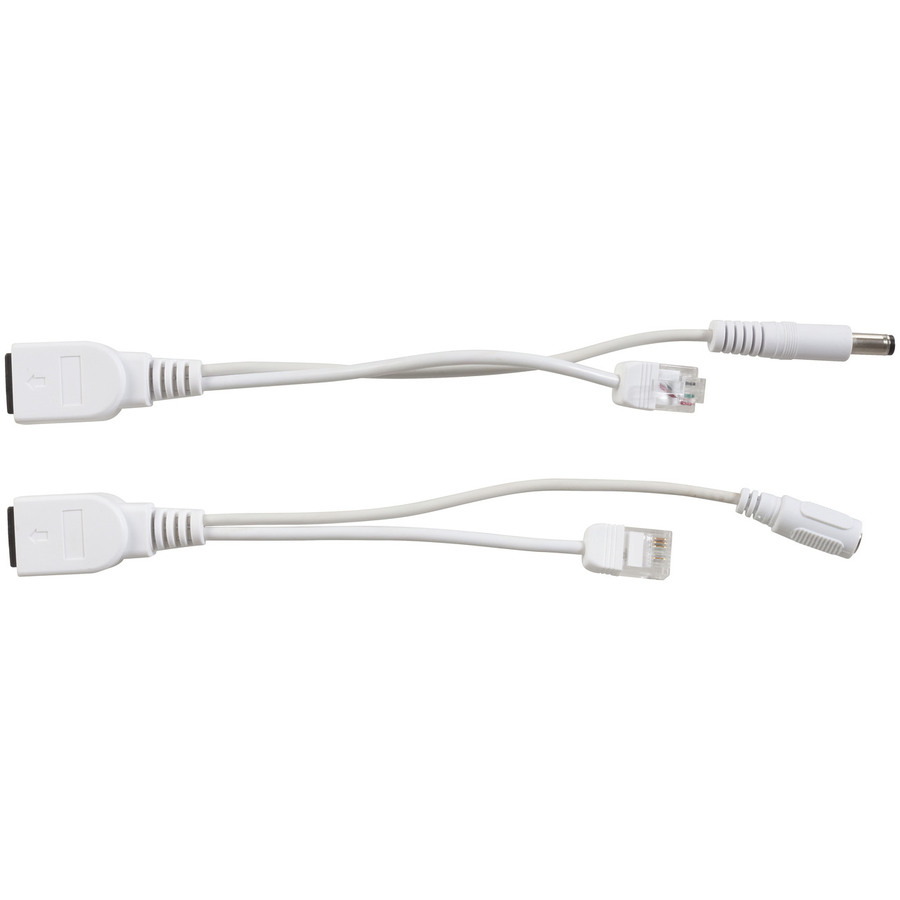

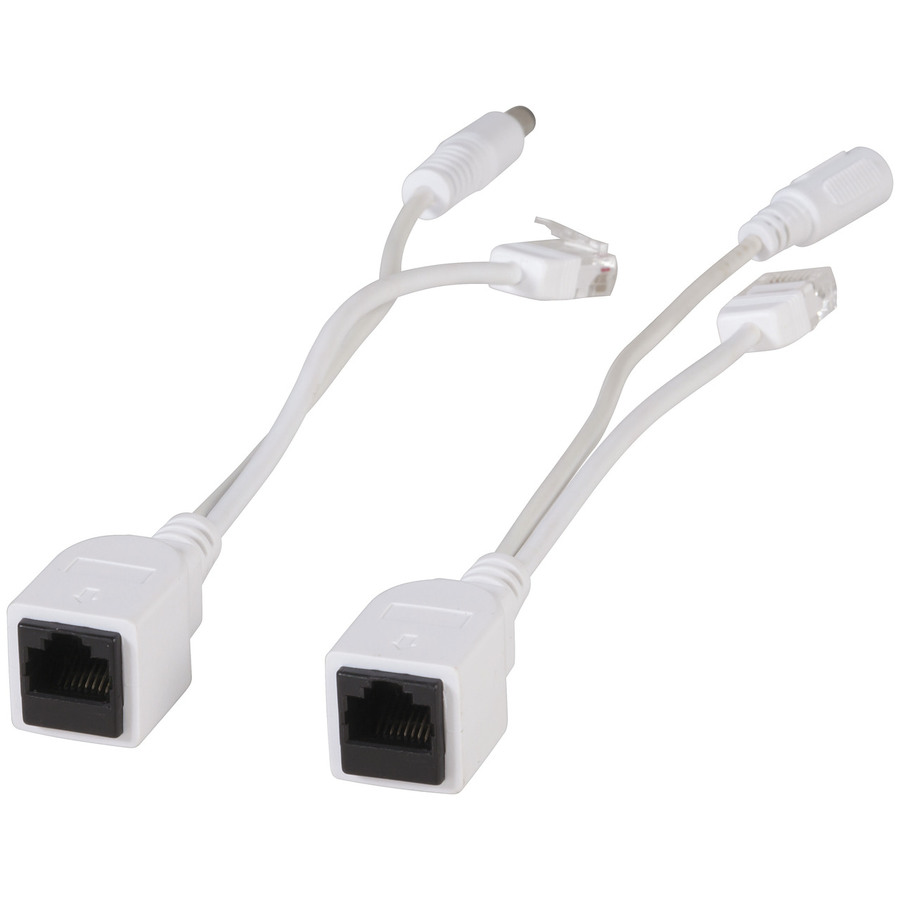

PoE (Power Over Ethernet) is a technology that allows transfer of electrical power, along with data, over twisted pair cables. Finding a power supply is a common obstacle in LAN installations: PoE allows you to power wireless access points or other equipment via a Cat 5 cable without the need to have a separate power source available. You simply connect a power supply of the required voltage via the 2.1mm DC connector, then tap it where you need it at the other end. Kit includes power input lead with 2.1mm DC socket and power output lead with 2.1mm DC plug.

Specifications:
Input Voltage: 5/12/24/48VDC
Output Voltage: 5/12/24/48VDC
Output Current: 1.5A
PoE Output Power: 15.4W

    Specifications

    Network Infrastructure Hardware


    Speed of Transmission
    100Mb/s
    Power over Ethernet
    Maximum Cable Length
    100m

    Power from Plugpack


    DC Plugpack Voltage
    5V-48V
    Connection Size (Inner Diameter)
    2.1mm
    Item Connection
    Barrel Plug
    DC Current Draw
    1.5A

    Product Dimensions


    Length
    48mm
    Height
    23mm
    Width
    20mm

    Packaged Dimensions


    Packaged Length
    15cm
    Packaged Width
    11cm
    Packaged Weight
    0.06kg
    Packaged Volume
    0.33l
    Packaged Height
    2cm

    Product Availability


    Availability
    Stocked item
    Warranty: 12 Months
