CAT. No. YN8564

WiFi Mesh Network AC1200 Base + Satellite Kit
product image thumb

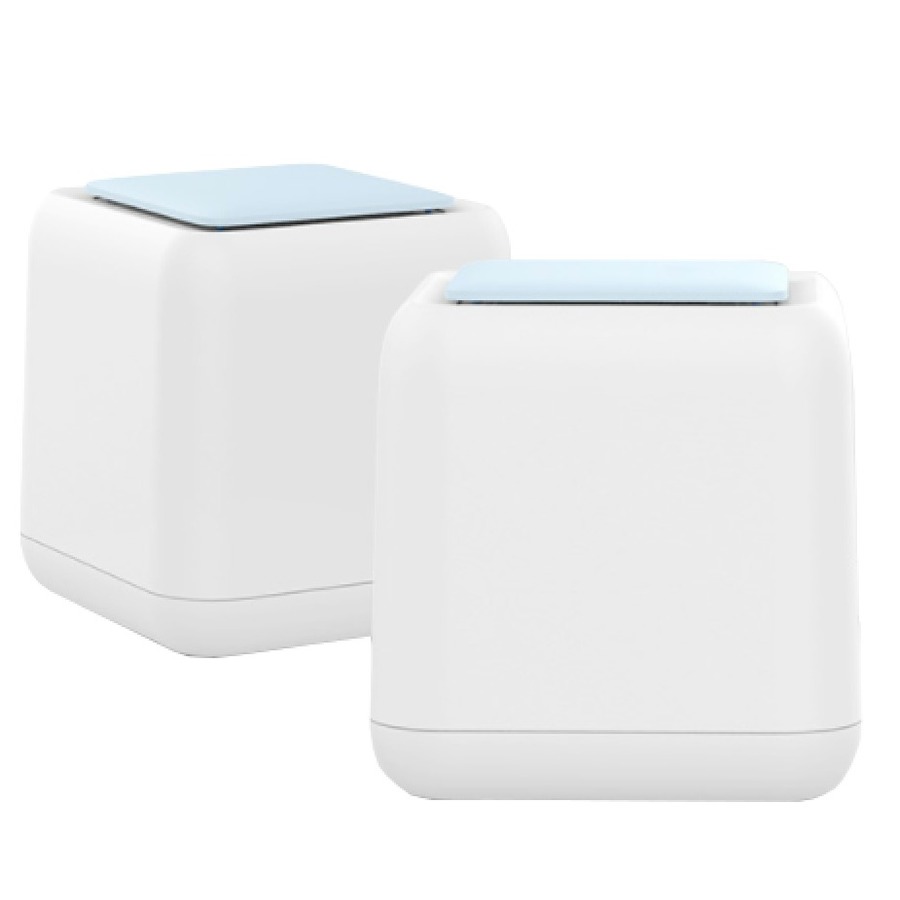

WiFi Mesh Network AC1200 Base + Satellite Kit

$259
Affordable Wi-Fi Mesh Network System with Base and Single Satellite. Can be expanded with additional satellite modules.

Out of Stock

Description

Wi-Fi Compatible

Provide seamless Wi-Fi in your entire home with this Mesh Wi-Fi system. As you move about your house with your Smartphone, laptop, and other portable Wi-Fi devices the mesh system will automatically connect you to the best possible signal to ensure the fastest speeds, all the time. The kit is provided with 1 x Mesh Router and 1 x Satellite module for a coverage area up to 260 square metres. Additional Satellite modules are sold separately for larger homes or for homes with a structure that reduces the transmission range. Includes all of the modern features you would expect, such as touch link function, simultaneous 5G, and 2.4G connections, and up to 1Gbps speeds.

Features:
- AC1200 Communication
- Can be expanded with additional satellite modules
- Complies with IEEE 802.11ac/a/n/g/b standards
- Simultaneous 5G 867Mbps and 2.4G 300Mbps connections for 1167Mbps of total available bandwidth
- 4 x Internal antennas provide omnidirectional stable signal and superior wireless coverage
- Provides 10/100/1000Mbps Auto-Negotiation Ethernet WAN/LAN ports
- Supports by PPPoE, Dynamic IP,static IP and WISP access to the Internet
- Built-in DHCP server with automatic dynamic IP address distribution
- Supports touch link function, easy to share Wi-Fi with your devices

Specifications:
Frequency Range: 2.4GHz & 5GHz
Transmit Power: 20DBm Max.
Sensitivity: 802.11b: -93dBm /802.11g: -73dBm /802.11a: -76dBm
Speed:
Band 1: 300Mbps @ 2.4GHz
Band 2: 867Mbps @ 5GHz
Wireless Security: WPA / WPA2, WPA-PSK/ WPA2-PSK encryption
Antennas: 4x3dBi Omni Directional Internal
Coverage Area: 260m2
Ports:
Router: 1 x10/100/1000Mbps WAN PORT, 1 x10/100/1000Mbps LAN PORT, 1x10/100Mbps LAN PORTS
Satellite: 2 x10/100/1000Mbps LAN PORT, 1x10/100Mbps LAN PORTS
Flash: 64MB
RAM: 512MB DDR2

    Specifications

    Additional Dimensions


    Length
    90mm, 90mm
    Height
    95mm, 95mm
    Dimensions details
    Mesh Network Device 2
    Width
    90mm, 90mm
    Weight
    291g, 291g

    Network Infrastructure Hardware


    Speed of Transmission
    867Mb/s
    Type of Hardware
    Hub

    Power from Plugpack


    DC Plugpack Voltage
    5V
    Suitable PSU Included
    AC Plugpack Voltage
    100V-240V
    DC Current Draw
    2A

    IT Connectivity


    Data Transfer Rate
    11Mb/s-867Mb/s

    Product Dimensions


    Length
    90mm, 90mm
    Height
    95mm, 95mm
    Width
    90mm, 90mm
    Dimension details
    Mesh Network Device 1
    Weight
    291g, 291g

    Product Availability


    Availability
    Stocked item

    Packaged Dimensions


    Packaged Length
    31.5cm
    Packaged Width
    11.7cm
    Packaged Weight
    1.164kg
    Packaged Volume
    5.08599l
    Packaged Height
    13.8cm

    Downloads
