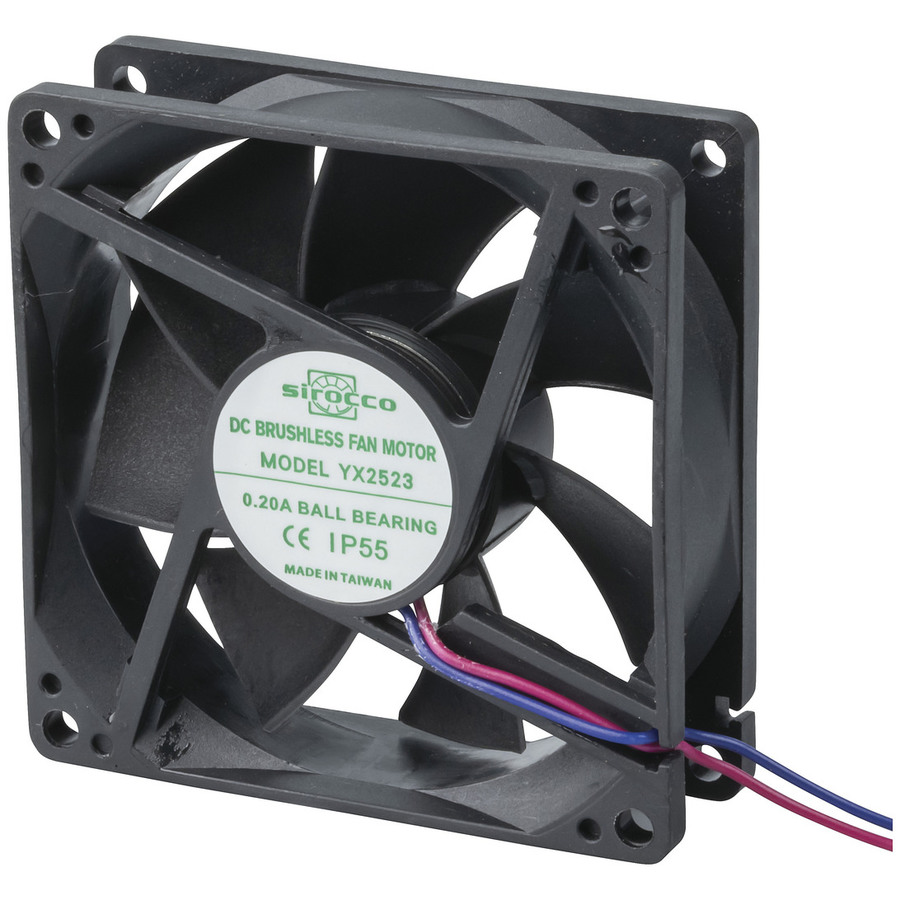

IP55 80mm 12V DC Ball Bearing Fan
IP55 80mm 12V DC Ball Bearing Fan

CAT. No. YX2523

IP55 80mm 12V DC Ball Bearing Fan
product image thumb

IP55 80mm 12V DC Ball Bearing Fan

$34.95
IP 55 rating on a fan which is extremely important, particularly when the fan is located in an environment where dust, fine dirt particles, soot etc c...
Available

Description

Features:

IP 55 rating on a fan which is extremely important, particularly when the fan is located in an environment where dust, fine dirt particles, soot etc can quickly clog up a standard fan and bring it to failure early in life.

Input: 3 watts


    Specifications

    Ventilation Fans

    Fan Operational Life at 25°C
    		 100000hr
    fan bearing type
    		 Ball
    fan number of wires
    		 2pc
    type of fan
    		 Axial
    fan noise
    		 35dB
    fan connector type
    		 Flyleads
    fan impeller material
    		 Fibreglass Reinforced Plastic
    fan air volume cubic metres
    		 1.2m³/min
    fan housing material
    		 Fibreglass Reinforced Plastic
    fan air volume cubic feet
    		 42ft³/min
    Tachometer Output
    fan RPM
    		 3100RPM

    Power from Plugpack

    DC Plugpack Voltage
    		 12V
    DC Current Draw
    		 200mA

    Product Dimensions

    Length
    		 80mm
    Width
    		 80mm
    Depth
    		 25mm

    Packaged Dimensions

    Packaged Length
    		 9.2cm
    Packaged Width
    		 9.2cm
    Packaged Weight
    		 0.092kg
    Packaged Volume
    		 0.313168l
    Packaged Height
    		 3.7cm
