4046 Phase Lock Loop CMOS IC
4046 Phase Lock Loop CMOS IC

CAT. No. ZC4046

4046 Phase Lock Loop CMOS IC

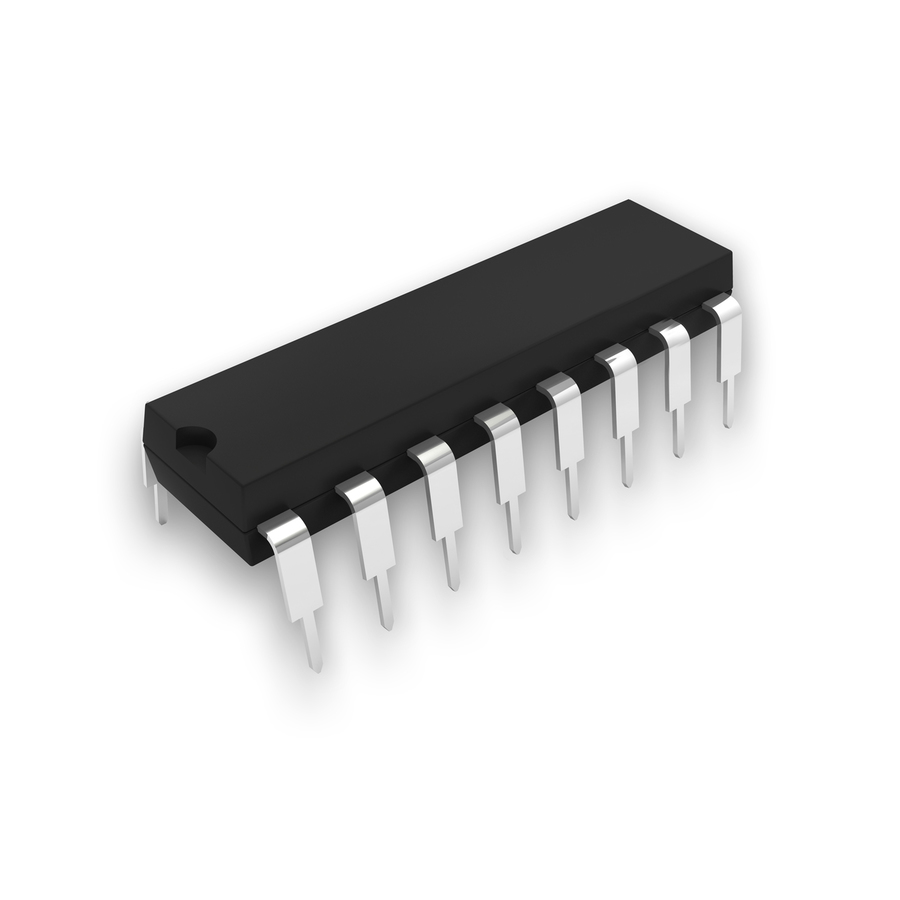

product image thumb

4046 Phase Lock Loop CMOS IC

$2.25
Part Pins Description4046 16 Micropower phase locked loop (PLL)...
Available

Description

Part Pins Description
4046 16 Micropower phase locked loop (PLL)

Handy Tip Basic Logic Functions

    Specifications

    Packaged Dimensions

    Packaged Length
    		 2.2cm
    Packaged Width
    		 1.1cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 0.002904l
    Packaged Height
    		 1.2cm

    Integrated Circuit (IC)

    IC Static Sensitive
    IC Pin Count
    		 16 units
    IC op amp
    IC supply voltage
    		 3V

    Active Component

    Active marking code type
    		 Printed
    Active mount type
    		 Through Hole
    minimum temperature
    		 -40°C
    Active number of legs
    		 16 count
    max temperature
    		 85°C
    component package
    		 DIL
    Active connector type
    		 Solder Legs

    Product Availability

    Availability
    		 Stocked item

    Downloads

      Articles

    ZC4046-dataSheetMain.pdf
