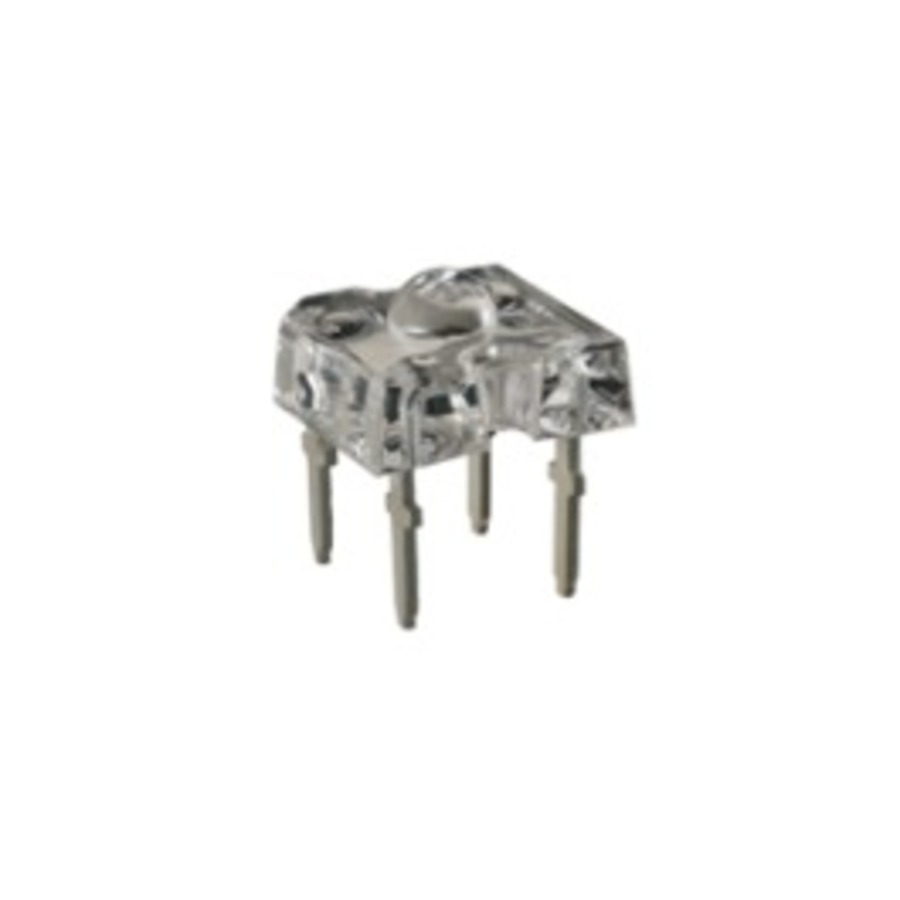

White 5200mcd Superflux LED
White 5200mcd Superflux LED
White 5200mcd Superflux LED

CAT. No. ZD0020

White 5200mcd Superflux LED
product image thumb
product image thumb

White 5200mcd Superflux LED

$6.5
Superior light output across a wide angle for LED arrays - 5200mCd light output - 60° view angle
Available

Description

LED

Suplerflux LEDs provide maximum flux on PCB. They have good resistance against moving and the lowest thermal resistance.

    Specifications

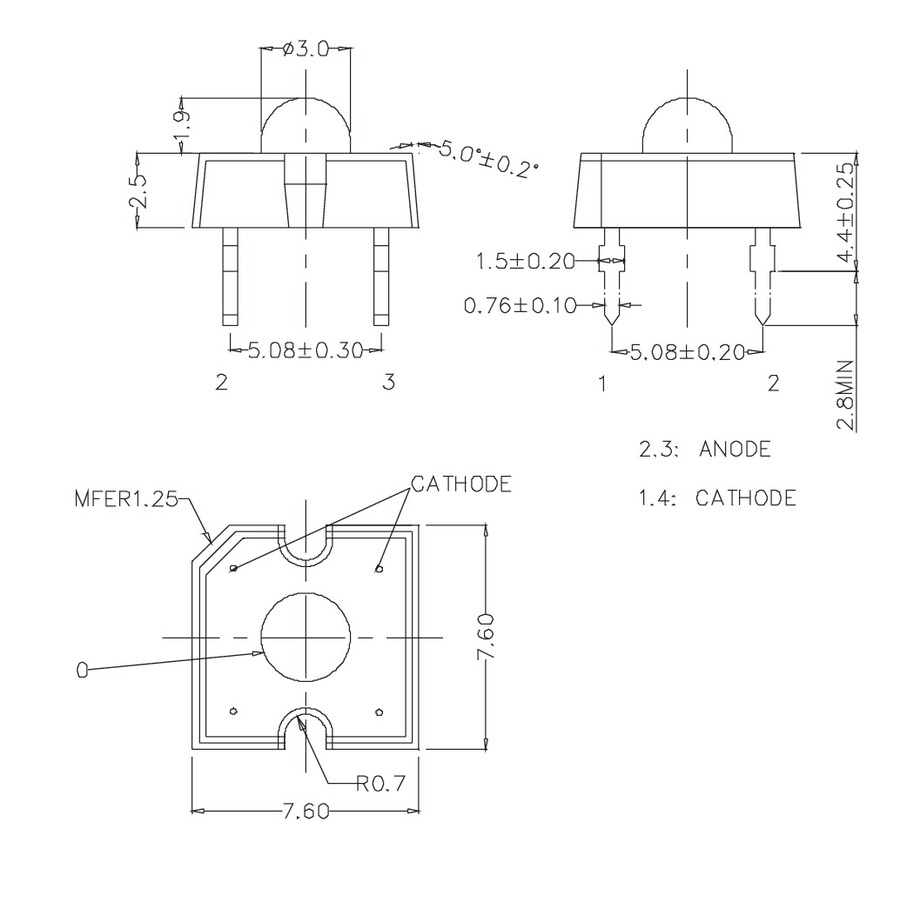

    Product Dimensions

    Length
    		 7.6mm
    Height
    		 4.4mm
    Width
    		 7.6mm

    Packaged Dimensions

    Packaged Length
    		 0.5cm
    Packaged Width
    		 0.5cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 1.8E-4l
    Packaged Height
    		 0.7cm

    LED Components

    P<sub>(typ)</sub> - Typical Operating Power
    		 154W
    Light Colour
    		 Cool White
    Lens Type
    		 waterclear
    Viewing Angle
    		 60°
    Intensity
    		 5200mcd
    I<sub>f (typ)</sub> - Typical Forward Current
    		 35mA
    V<sub>f (typ)</sub> - Typical Forward Voltage
    		 3.6V
    Resistor for 12VDC
    		 240?
    V<sub>f (max)</sub> - Maximum Forward Voltage
    		 4.4V
    Resistor for 9VDC
    		 160?
    Illumination Type
    		 Single Colour
    I<sub>f (max)</sub> - Maximum Forward Current
    		 100mA
    LED Type
    		 3mm Superflux Square
    V<sub>rev</sub> - Reverse Breakdown Voltage
    		 5V
    Resistor for 5VDC
    		 43?

    Active Component

    Active mount type
    		 Through Hole
    Active number of legs
    		 4 count
    component package
    		 radial
    Active connector type
    		 Solder Legs

    Product Availability

    Availability
    		 Stocked item

    Downloads

    ZD0020-dataSheetMain.pdf
