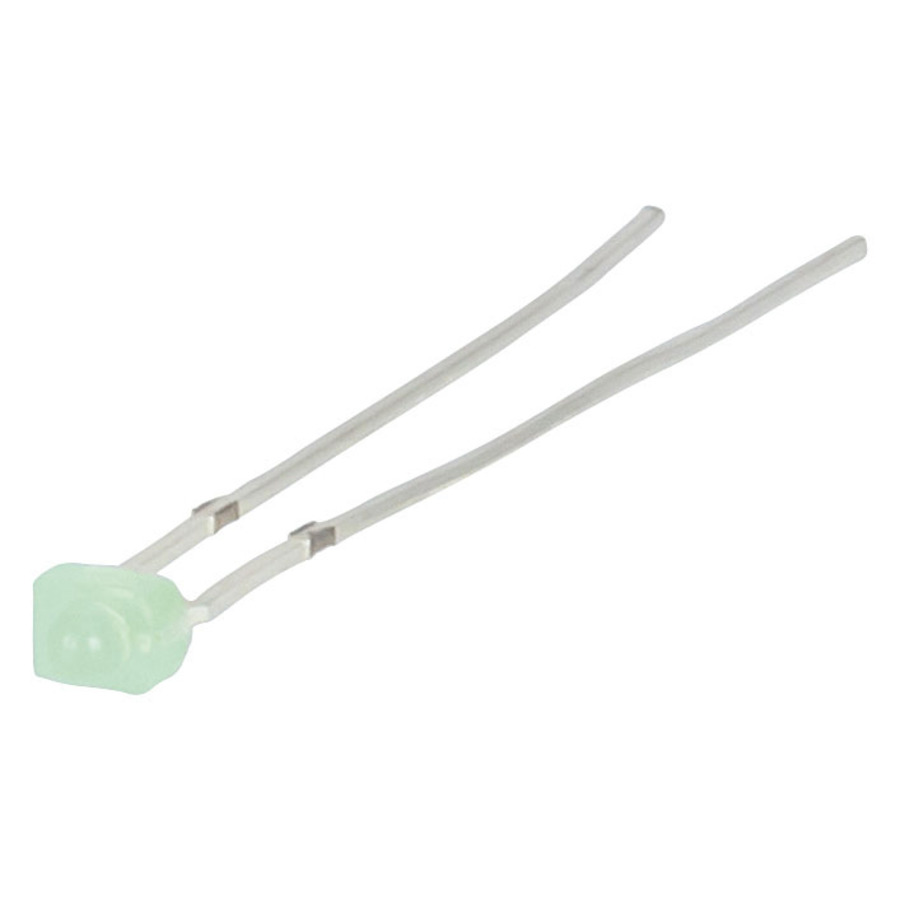

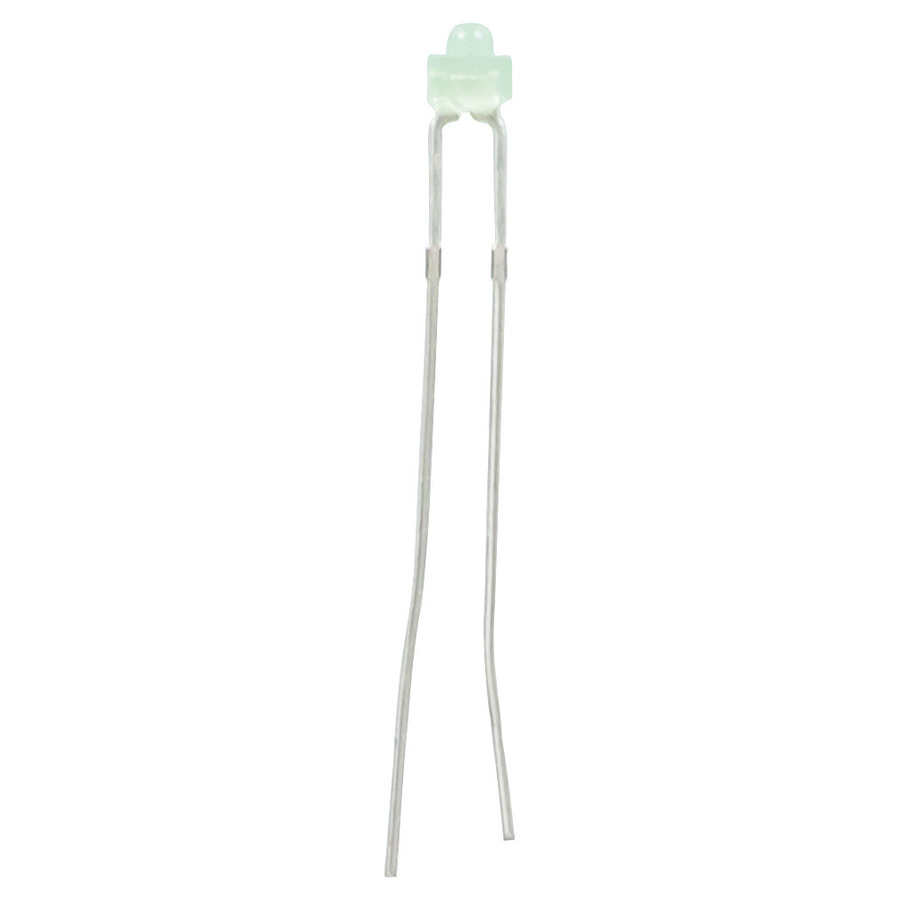

Green 2mm LED 2200mcd Tower Type Diffused
Green 2mm LED 2200mcd Tower Type Diffused
Green 2mm LED 2200mcd Tower Type Diffused

CAT. No. ZD0070

Green 2mm LED 2200mcd Tower Type Diffused
product image thumb
product image thumb

Green 2mm LED 2200mcd Tower Type Diffused

$0.95
Fits into a 1.8mm hole in a panel or enclosure. - Green in Colour - 60° Viewing Angle - Diffused Lens

Out of Stock

Description

LED

A green through-hole diffused tower type LED that fits into a 1.8mm hole in a panel or enclosure.

• 5 colours to choose from


    Specifications

    LED Components

    Light Colour
    		 Green
    Lens Type
    		 Diffused
    Light Wavelength
    		 520nm-525nm
    Viewing Angle
    		 60°
    Intensity
    		 2200mcd
    I<sub>f (typ)</sub> - Typical Forward Current
    		 20mA
    V<sub>f (typ)</sub> - Typical Forward Voltage
    		 3.2V
    Resistor for 12VDC
    		 470?
    Resistor for 9VDC
    		 270?
    Illumination Type
    		 Single Colour
    LED Type
    		 2mm Tower Type LED
    Resistor for 5VDC
    		 91?

    Product Dimensions

    Diameter
    		 2mm

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 4cm
    Packaged Width
    		 1cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 0.004l
    Packaged Height
    		 1cm
