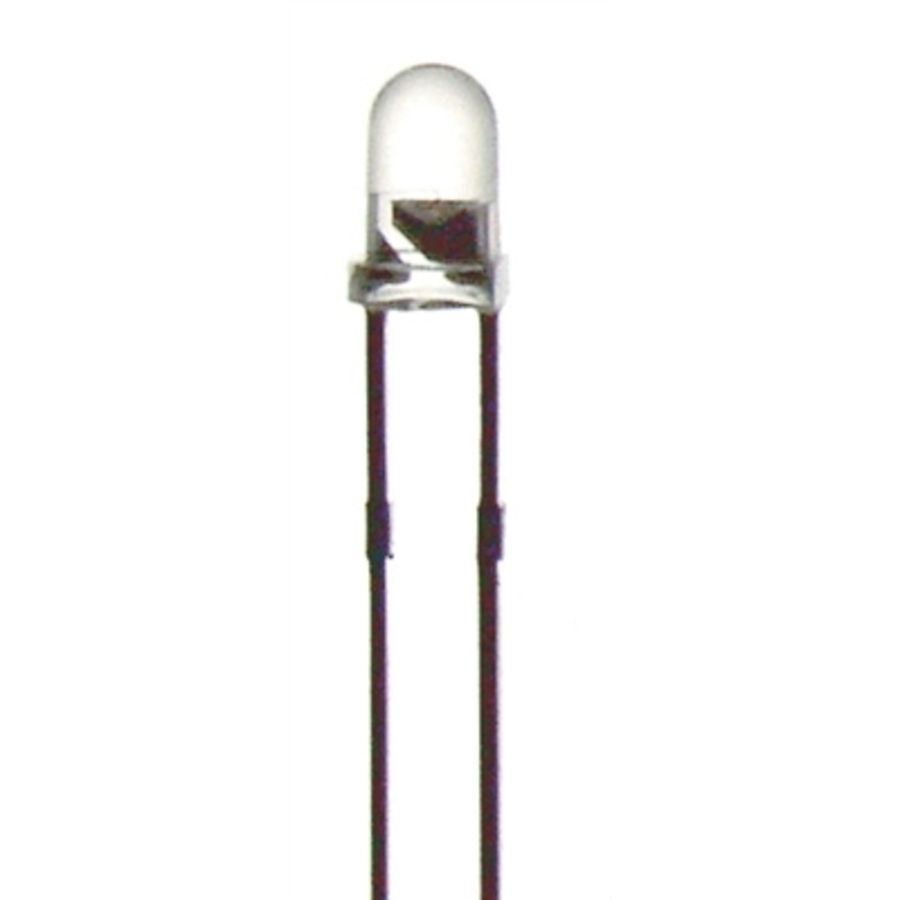

Red 3mm LED 1500mcd Round Clear
Red 3mm LED 1500mcd Round Clear

CAT. No. ZD0102

Red 3mm LED 1500mcd Round Clear
product image thumb

Red 3mm LED 1500mcd Round Clear

$0.8
Red 3mm light emitting diode 1500mCd Round Clear

Out of Stock

Description

LED

Red 3mm LED round clear.

    Specifications

    Product Dimensions

    Diameter
    		 3mm

    Packaged Dimensions

    Packaged Length
    		 3.5cm
    Packaged Width
    		 0.35cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 0l
    Packaged Height
    		 0.35cm

    LED Components

    Light Colour
    		 Red
    Lens Type
    		 waterclear
    Light Wavelength
    		 660nm
    Viewing Angle
    		 15°
    Intensity
    		 1500mcd
    I<sub>f (typ)</sub> - Typical Forward Current
    		 20mA
    V<sub>f (typ)</sub> - Typical Forward Voltage
    		 1.8V
    Resistor for 12VDC
    		 510?
    Resistor for 9VDC
    		 360?
    Illumination Type
    		 Single Colour
    I<sub>f (max)</sub> - Maximum Forward Current
    		 30mA
    LED Type
    		 3mm Standard LED
    Resistor for 5VDC
    		 160?

    Active Component

    Active connector type
    		 Solder Legs

    Product Availability

    Availability
    		 Stocked item
