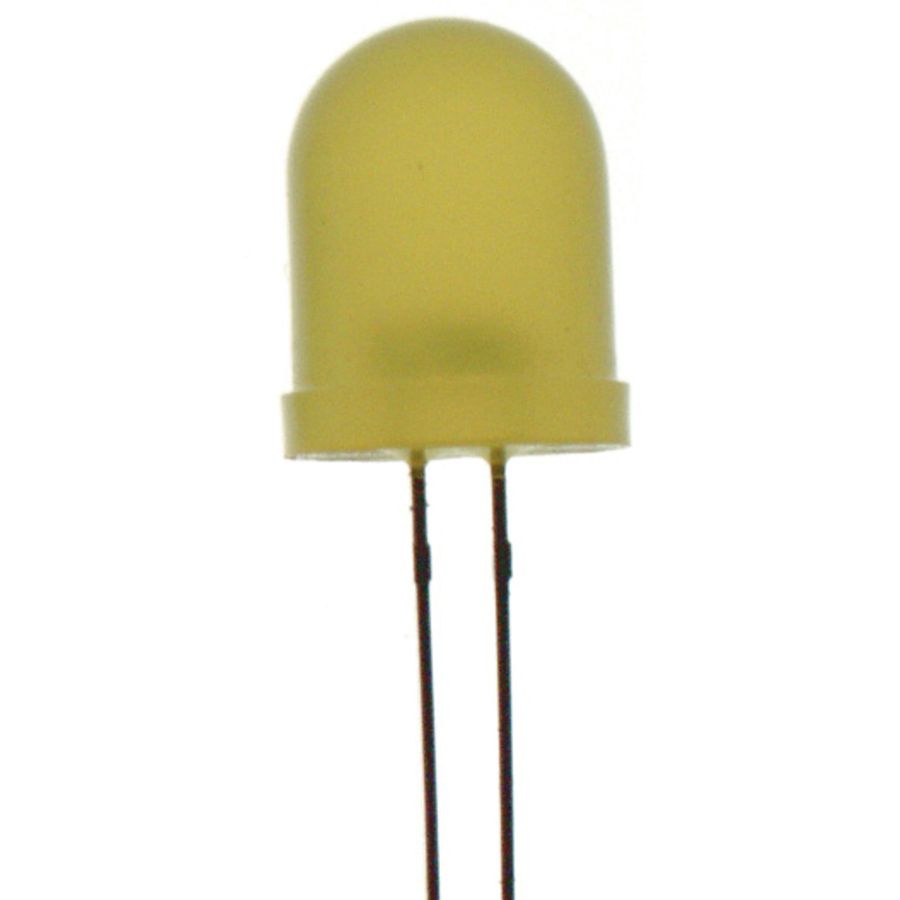

Yellow 3mm LED 30mcd Round Diffused
Yellow 3mm LED 30mcd Round Diffused

CAT. No. ZD0110

Yellow 3mm LED 30mcd Round Diffused
product image thumb

Yellow 3mm LED 30mcd Round Diffused

$0.75
Yellow 3mm light emitting diode 30mCd Round Diffused
Available

Description

LED

Yellow 3mm LED 30mCd Round Diffused


    Specifications

    Product Dimensions

    Diameter
    		 3mm

    Packaged Dimensions

    Packaged Length
    		 0.3cm
    Packaged Width
    		 0.3cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 0l
    Packaged Height
    		 3.5cm

    LED Components

    Light Colour
    		 Yellow
    Lens Type
    		 Diffused
    Light Wavelength
    		 585nm
    Viewing Angle
    		 50°
    Intensity
    		 10mcd
    I<sub>f (typ)</sub> - Typical Forward Current
    		 20mA
    V<sub>f (typ)</sub> - Typical Forward Voltage
    		 2.1V
    Resistor for 12VDC
    		 510?
    Resistor for 9VDC
    		 360?
    Illumination Type
    		 Single Colour
    I<sub>f (max)</sub> - Maximum Forward Current
    		 20mA
    LED Type
    		 3mm Standard LED
    Resistor for 5VDC
    		 150?

    Product Availability

    Availability
    		 Stocked item
