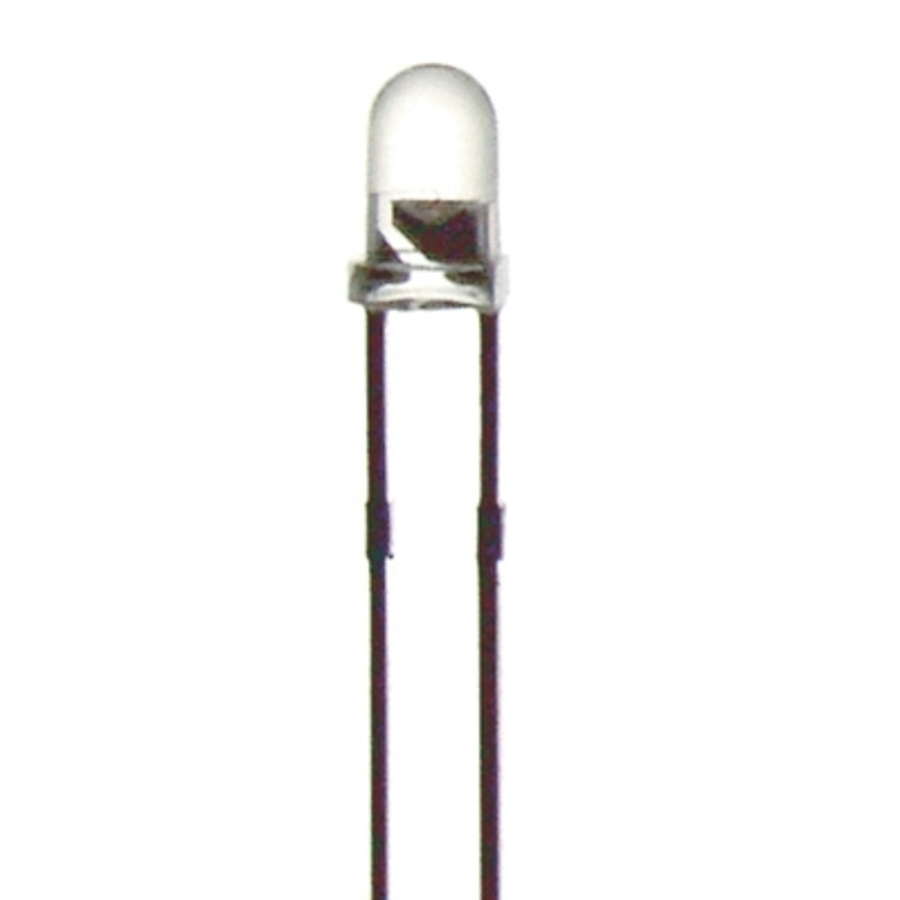

Aqua 3mm LED 4000mcd Round Clear
Aqua 3mm LED 4000mcd Round Clear

CAT. No. ZD0126

Aqua 3mm LED 4000mcd Round Clear
product image thumb

Aqua 3mm LED 4000mcd Round Clear

$5.45
Aqua 3mm light emitting diode at 4000mCd brightness Round Clear
Available

Description

LED

Aqua 3mm LED 4000mCd Round Clear

    Specifications

    Product Dimensions

    Diameter
    		 3mm

    Packaged Dimensions

    Packaged Length
    		 0.4cm
    Packaged Width
    		 0.4cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 5.6E-4l
    Packaged Height
    		 3.5cm

    LED Components

    Light Colour
    		 Aqua
    Lens Type
    		 waterclear
    Light Wavelength
    		 505nm
    Viewing Angle
    		 15°
    Intensity
    		 4000mcd
    I<sub>f (typ)</sub> - Typical Forward Current
    		 20mA
    V<sub>f (typ)</sub> - Typical Forward Voltage
    		 3.5V
    Resistor for 12VDC
    		 430?
    Resistor for 9VDC
    		 270?
    Illumination Type
    		 Single Colour
    I<sub>f (max)</sub> - Maximum Forward Current
    		 30mA
    LED Type
    		 3mm Standard LED
    Resistor for 5VDC
    		 75?

    Product Availability

    Availability
    		 Stocked item
