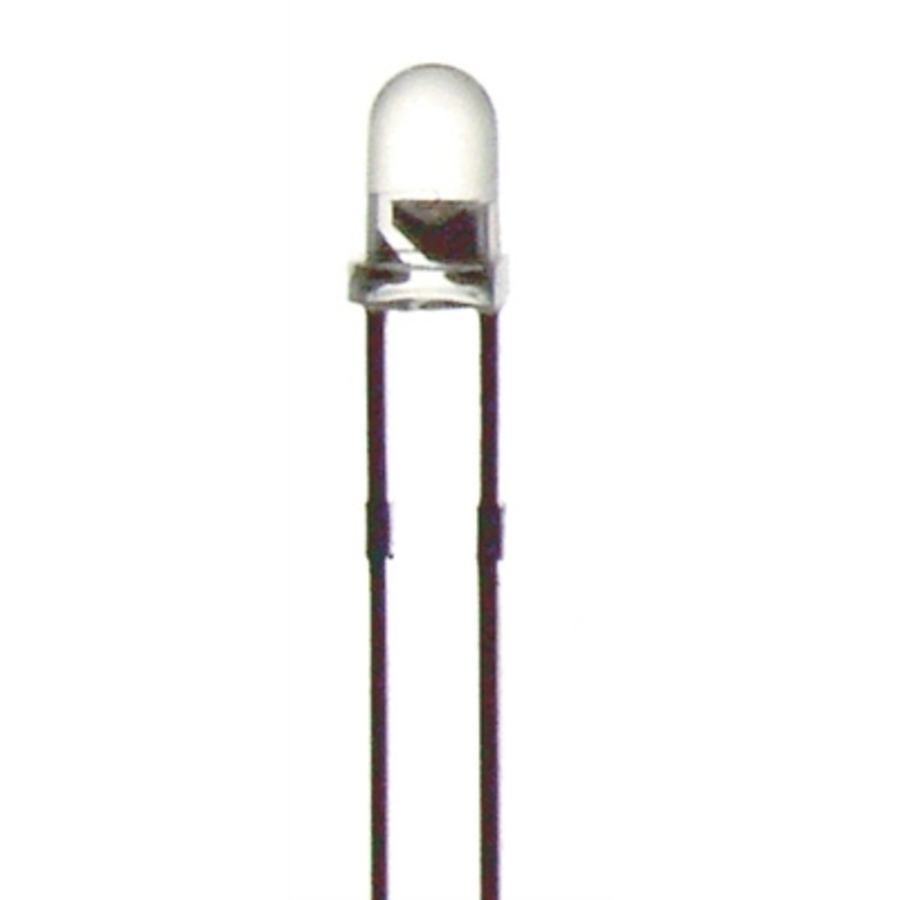

Blue 3mm LED 1500mcd Round Clear
Blue 3mm LED 1500mcd Round Clear

CAT. No. ZD0130

Blue 3mm LED 1500mcd Round Clear
product image thumb

Blue 3mm LED 1500mcd Round Clear

$2.75
Blue 3mm light emitting diode at 1500mCd brightness Round Clear
Available

Description

LED

Blue 3mm LED 1500mCd Round Clear

    Specifications

    Product Dimensions

    Diameter
    		 3mm

    Packaged Dimensions

    Packaged Length
    		 3.5cm
    Packaged Width
    		 0.4cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 0.001l
    Packaged Height
    		 0.4cm

    LED Components

    Light Colour
    		 Blue
    Lens Type
    		 waterclear
    Light Wavelength
    		 465nm
    Viewing Angle
    		 15°
    Intensity
    		 1500mcd
    I<sub>f (typ)</sub> - Typical Forward Current
    		 20mA
    V<sub>f (typ)</sub> - Typical Forward Voltage
    		 3.3V
    Resistor for 12VDC
    		 430?
    Resistor for 9VDC
    		 300?
    Illumination Type
    		 Single Colour
    I<sub>f (max)</sub> - Maximum Forward Current
    		 20mA
    LED Type
    		 3mm Standard LED
    Resistor for 5VDC
    		 82?

    Product Availability

    Availability
    		 Stocked item
