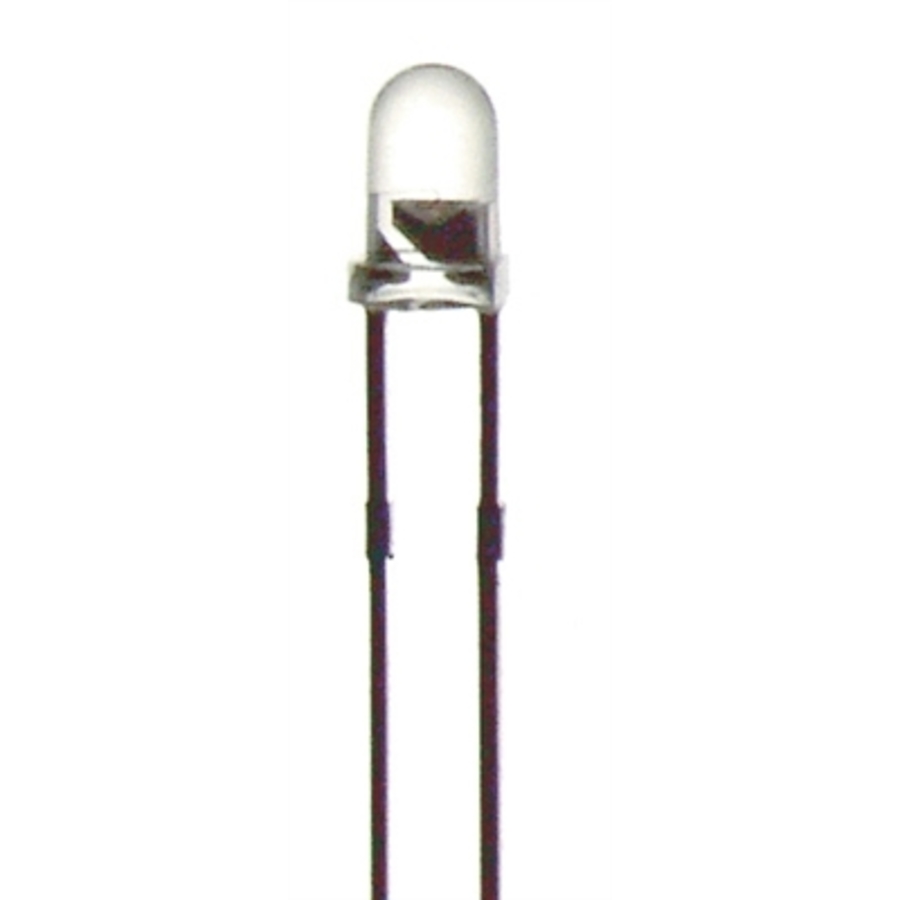

White 3mm LED 15000mcd Round Clear
White 3mm LED 15000mcd Round Clear

CAT. No. ZD0144

White 3mm LED 15000mcd Round Clear
product image thumb

White 3mm LED 15000mcd Round Clear

$2.95
White light emitting diode in 3mm Clear at 15000MCD brightness.
Available

Description

LED

White LED 3mm Clear 15000MCD

    Specifications

    LED Components

    Resistor for 9VDC
    		 180?
    Light Colour
    		 White
    Lens Type
    		 waterclear
    Illumination Type
    		 Single Colour
    I<sub>f (max)</sub> - Maximum Forward Current
    		 100mA
    LED Type
    		 3mm Standard LED
    Viewing Angle
    		 20°
    Intensity
    		 15000mcd
    I<sub>f (typ)</sub> - Typical Forward Current
    		 30mA
    Resistor for 12VDC
    		 270?
    Resistor for 5VDC
    		 56?

    Active Component

    Active mount type
    		 Through Hole
    Active number of legs
    		 2 count
    component package
    		 radial
    Active connector type
    		 Solder Legs

    Product Dimensions

    Diameter
    		 3mm

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 0.5cm
    Packaged Width
    		 0.5cm
    Packaged Weight
    		 0.005kg
    Packaged Volume
    		 0.001l
    Packaged Height
    		 3.5cm
