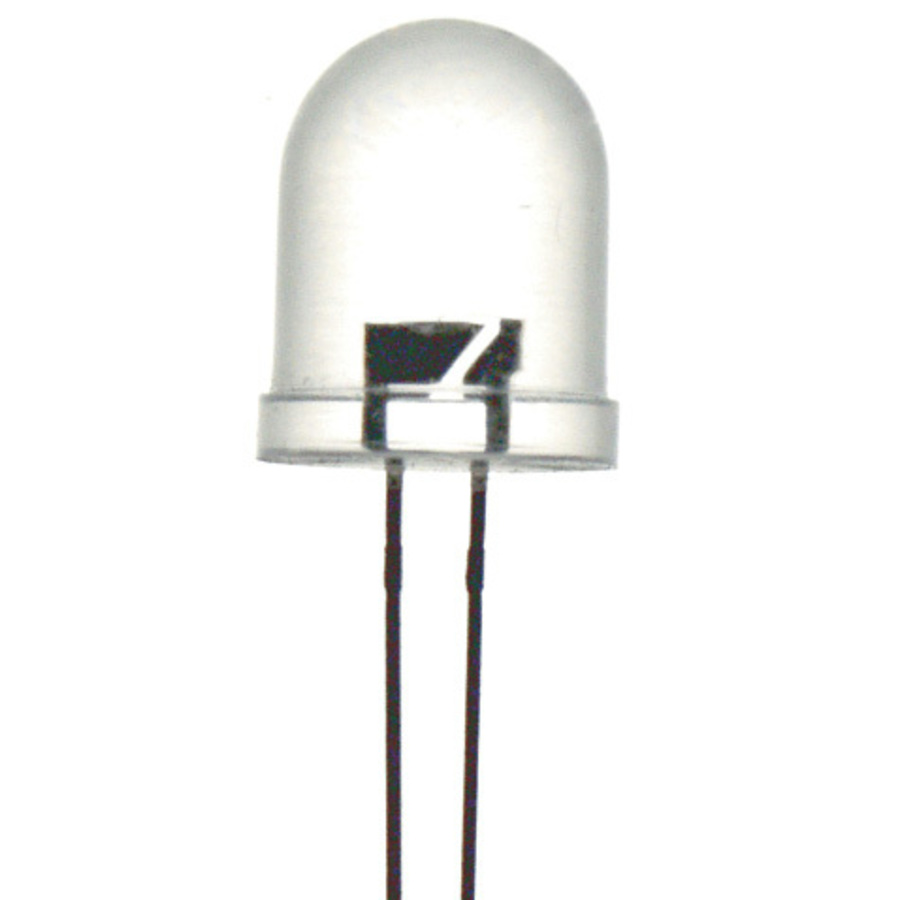

Green 5mm LED 7500mcd Round Clear
Green 5mm LED 7500mcd Round Clear

CAT. No. ZD0172

Green 5mm LED 7500mcd Round Clear
product image thumb

Green 5mm LED 7500mcd Round Clear

$2.95
Green 5mm light emitting diode at 7500mcd brightness in Round Clear.
Available

Description

LED

Green 5mm LED 7500mcd Round Clear

    Specifications

    Product Dimensions

    Diameter
    		 5mm

    Packaged Dimensions

    Packaged Length
    		 0.5cm
    Packaged Width
    		 0.5cm
    Packaged Weight
    		 0.002kg
    Packaged Volume
    		 0.001l
    Packaged Height
    		 3.5cm

    LED Components

    Light Colour
    		 Green
    Lens Type
    		 waterclear
    Light Wavelength
    		 525nm
    Viewing Angle
    		 30°
    Intensity
    		 7500mcd
    I<sub>f (typ)</sub> - Typical Forward Current
    		 20mA
    V<sub>f (typ)</sub> - Typical Forward Voltage
    		 3.5V
    Resistor for 12VDC
    		 430?
    Resistor for 9VDC
    		 270?
    Illumination Type
    		 Single Colour
    I<sub>f (max)</sub> - Maximum Forward Current
    		 30mA
    LED Type
    		 5mm Standard LED
    Resistor for 5VDC
    		 75?

    Product Availability

    Availability
    		 Stocked item
