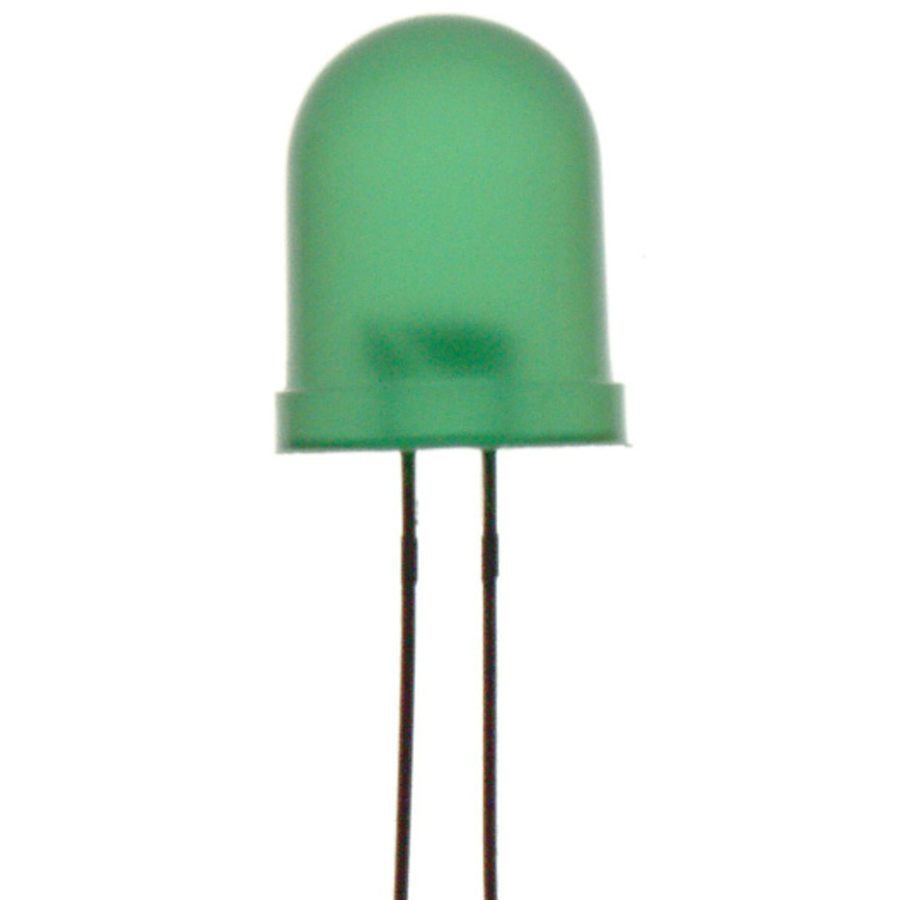

Green 10mm LED 100mcd Round Diffused
Green 10mm LED 100mcd Round Diffused

CAT. No. ZD0205

Green 10mm LED 100mcd Round Diffused
product image thumb

Green 10mm LED 100mcd Round Diffused

$0.75
SpecificationsSizeGreen 10mm LED 100mcd Round Diffused (mm)10ColourGreenLensDiffusedViewing Angle (Degrees)50Wavelength (nm)570IF Typical (mA)20VF Typical (V)2.2IV Typical (mcd)100IF Max...
Available

Description

LED

Green 10mm LED 100mcd Round Diffused

    Specifications

    Product Dimensions

    Diameter
    		 10mm

    Packaged Dimensions

    Packaged Length
    		 1.1cm
    Packaged Width
    		 1.1cm
    Packaged Weight
    		 0.002kg
    Packaged Volume
    		 0.00484l
    Packaged Height
    		 4cm

    LED Components

    Light Colour
    		 Green
    Lens Type
    		 Diffused
    Light Wavelength
    		 570nm
    Viewing Angle
    		 50°
    Intensity
    		 100mcd
    I<sub>f (typ)</sub> - Typical Forward Current
    		 20mA
    V<sub>f (typ)</sub> - Typical Forward Voltage
    		 2.2V
    Resistor for 12VDC
    		 510?
    Resistor for 9VDC
    		 360?
    Illumination Type
    		 Single Colour
    I<sub>f (max)</sub> - Maximum Forward Current
    		 20mA
    LED Type
    		 10mm Standard LED
    Resistor for 5VDC
    		 150?

    Product Availability

    Availability
    		 Stocked item

    Downloads

    ZD0205-dataSheetMain.pdf
