Tricolour RedGreenOrange 5mm LED 7080mcd Round Diffused
Tricolour RedGreenOrange 5mm LED 7080mcd Round Diffused

CAT. No. ZD0252

Tricolour RedGreenOrange 5mm LED 7080mcd Round Diffused
product image thumb

Tricolour RedGreenOrange 5mm LED 7080mcd Round Diffused

$0.85

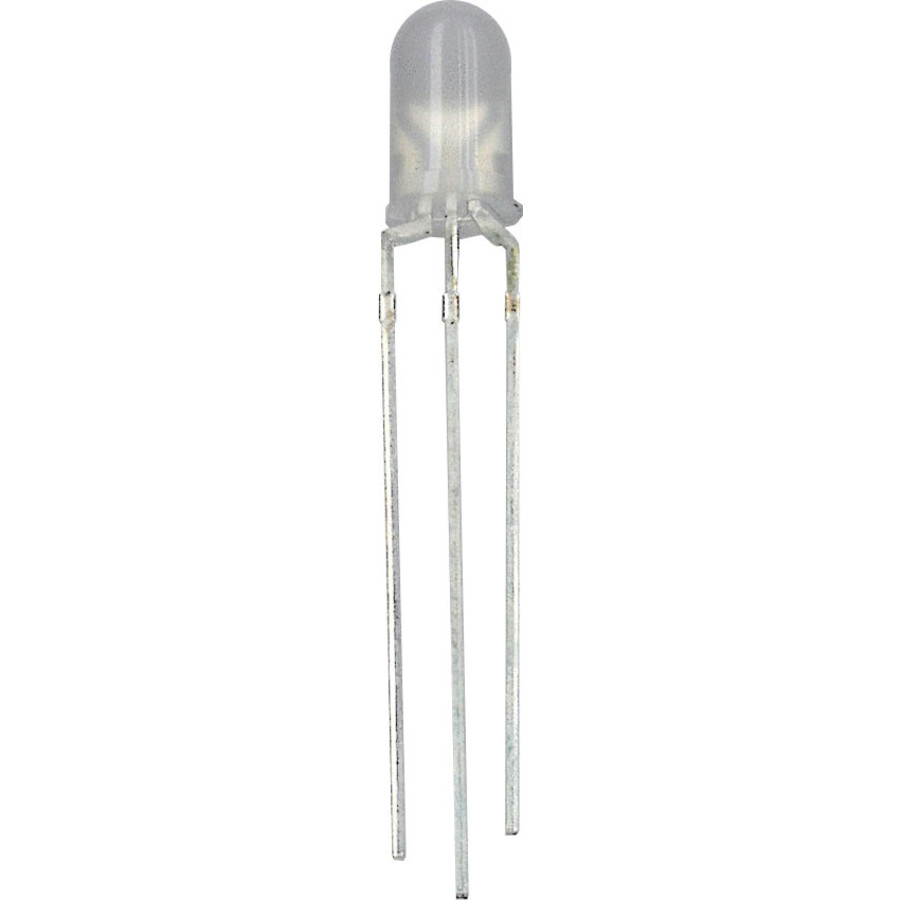

Red/Green Bi-colour LED with common cathode to allow tri-colour function 5mm Diameter
Available

Description

LED

Specifications
• Colour: Red/Green with common cathode. Activate both colours to achieve orange
• Size: 5mm
• Lens: Diffused
• Viewing Angle: 90 degrees
• Wavelength: Red 625nm Green 568nm
• Typical Forward Current: 20mA
• Typical Forward Voltage: 2.1V
• Luminous Intensity: 70-80 mcd
• Continuous Maximum Current: 30mA



Resistor for 5VDC : 150.0?
Resistor for 9VDC : 360.0?
Resistor for 12VDC : 510.0?


Active Component Details
Active mount type : Through Hole
Active connector type : Solder Legs
component package : radial
Active number of legs : 3.0Count


LED Section Details
Colour Section : Red
Wavelength : 625.0nm
Typical Voltage : 2.1V
Intensity : 70.0mcd


LED Section Details
Colour Section : Green
Wavelength : 568.0nm
Typical Voltage : 2.2V
Intensity : 80.0mcd


    Specifications

    Packaged Dimensions

    Packaged Length
    		 4cm
    Packaged Width
    		 0.6cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 0.00144l
    Packaged Height
    		 0.6cm

    LED Components

    Light Colour
    		 Red, Green, Orange
    Lens Type
    		 Diffused
    Light Wavelength
    		 568nm-625nm
    Viewing Angle
    		 90°
    Intensity
    		 70mcd-80mcd, 70mcd, 80mcd
    I<sub>f (typ)</sub> - Typical Forward Current
    		 20mA
    V<sub>f (typ)</sub> - Typical Forward Voltage
    		 2.1V
    Resistor for 12VDC
    		 510?
    Resistor for 9VDC
    		 360?
    Illumination Type
    		 Tri Colour, Common Cathode
    I<sub>f (max)</sub> - Maximum Forward Current
    		 30mA
    LED Type
    		 5mm Standard LED
    Resistor for 5VDC
    		 150?

    LED Section Details

    Intensity
    		 70mcd-80mcd, 70mcd, 80mcd
    Typical Voltage
    		 2.1V, 2.2V
    Wavelength
    		 625nm, 568nm
    Colour Section
    		 Red, Green

    Active Component

    Active mount type
    		 Through Hole
    Active number of legs
    		 3 count
    component package
    		 radial
    Active connector type
    		 Solder Legs
