Yellow 5mm Cree LED 23500mcd Round Clear
Yellow 5mm Cree LED 23500mcd Round Clear

CAT. No. ZD0295

Yellow 5mm Cree LED 23500mcd Round Clear
product image thumb

Yellow 5mm Cree LED 23500mcd Round Clear

$5.45

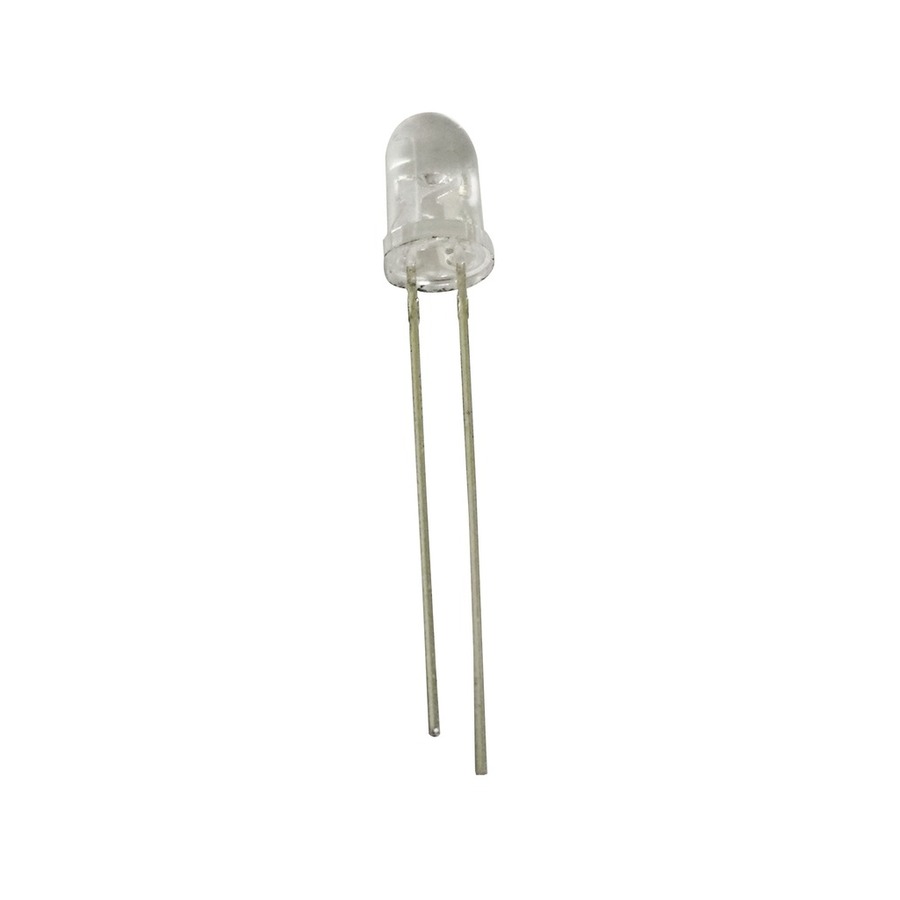

Yellow 5mm Cree light emitting diode 23500mcd Round Clear
Available

Description

LED

Yellow 5mm Cree® LED 23500mcd Round Clear

    Specifications

    Product Dimensions

    Diameter
    		 5mm

    Packaged Dimensions

    Packaged Length
    		 0.5cm
    Packaged Width
    		 0.5cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 0.001l
    Packaged Height
    		 3.5cm

    LED Components

    Light Colour
    		 Yellow
    Lens Type
    		 waterclear
    Light Wavelength
    		 591nm
    Viewing Angle
    		 15°
    Intensity
    		 23500mcd
    I<sub>f (typ)</sub> - Typical Forward Current
    		 30mA
    V<sub>f (typ)</sub> - Typical Forward Voltage
    		 2.1V
    Resistor for 12VDC
    		 330?
    Resistor for 9VDC
    		 230?
    Illumination Type
    		 Single Colour
    I<sub>f (max)</sub> - Maximum Forward Current
    		 30mA
    LED Type
    		 CREE XP-E
    Resistor for 5VDC
    		 100?

    Product Availability

    Availability
    		 Stocked item
