CAT. No. ZD0577

Low Cost 5m Flexible Adhesive LED Strip Light - Warm White
product image thumb

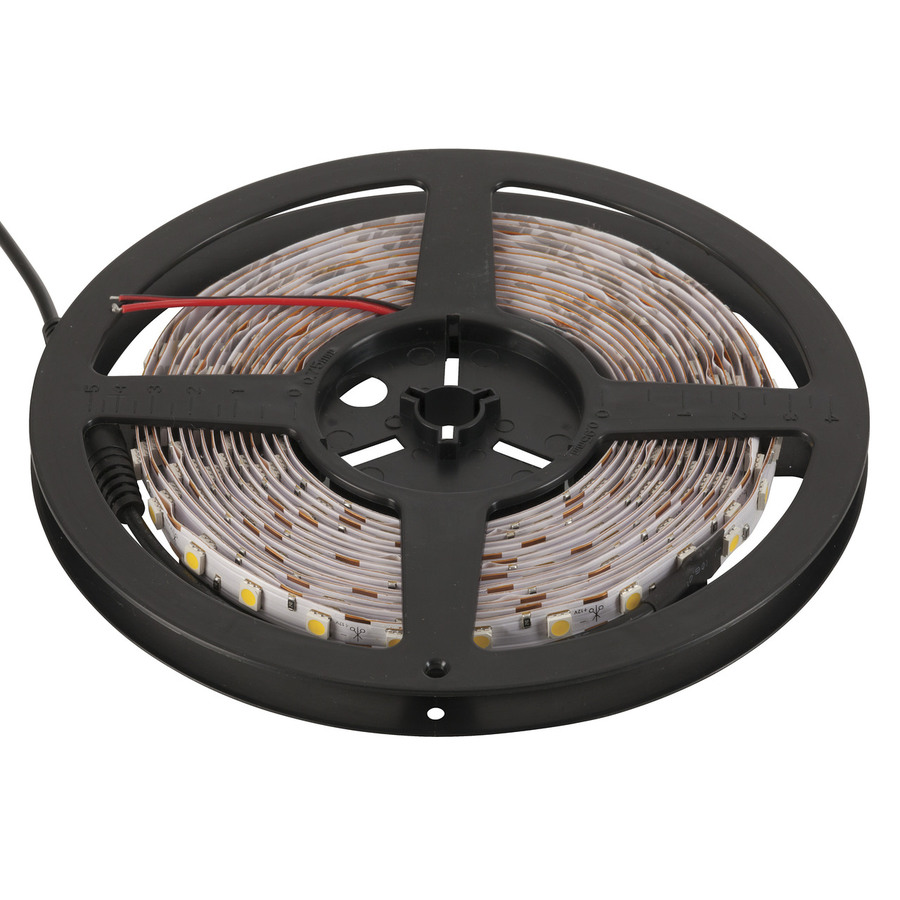

Low Cost 5m Flexible Adhesive LED Strip Light - Warm White

$89.95
When the absolute brightest light possible isn't what you are looking for, then these competitively priced flexible LED strips are what you are lo...
Available

Description

LED

When the absolute brightest light possible isn’t what you are looking for, then these competitively priced flexible LED strips are an ideal option. These strips still use the same super efficient 5050 SMD LED package as our ultra bright LED strips, but each LED has around 20-40% less light output than our ultra bright versions. Everything else is the same; there are 60 LEDs per metre, the flexible strip can be cut into sections every third LED to create separate strips to your desired length, the strip is backed with 3M brand adhesive tape, and each section had solder pads to enable you to wire up to your desired configuration.

Sold as a full 5 metre reel, they are an excellent solution to thousands of lighting applications such as display cabinets, under bench lighting, accent lighting, caravan/camping, 4WD, mood lighting, etc

Features:
• Low 45mA current draw per 50mm segment
• High 970 lumens per metre


Handy Tip LED Strip Lighting

Our range of LED strip lights are made using some of the most common type of SMD LEDs used in LED lighting products; the 3528 type, and the 5050/5060type. Their model designations actually come from their footprint dimensions:3528 = 3.5x2.8mm, 5050 = 5.0x5.0mm, and 5060 = 5.0x6.0mm. The 3528 type is a single LED emitter type in a very compact package, whereas the 5050 and5060 type are commonly referred to as triple-chip due to having three LED emitters built into the one package. The 3528 typically offers superior lumen performance per emitter and greater light efficiency than 5050/5060, but the5060/5060 triple-chip types are more cost effective due to lower manufacturing and production costs when built into a finished product.

    Specifications

    Lighting Details


    Illuminated Colour
    Warm white
    LED Quantity
    300pc
    LED Type
    5050 SMD
    LED Connection
    SMD
    LED replaceable

    Light Output


    Light Rating Lumens
    4750lm

    Product Dimensions


    Length
    5m
    Height
    4mm
    Width
    10mm

    Packaged Dimensions


    Packaged Length
    20.7cm
    Packaged Width
    16.5cm
    Packaged Weight
    0.154kg
    Packaged Volume
    1.263735l
    Packaged Height
    3.7cm

    Product Mounting


    Mounting Method
    Self Adhesive

    Power Source Details


    DC Voltage
    12V
    Connection Size
    2.1mm
    Connection Details
    Supplied with pre-attached 2.1mm DC socket and matching plug flylead
    Item connection
    Flyleads, Barrel Plug
    DC Current Draw
    4.5A

    Product Availability


    Availability
    Stocked item
