CAT. No. ZD0594

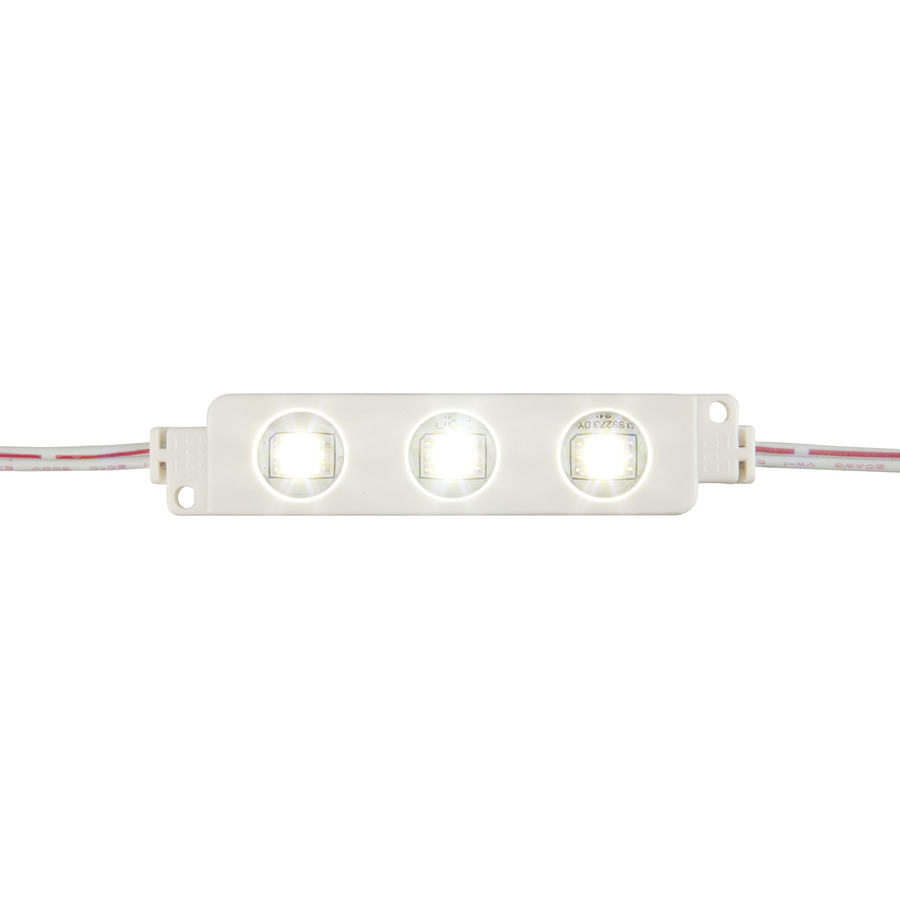

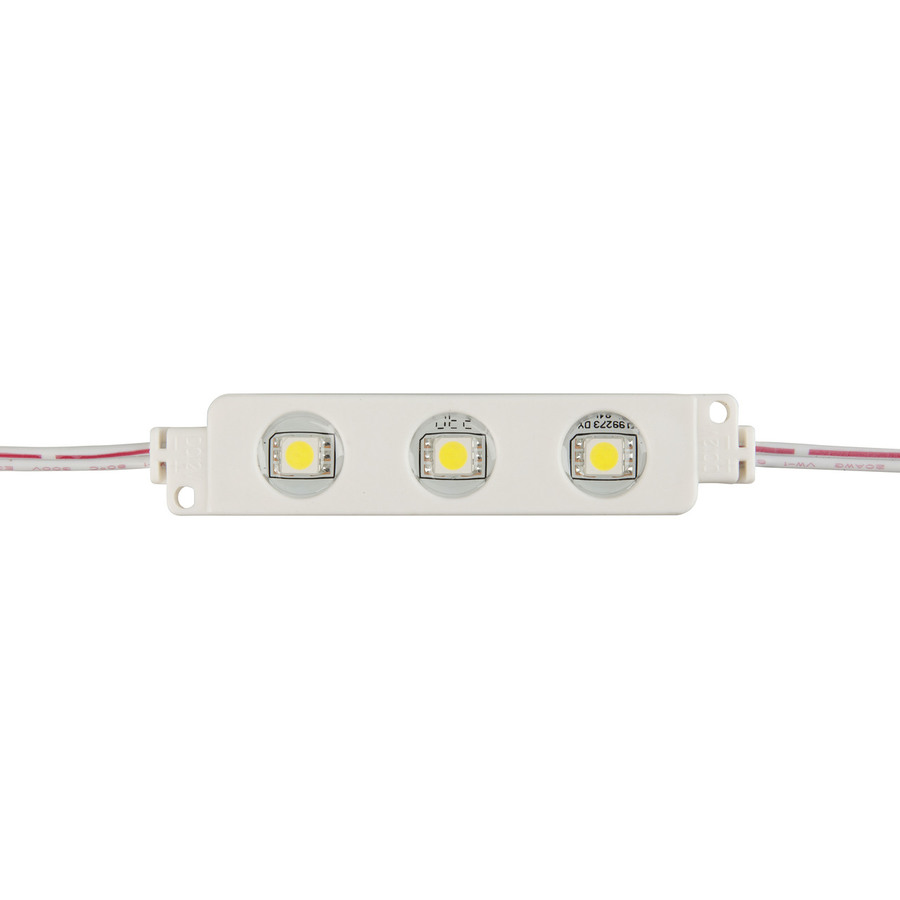

IP65 LED Light Module String, 10x 3x5050-LEDs, Cool White
product image thumb
product image thumb

IP65 LED Light Module String, 10x 3x5050-LEDs, Cool White

$34.95
A very flexible and weatherproof (IP65) solution for low power lighting
Available

Description

LED

A very flexible and weatherproof (IP65) solution for low power lighting; use for backlighting of signs, illuminating stairwells, marine lighting, caravan lighting, etc. Each string is supplied as a 1m length of wire, with ten modules containing three high brightness SMD LEDs along the length of the string. You can cut the string to supply power to each module separately if you wish, allowing for a whole host of different applications. Simply provide 12VDC power and you are in business. Available in standard 3528-LED or ultra-bright 5050-LED versions, and in cool white, warm white or blue colours depending on the model you chose

ZD-0594 IP65 LED Light Module String, 10x 3x5050-LEDs, Cool White

Features:
• Lumen output: 50lm per module (500lm total)
• LEDs: 10x (3x5050)


    Specifications

    Product Dimensions


    Length
    83mm
    Height
    6mm
    Width
    17mm

    Packaged Dimensions


    Packaged Length
    14cm
    Packaged Width
    11cm
    Packaged Weight
    0.1kg
    Packaged Volume
    0.462l
    Packaged Height
    3cm

    LED Components


    Light Colour
    Cool White
    Illumination Type
    Single Colour
    LED Type
    5050 SMD
    Viewing Angle
    120°
    I<sub>f (typ)</sub> - Typical Forward Current
    600mA
    V<sub>f (typ)</sub> - Typical Forward Voltage
    12V

    Lighting Details


    Colour Temperature
    6000K-6500K

    Product Availability


    Availability
    Stocked item
