Red 8x8 LED Matrix

$6.95
8x8 LED matrix module for simple graphical output display.

Out of Stock

Description

LED

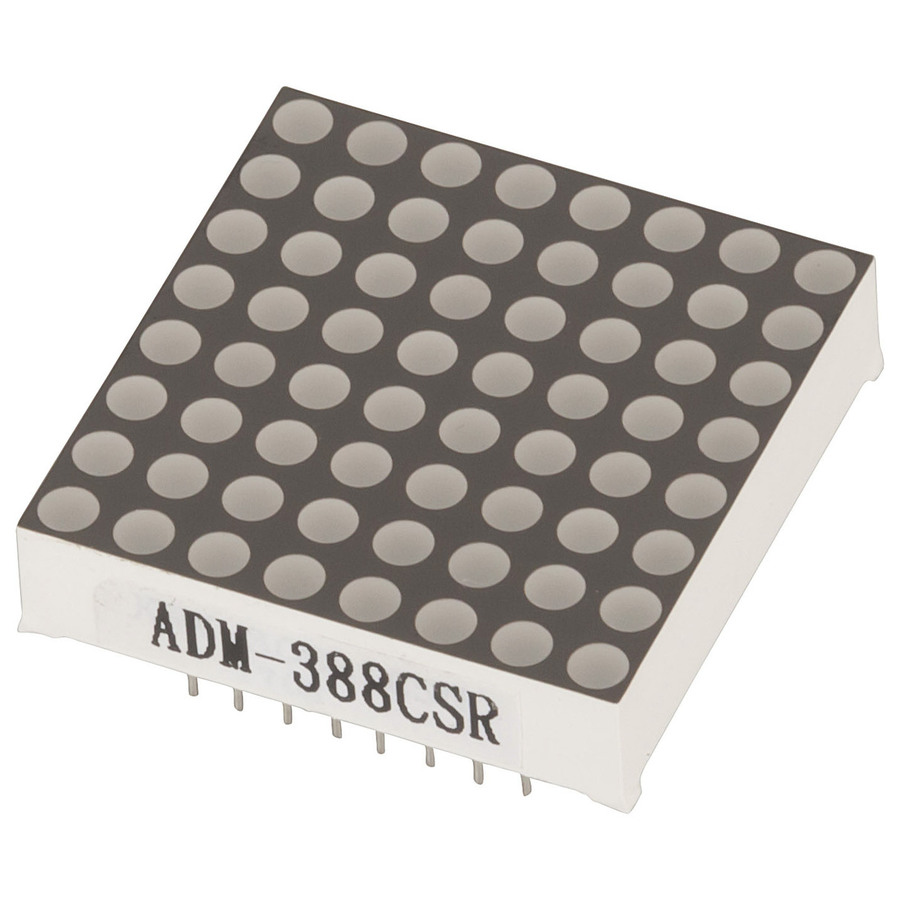

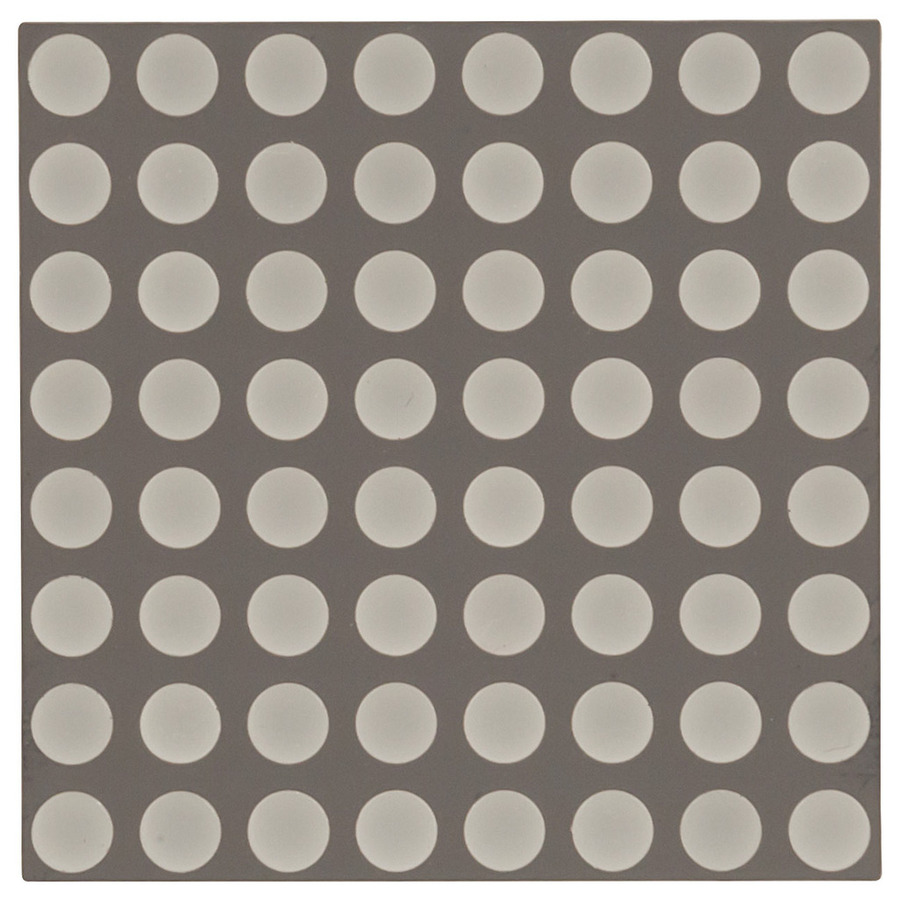

8x8 LED matrix module for simple graphical output display. Ideal for display of symbols, basic data, or graphics. 16 pin connection with 8 anode pins for column and 8 cathode pins for rows. Available in red or green.


    Specifications

    Product Dimensions

    Height
    		 32mm
    Width
    		 32mm
    Depth
    		 8mm

    LED Components

    Light Colour
    		 Red
    Illumination Type
    		 Single Colour
    Light Wavelength
    		 660nm
    Intensity
    		 15mcd
    I<sub>f (typ)</sub> - Typical Forward Current
    		 40mA
    V<sub>f (typ)</sub> - Typical Forward Voltage
    		 1.85V

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 3.2cm
    Packaged Width
    		 3.2cm
    Packaged Weight
    		 0.008kg
    Packaged Volume
    		 0.01536l
    Packaged Height
    		 1.5cm
