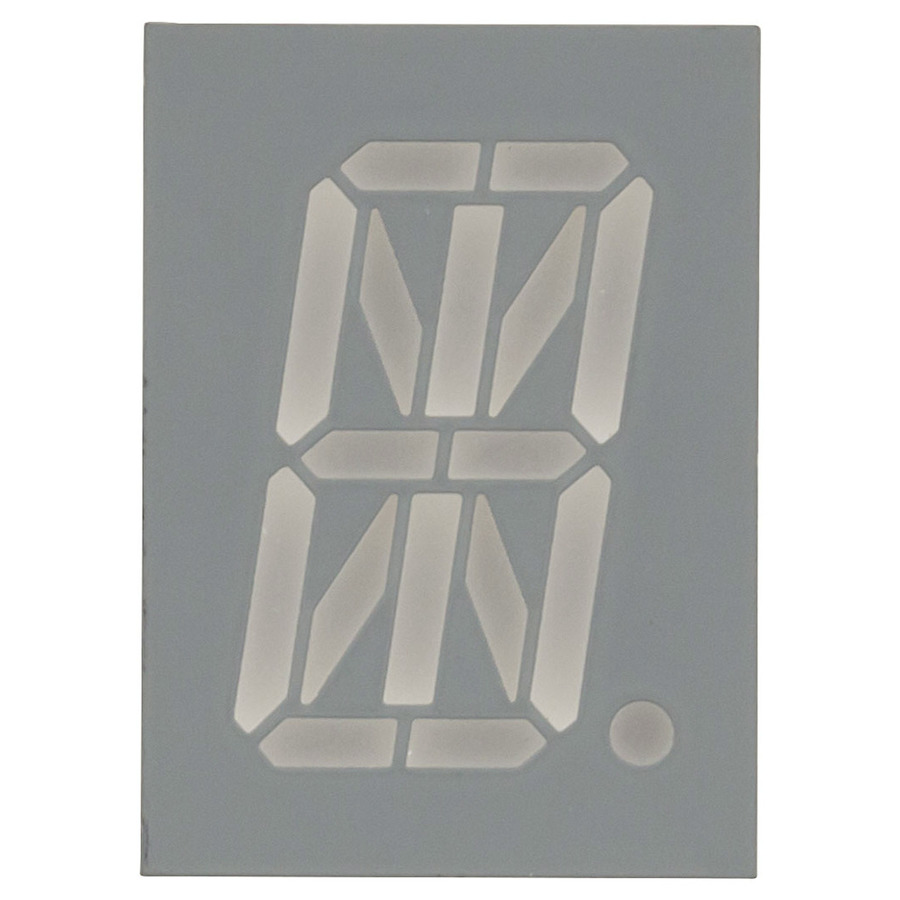

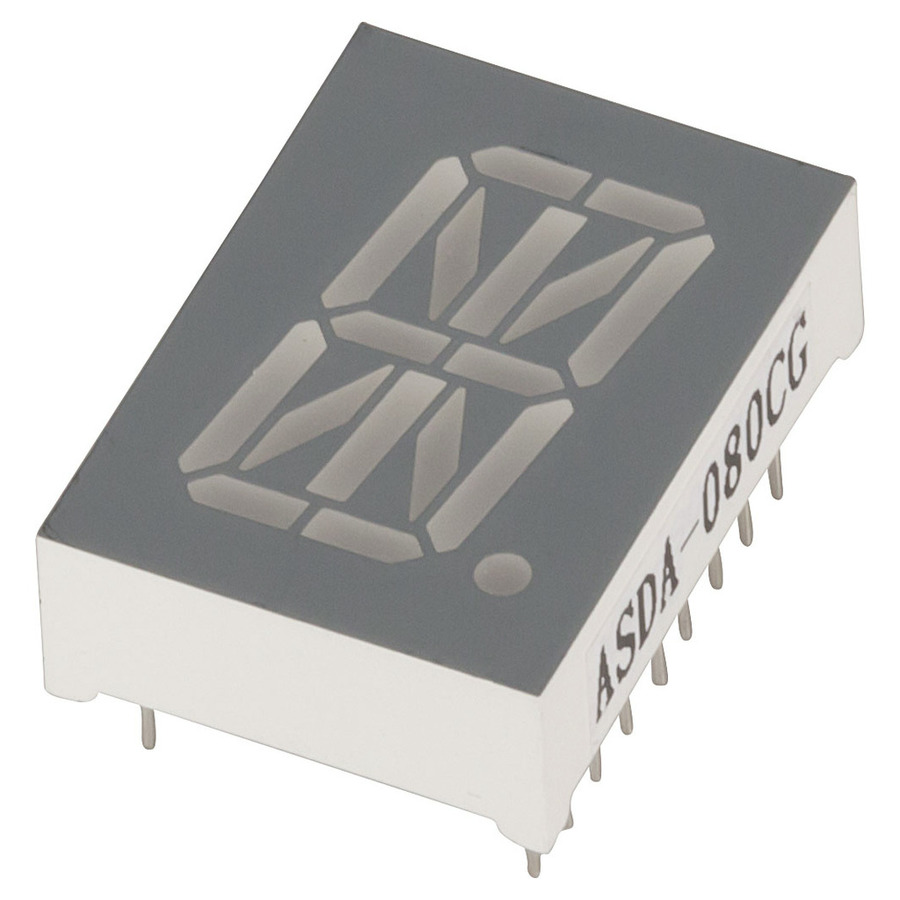

Green 16 Segment Common Cathode LED display
Green 16 Segment Common Cathode LED display
Green 16 Segment Common Cathode LED display

CAT. No. ZD1824

Green 16 Segment Common Cathode LED display
product image thumb
product image thumb

Green 16 Segment Common Cathode LED display

$3.95
Full function 16 segment LED module for alphabetical and numerical output display.

Out of Stock

Description

LED

Full function 16 segment LED module for alphabetical and numerical output display. Designed to be fitted in close format to allow display of words and larger numbers.

Features:
• Wiring format: Common Cathode
• Peak wavelength: 568nm

    Specifications

    Additional Dimensions

    Dimension for
    		 Other (details below)
    Height
    		 11mm, 27.7mm
    Dimensions details
    		 Digit
    Width
    		 20.3mm, 20mm

    Product Dimensions

    Height
    		 11mm, 27.7mm
    Width
    		 20.3mm, 20mm
    Depth
    		 8.5mm

    LED Components

    Light Colour
    		 Green
    Illumination Type
    		 Single Colour
    Light Wavelength
    		 568nm
    I<sub>f (typ)</sub> - Typical Forward Current
    		 50mA
    V<sub>f (typ)</sub> - Typical Forward Voltage
    		 2.2V

    Active Component

    Active mount type
    		 PCB
    Active connector type
    		 Solder Legs

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 2.7cm
    Packaged Width
    		 2cm
    Packaged Weight
    		 0.006kg
    Packaged Volume
    		 0.0081l
    Packaged Height
    		 1.5cm

    Downloads

    ZD1824-dataSheetMain.pdf
