FND500LTS543RS505RWB Common Cathode 7 Segment Display
FND500LTS543RS505RWB Common Cathode 7 Segment Display
FND500LTS543RS505RWB Common Cathode 7 Segment Display

CAT. No. ZD1855

FND500LTS543RS505RWB Common Cathode 7 Segment Display
product image thumb
product image thumb

FND500LTS543RS505RWB Common Cathode 7 Segment Display

$2.95
Standard 7 segment LED module for numerical output display.

Out of Stock

Description

LED

Standard 7 segment LED module for numerical output display. Designed to be fitted in close format to allow display of larger numbers. Wiring format: Common Cathode


    Specifications

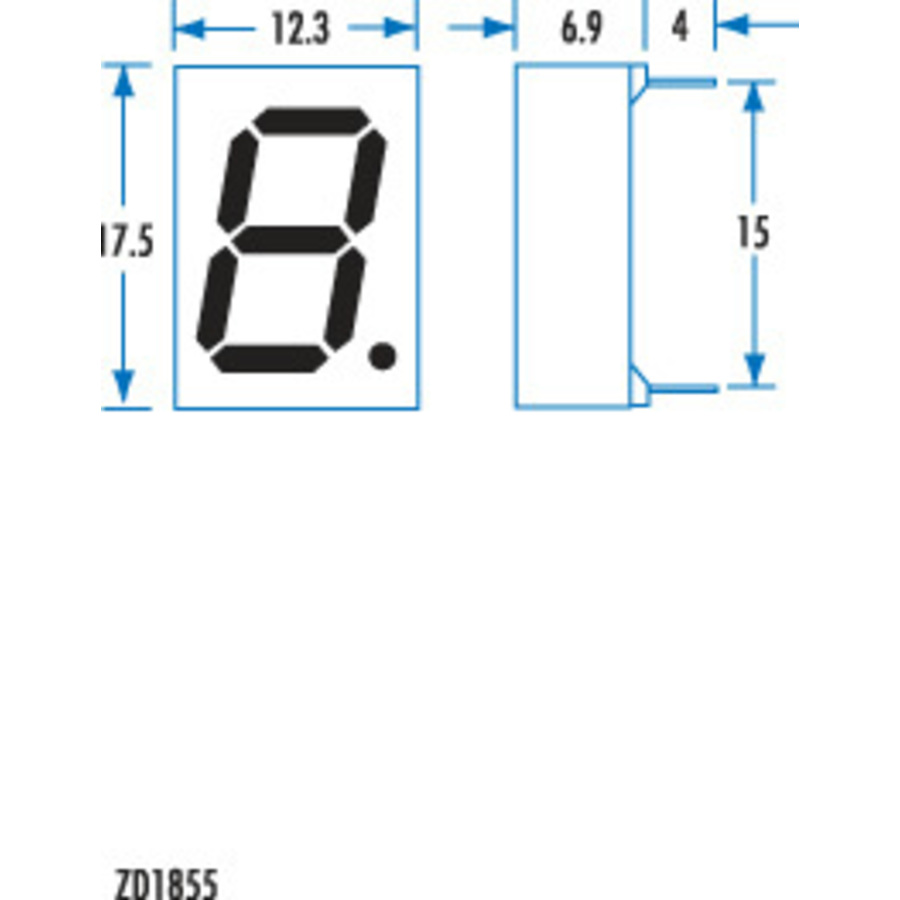

    Product Dimensions

    Height
    		 17.5mm, 13.2mm
    Width
    		 12.3mm, 7.6mm
    Depth
    		 7mm

    Packaged Dimensions

    Packaged Length
    		 1.75cm
    Packaged Width
    		 1.25cm
    Packaged Weight
    		 0.002kg
    Packaged Volume
    		 0.002625l
    Packaged Height
    		 1.2cm

    Additional Dimensions

    Dimension for
    		 Other (details below)
    Height
    		 17.5mm, 13.2mm
    Dimensions details
    		 Digit
    Width
    		 12.3mm, 7.6mm

    LED Components

    Light Colour
    		 Red
    Illumination Type
    		 Single Colour
    LED Type
    		 7 Segment Digit Display
    I<sub>f (typ)</sub> - Typical Forward Current
    		 10mA
    V<sub>f (typ)</sub> - Typical Forward Voltage
    		 2.1V

    Product Availability

    Availability
    		 Stocked item

    Downloads

    ZD1855-dataSheetMain.pdf
