6N138 Opto Coupler IC
6N138 Opto Coupler IC

CAT. No. ZD1940

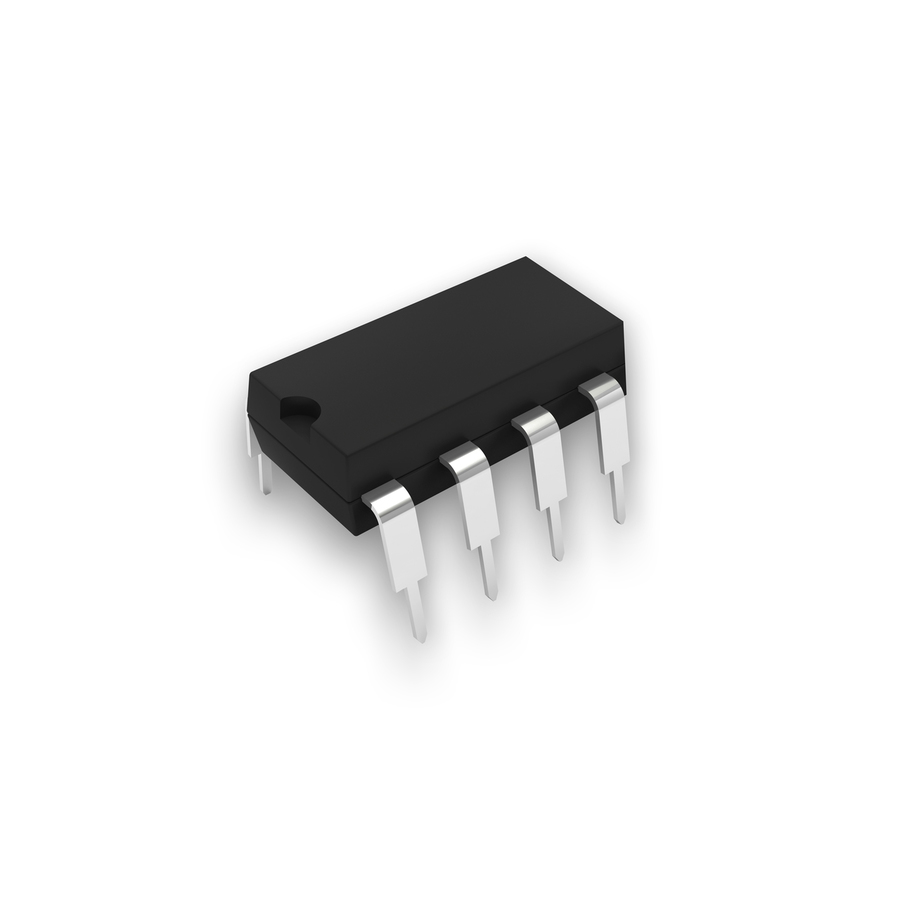

6N138 Opto Coupler IC
product image thumb

6N138 Opto Coupler IC

$3.95
A device containing light-emitting and light-sensative components, used to couple isolated circuits.
Available

Description

A device containing light-emitting and light-sensative components, used to couple isolated circuits.


    Specifications

    Packaged Dimensions

    Packaged Length
    		 1cm
    Packaged Width
    		 1cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 0.001l
    Packaged Height
    		 1cm

    Active Optocoupler

    Optocoupler CTR
    		 2000%
    Optocoupler Type
    		 Darlington
    Reverse Voltage
    		 480V
    Optocoupler Operating Current
    		 0.5mA
    Optocoupler CMR
    		 10 kV/µs

    Active Component

    Active marking code type
    		 Unique product marking
    Active mount type
    		 Through Hole
    Active number of legs
    		 8 count
    unique marking code
    		 6N138
    Active connector type
    		 Solder Legs

    Product Availability

    Availability
    		 Stocked item
