Infrared Phototransistor
Infrared Phototransistor

CAT. No. ZD1950

Infrared Phototransistor
product image thumb

Infrared Phototransistor

$1.85
Looks like a 5mm LED and has a clear transparent lens.Specifications: - NPN Collector-to-Emmiter Breakdown voltage: 30V - Emitter-to-Collect...
Available

Description

LED

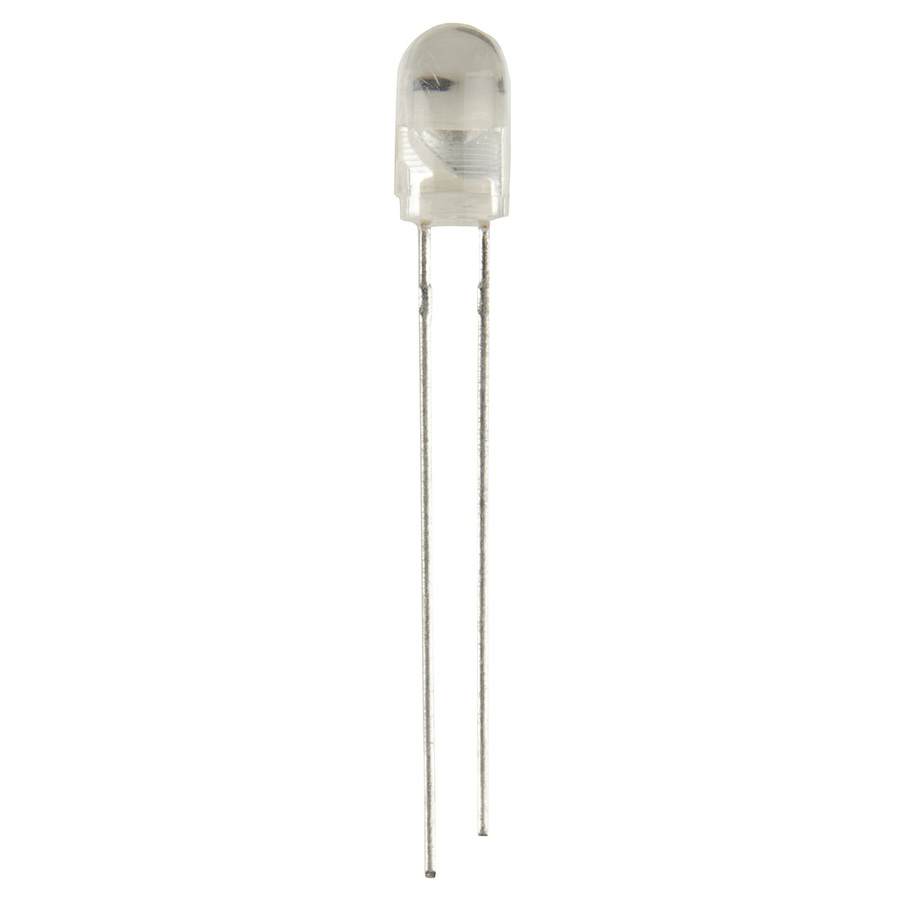

NPN phototransistor in clear 5mm transparent LED houing.



Features:

- NPN Collector-to-Emmiter Breakdown voltage: 30V

- Emitter-to-Collector Breakdown voltage: 5V

- Collector-to-Emmiter Saturation voltage: 0.8V Max

- Rise and Fall time: 3uS @ 5V(Vce)

- Breakdown voltage: 5V

- Collector: Short Leg

- Emitter: Long Leg


Handy Tip Frequency Response Curve

Normalised Frequency Response Curve of LED Capability

    Specifications

    Packaged Dimensions

    Packaged Length
    		 4cm
    Packaged Width
    		 0.5cm
    Packaged Weight
    		 0kg
    Packaged Volume
    		 0.001l
    Packaged Height
    		 0.5cm

    Active Optocoupler

    Power Dissipation
    		 100
    Dark Current
    		 100

    Product Availability

    Availability
    		 Stocked item

    Downloads

      Articles

    ZD1950-dataSheetMain.pdf
