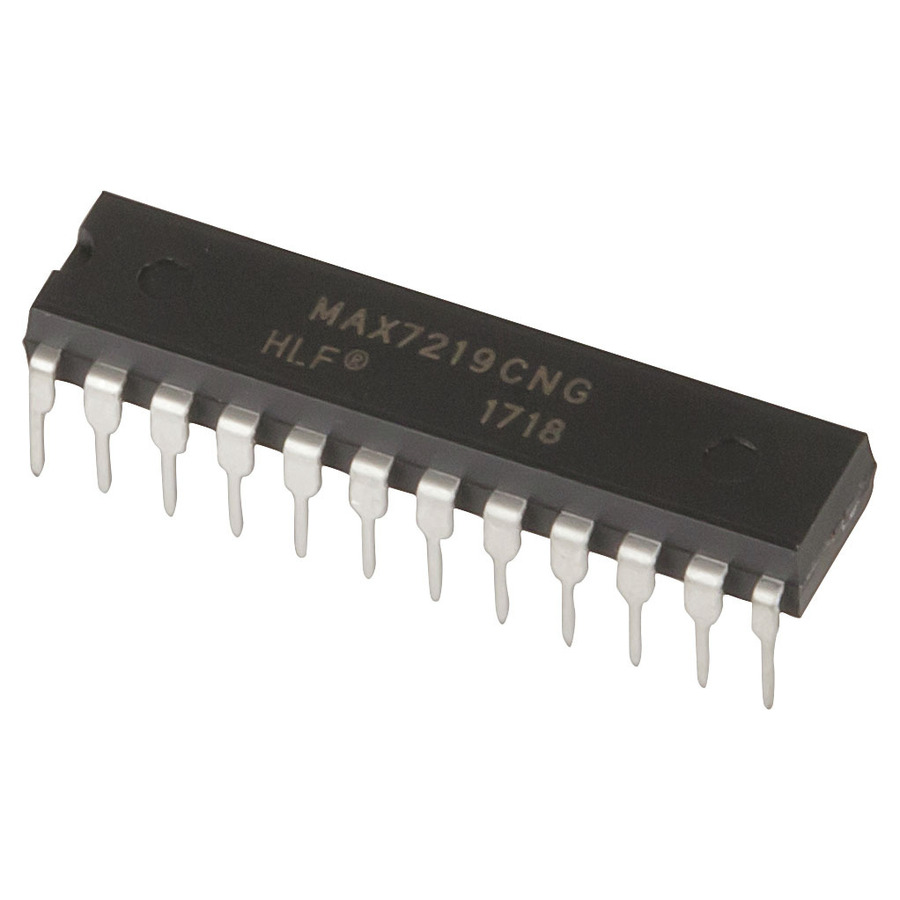

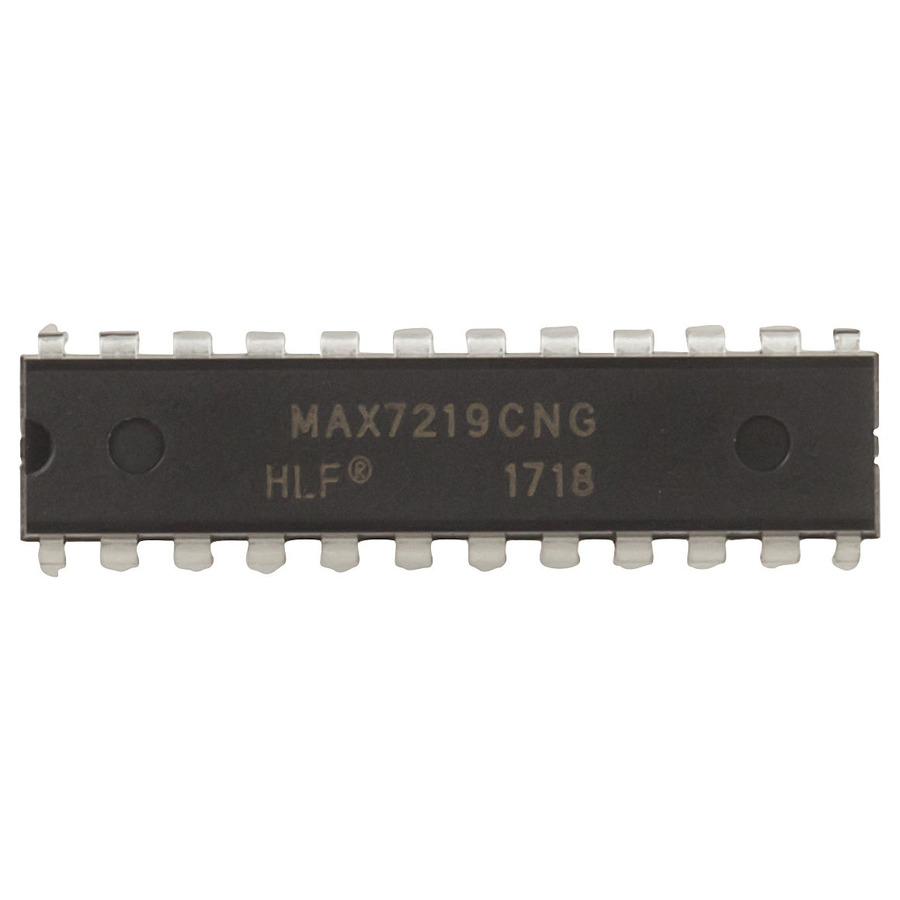

MAX7219 LED Matrix Driver IC

$4.95
An all-in-one LED matrix driver IC

Out of Stock

Description

The MAX7219 is an all-in-one LED Matrix driver suitable for controlling an 8x8 LED Matrix or even eight 7 segment displays (BCD decoding can be done on the chip too). This is the same IC that is on XC4499 and XC3714.



    Specifications

    Integrated Circuit (IC)

    IC Pin Count
    		 24 units

    Active Component

    Active marking code type
    		 Unique product marking
    Active mount type
    		 Through Hole
    Active number of legs
    		 24 count
    unique marking code
    		 MAX7219
    component package
    		 DIL
    Active connector type
    		 Solder Legs

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 2.5cm
    Packaged Width
    		 0.5cm
    Packaged Weight
    		 0.002kg
    Packaged Volume
    		 0.001l
    Packaged Height
    		 0.5cm

    Downloads

    ZK8825-dataSheetMain.pdf
