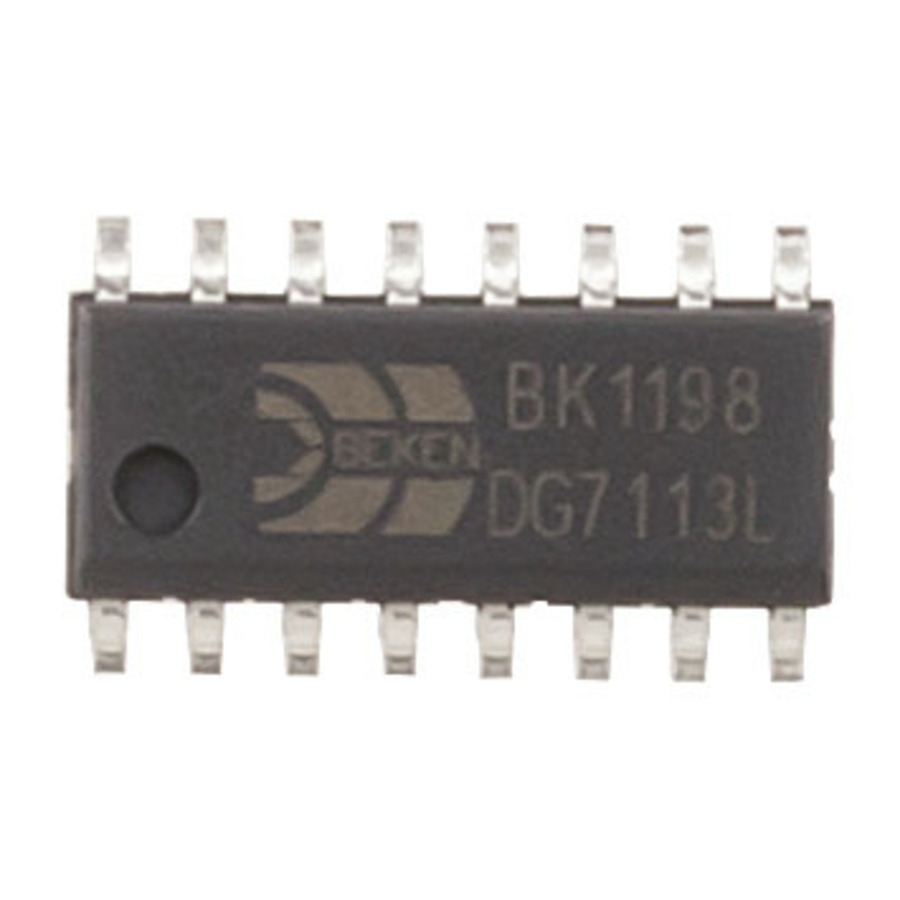

SMD IC BK1198 Radio Receiver
SMD IC BK1198 Radio Receiver

CAT. No. ZK8829

SMD IC BK1198 Radio Receiver
product image thumb

SMD IC BK1198 Radio Receiver

$7.95
AM, FM and shortwave in a 16 pin SOIC package.

Out of Stock

Description

We’ve come a long way from cat’s whiskers and triode valves to digital tuning. The ZK8829 is a digital radio IC that can pick up AM, FM and shortwave, and can be controlled by a potentiometer or resistor string. It’s the same IC as in our Cardboard Radio Kit. Comes in 16 pin SOIC package, PI6530 SMD-DIP adaptor is recommended for prototyping.

Features:
60 - 112MHz FM band
504 - 1750kHz AM band
2.2 - 22MHz Shortwave band
1.6V - 3.6V Supply voltage.

Handy Tip Basic Logic Functions

    Specifications

    Active Component

    Active marking code type
    		 Unique product marking
    Active mount type
    		 SMD
    Active number of legs
    		 16 count
    unique marking code
    		 BK1198
    component package
    		 DIL
    Active case colour
    		 Black
    Active connector type
    		 Solder Legs

    Packaged Dimensions

    Packaged Length
    		 1cm
    Packaged Width
    		 0.3cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 1.5E-4l
    Packaged Height
    		 0.5cm

    Downloads

      Articles

    ZK8829-dataSheetMain.pdf
