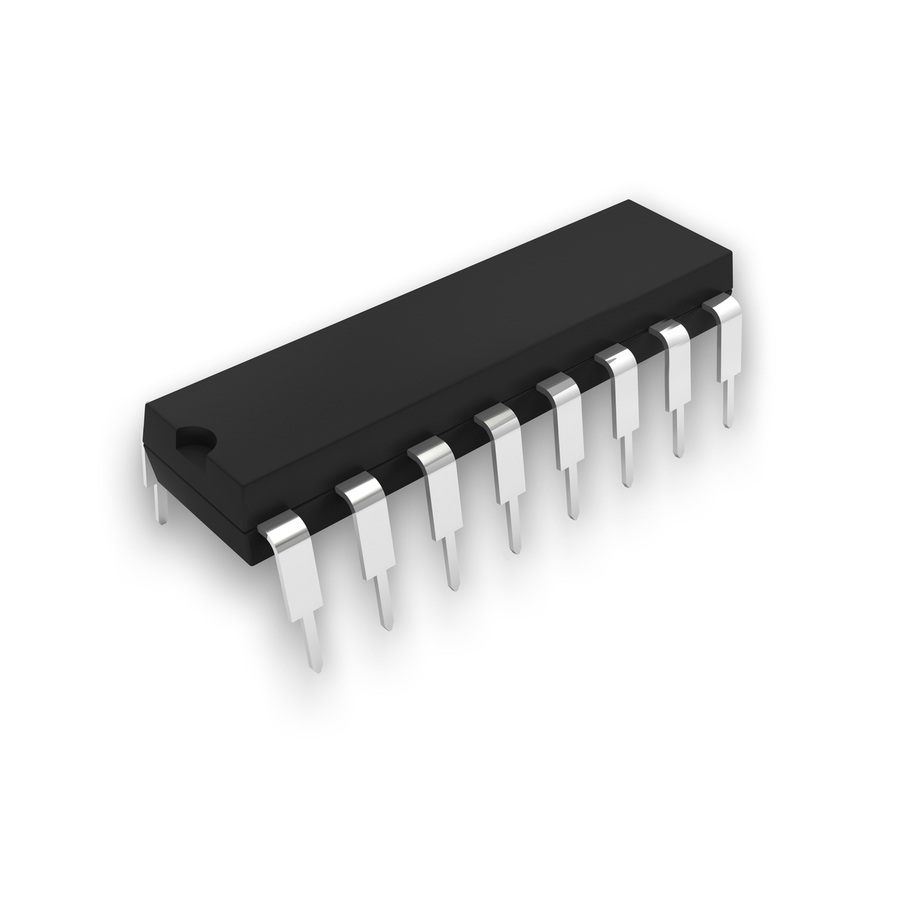

ULN2003 16-Pin Darlington Transistor Array IC
ULN2003 16-Pin Darlington Transistor Array IC

CAT. No. ZK8855

ULN2003 16-Pin Darlington Transistor Array IC
product image thumb

ULN2003 16-Pin Darlington Transistor Array IC

$5.25
ULN2003N 16 Pin Darlington Transistor Array
Available

Description

ULN2003N 16 Pin Darlington transistor array (5V TTL, CMOS)

Handy Tip Basic Logic Functions

    Specifications

    Packaged Dimensions

    Packaged Length
    		 2cm
    Packaged Width
    		 1cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 0.002l
    Packaged Height
    		 1cm

    Active Component

    Active marking code type
    		 Unique product marking
    Active mount type
    		 Through Hole
    Active number of legs
    		 16 count
    unique marking code
    		 ULN2003N
    component package
    		 DIL
    Active case colour
    		 Black
    Active connector type
    		 Solder Legs

    Product Availability

    Availability
    		 Stocked item

    Downloads

      Articles

    ZK8855-dataSheetMain.pdf
