CAT. No. ZK8869

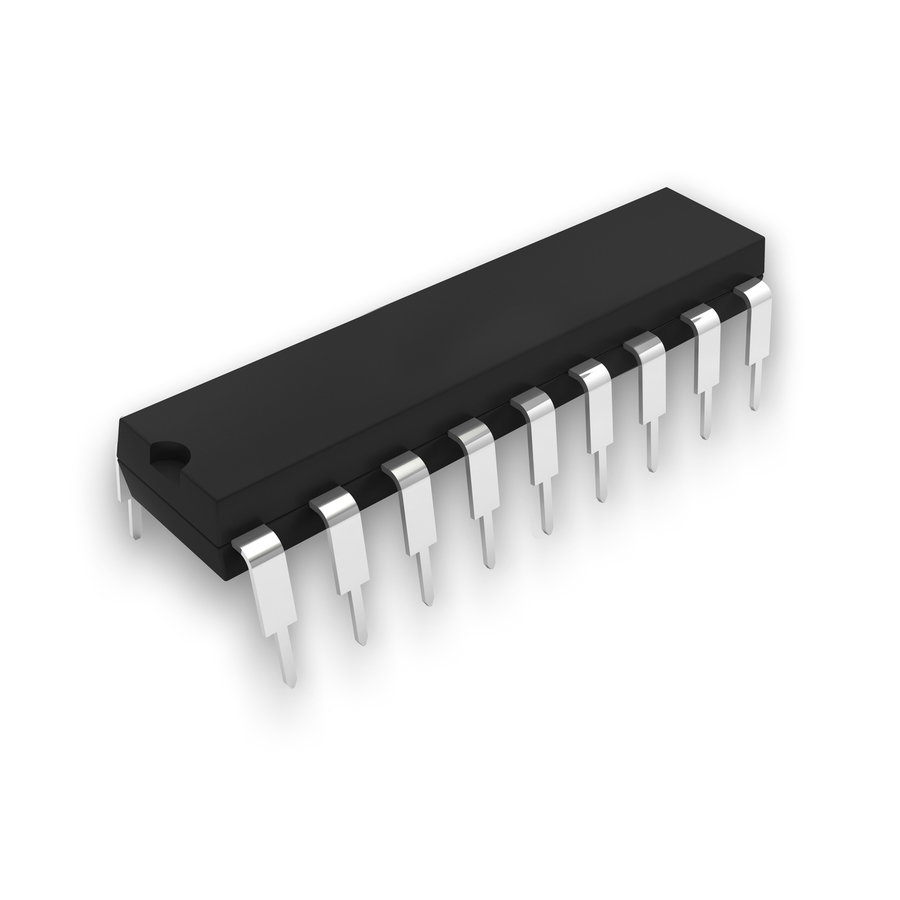

MCP23008 8-Bit Expander with Serial Interface DIP18
$4.95
Uses 3 I2C pins to give 8 general purpose input/output pins. - Low Standby Current - Configurable Interrupt Output
Out of Stock
Description
This IC will allow you to expand the number of input and output pins on your microcontroller. It uses 3 I2C pins to give 8 general purpose input/output pins. It even includes a configurable interrupt output that can be set as Active-high, Active-low or open-drain.
44 page data sheet available for download.
Features:
• 1.8 - 5.5VDC Input
• Low standby current (less than 1µA)
• 8 Configurable Input/Output Pins
• 1.7MHz High Speed I2C Interface
• External Reset Input
Specifications
| IC Type | Multiplexer / Demultiplexer |
| IC supply voltage | 5.5V |
| Active marking code type | Printed |
| Active mount type | Through Hole |
| minimum temperature | -40°C |
| Active number of legs | 18 count |
| unique marking code | MCP23008-E/P |
| max temperature | 125°C |
| component package | DIL |
| Active case colour | Black |
| Active connector type | Solder Legs |
| Weight | 1.3g |
| Availability | Stocked item |
| Packaged Length | 2.3cm |
| Packaged Width | 0.8cm |
| Packaged Weight | 0.002kg |
| Packaged Volume | 9.2E-4l |
| Packaged Height | 0.5cm |
